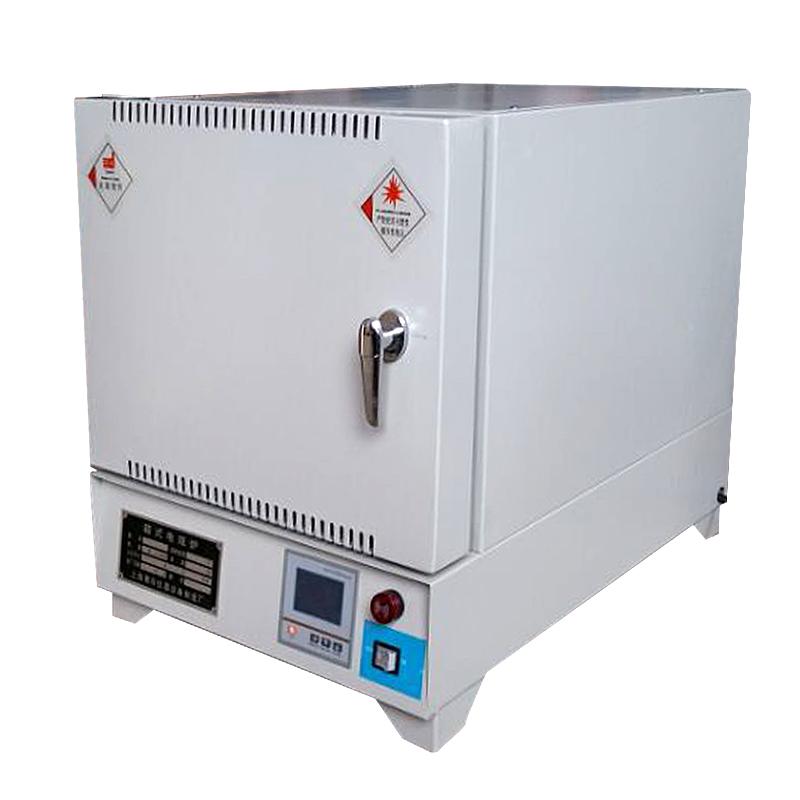

BOZHEN BZ-12-12P program temperature control muffle furnace 30-stage program programming 1200 ℃ high-temperature chamber furnace

BZ-12-12P

Program temperature control muffle furnace

With 30 program programming ability, PID self-tuning control technology to ensure temperature control accuracy of +/- 2 ℃, built-in two-level over-temperature protection device, support automatic heating thermostatic, suitable for complex experimental process requirements.

Introduction

Bozhen BZ-12-12P program temperature control muffle furnace adopts overall design and humanized menu design, and adopts LCD program control instrument, high brightness, wide window digital display, clear and intuitive display value. Industrial PID self-tuning control technology, with 30-segment program programming settings, suitable for complex experimental processes, microcomputer intelligent control, solves the disadvantages of temperature overshoot, etc., and the temperature control effect is very good. After setting the temperature, the instrument automatically controls the heating, constant temperature, accurate and stable temperature control. Fault sound and light alarm, over temperature sound and light alarm, and automatically cut off the heating output.

Overview

Bozhen BZ-12-12P program temperature control muffle furnace is a periodic operation type electric furnace. Used for sintering, heating and heat treatment in laboratories of coal, electric power, chemical industry, building materials, metallurgy, scientific research and other units as well as universities and colleges.

plan

Furnace structure and materials

Furnace shell material: the outer box shell is made of high-quality cold plate, which is treated with phosphoric acid film salt and sprayed at high temperature, and the color is computer gray;

Furnace material: high-aluminum liner is adopted, which has good wear resistance and heats up, down, left, and right sides of the high-temperature furnace;

Heat insulation method: insulation brick and insulation cotton;

Temperature measuring port: The thermocouple enters from the upper rear of the furnace body;

Binding post: The heating furnace wire binding post is located at the rear and lower part of the furnace body;

Controller: Located under the furnace body, with a built-in control system, the compensation wire is connected to the furnace body ;

Heating element: Nichrome wire;

Machine weight: about 60KG;

Standard packing: wooden case.

temperature control system

Temperature measurement: K-grading nickel-chromium-nickel-silicon thermocouple;

Control system: PID adjustment, display accuracy 1°C;

Complete set of electrical appliances: use brand contactors, cooling fans, solid state relays;

Over-temperature protection: Built-in secondary over-temperature protection device, double insurance. Over-temperature alarm, over-temperature cut-off;

Operation mode: full-scale programmable setting, 30-segment program setting, automatic control of heating and constant temperature.

Packing list：host X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
