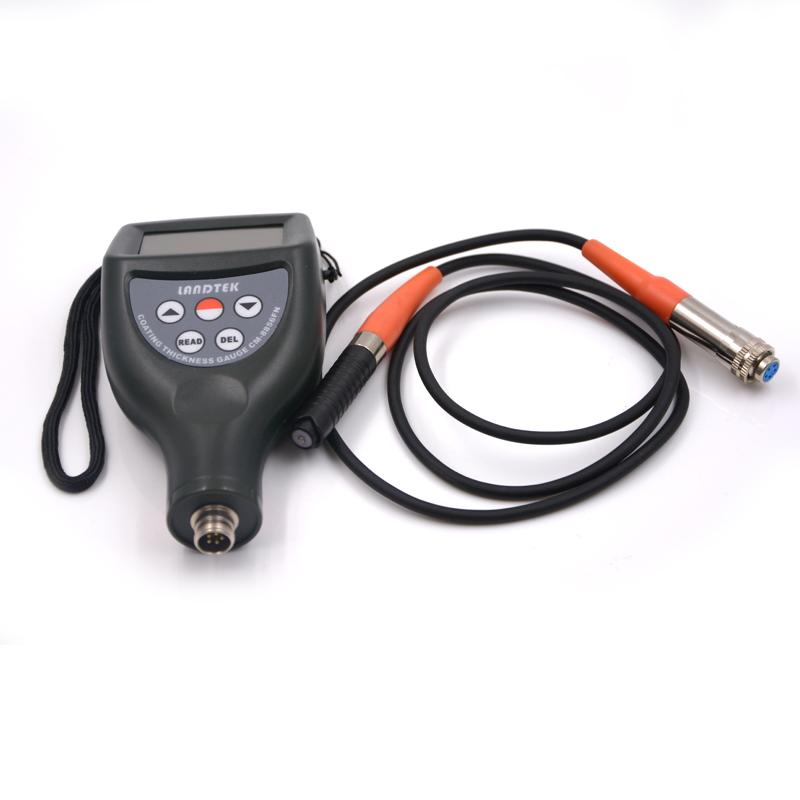

LANDTEK CM8856 (Bluetooth) platings Thickness Gauge, built-in Bluetooth transmitter function

CM8856 (Bluetooth)

Coating Thickness Gauge

Introduction

LANDTEK CM8856 Electroplating Thickness Gauge is a battery-powered portable thickness measuring instrument. It adopts the principle of magnetic induction and eddy current, and can automatically identify the measurement substrate. The measurement method of CM8856 coating Thickness Gauge complies with international standards ISO2178, ISO2360 and national standards GB4956 and GB4957.

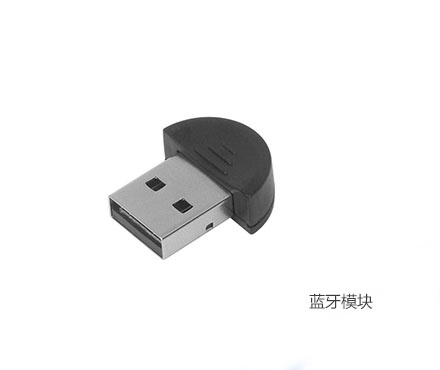

This CM8856 electroplating Thickness Gauge has a built-in Bluetooth transmission function, and the standard Bluetooth module can realize Bluetooth data transmission, which is simple and fast.

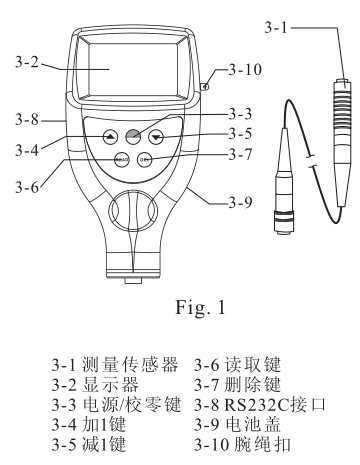

Product Structure

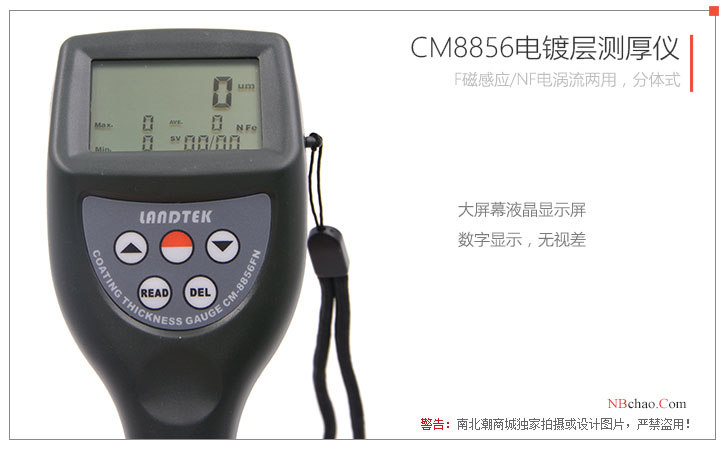

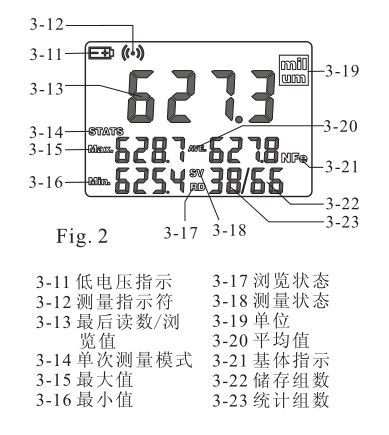

Display parameter diagram

Features and advantages

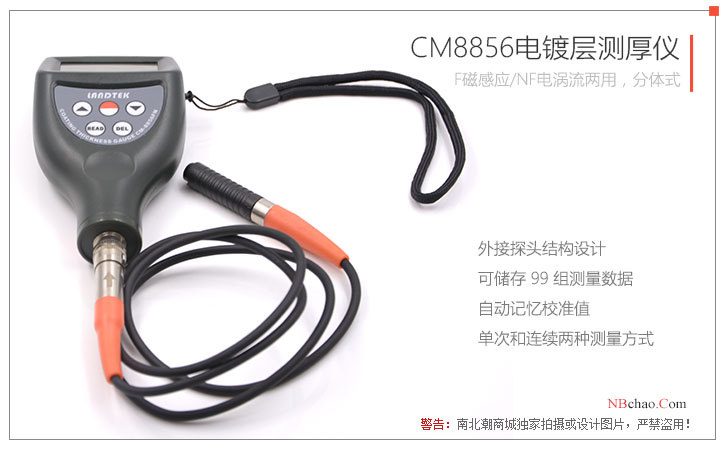

* CM8856 electroplating Thickness Gauge can store 99 sets of measurement data; realize the statistical function of the instrument by measuring the average value, maximum value and minimum value.

* Iron-based and non-ferrous-based dual-purpose plating Thickness Gauge.

* There are two optional measurement methods: single and continuous.

* Metric/Imperial unit conversion.

* CM8856 electroplating Thickness Gauge has functions such as manual shutdown, automatic shutdown and underVoltage prompt.

* Automatically memorize the calibration value and automatically identify the material of the measured substrate.

* There is a buzzer sound during operation, but the buzzer does not sound during continuous measurement.

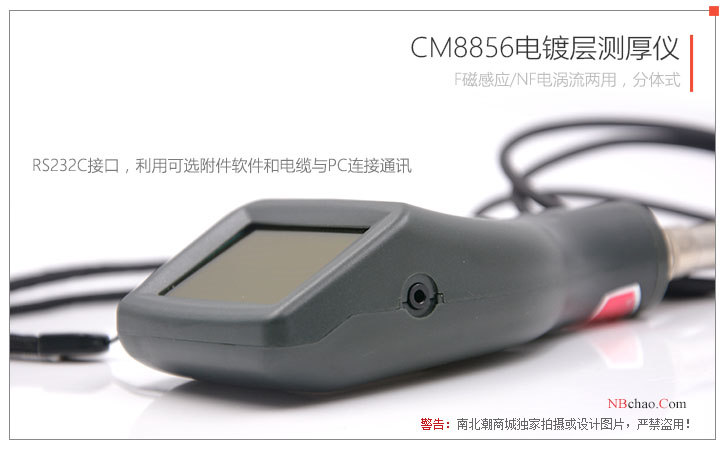

* CM8856 Coating Thickness Gauge can communicate with PC computer by using optional accessory RS232C software and cable to realize functions of data collection, processing, analysis and printing .

* Optional Bluetooth™ data output option is also available.

* The integral instrument is suitable for one-handed operation, with a "big probe", and a large contact surface for better stability, and the results are accurate and repeatable.

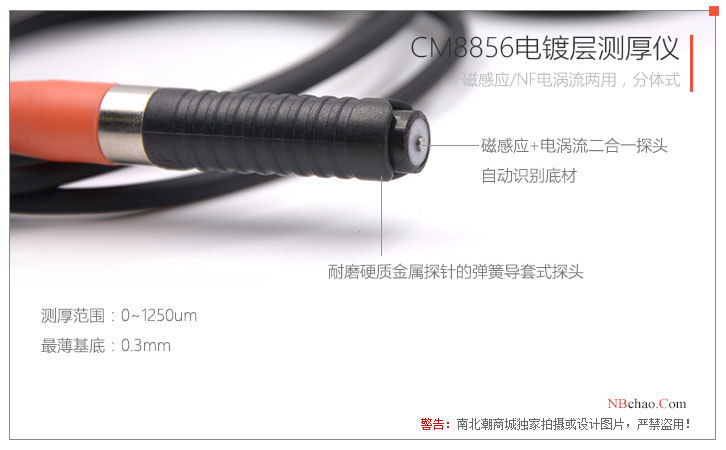

*  The spring guide sleeve probe with wear-resistant hard metal probe can not only measure on hard or rough surfaces, but also ensure that the probe has constant tight force and stable sampling value.

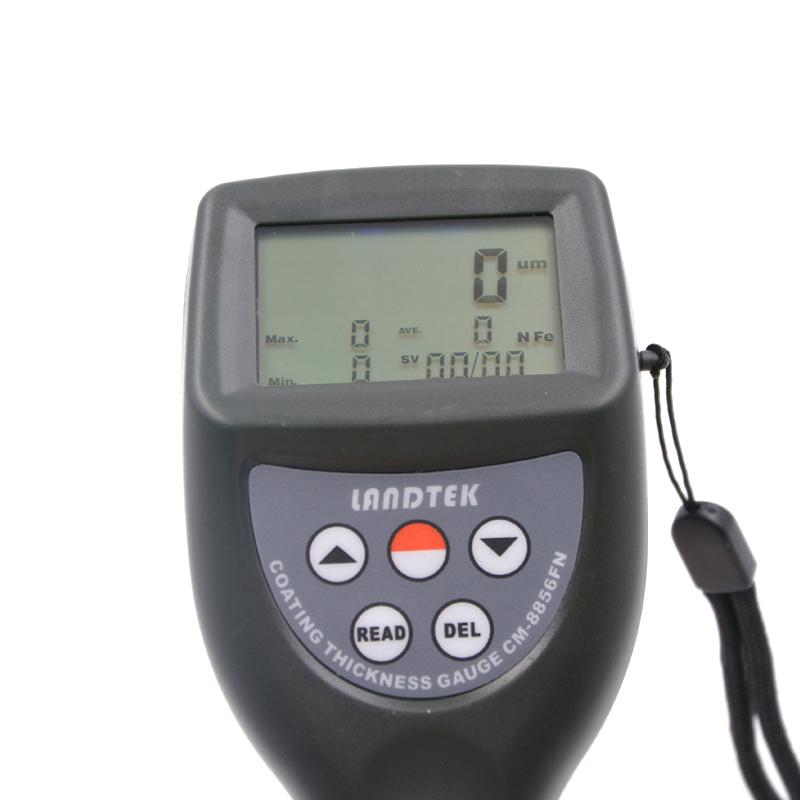

Pictures

Applications

Surface electroplating layer Thickness Gauge CM8856 uses a magnetic sensor to measure non-ferromagnetic coatings and coatings on ferromagnetic metal substrates such as steel and iron, such as: paint, powder, plastic, rubber, synthetic materials, phosphating layer, chromium, zinc , lead, aluminum, tin, cadmium, porcelain, enamel, oxide layer, etc. Use eddy current sensors to measure enamel, rubber, paint, plastic layers, etc. on copper, aluminum, zinc, tin, etc. substrates. Widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields.

Features

Surface coating Thickness Gauge CM8856 can measure the thickness of the non-magnetic coating on the magnetic conductive object and the non-conductive coating on the non-magnetic metal substrate.

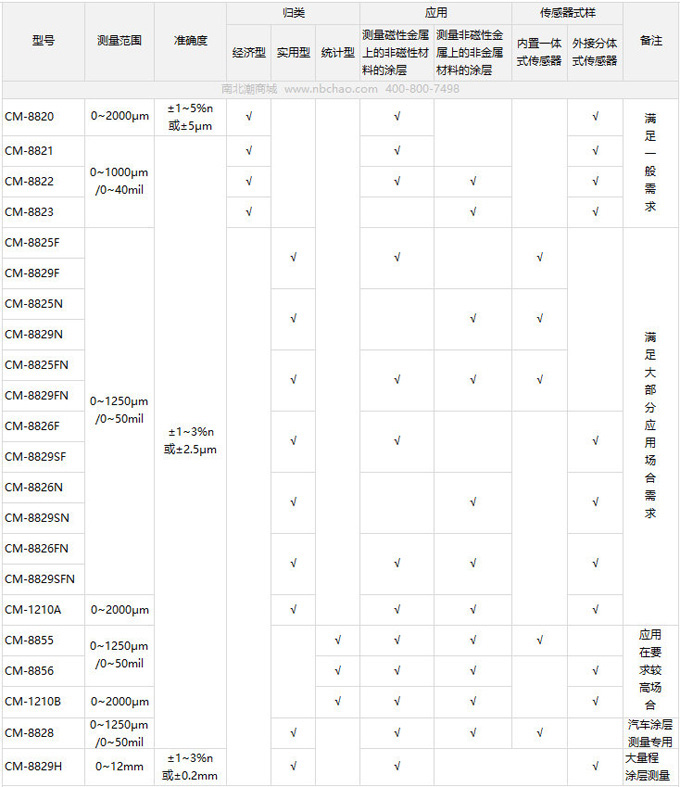

LANDTEK Surface Coating Thickness Gauge Selection List

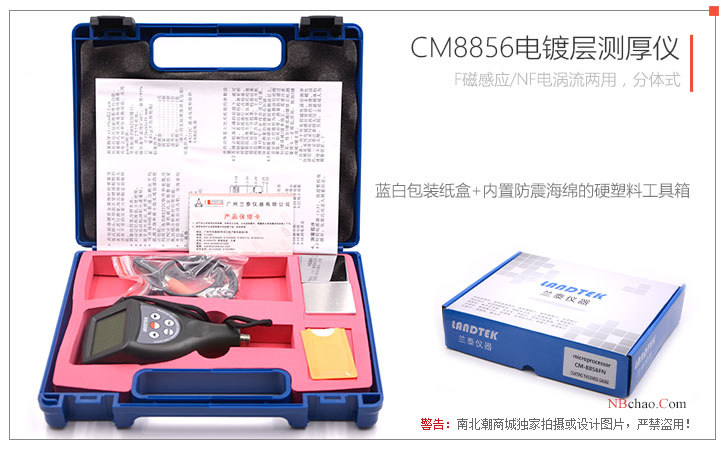

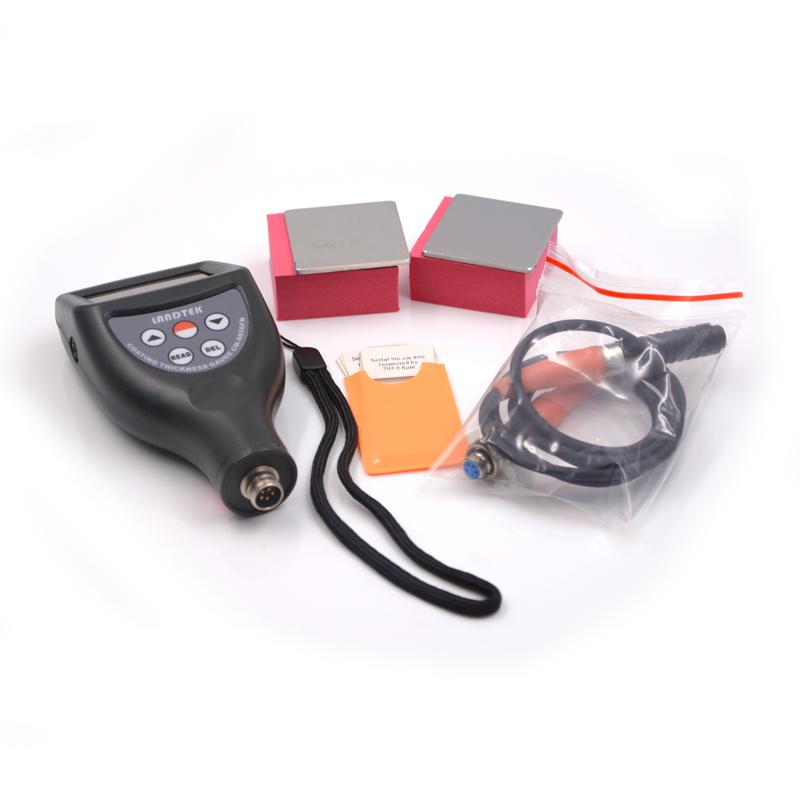

Packing list：Host x1, reference block (iron/aluminum) CTG-BS each x1, calibrated diaphragm CTG-CFx4, measurement Sensors x1, Bluetooth module x1, CD x1, portable case x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
