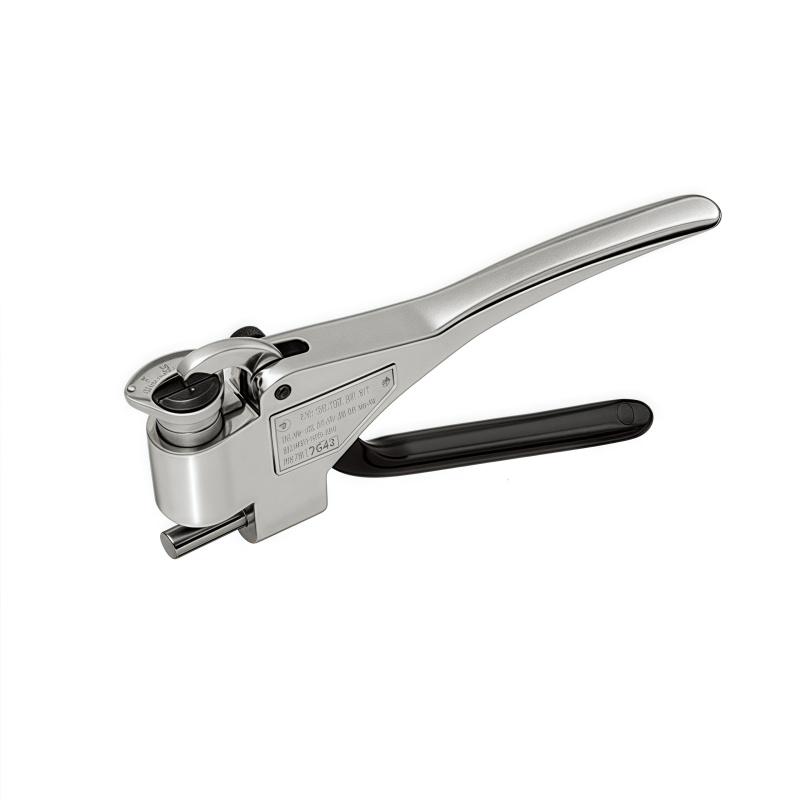

ShenyangTX W-B92 Webster Hardness Tester (stainless steel) for measurement austenitic stainless steel and soft steel plate strip

W-B92

Wechsler Hardness Tester

Overview of W-B92 Webster Hardness Tester

Shenyang Tianxing W-B92 Webster Hardness Tester is a mechanical Hardness Tester with a simple structure. It displays the tested hardness value through a pointer. It is very simple and convenient to operate. It is suitable for simple hardness testing in laboratories and production sites.

Shenyang Tianxing Webster Hardness Tester is the preferred instrument for testing the mechanical properties of stainless steel plates and strips.  The W-B92 Webster Hardness Tester is an instrument that can quickly test the hardness of stainless steel on site. Easy to use, only one card is needed, the hardness value can be read directly, high efficiency and good reliability.

Features

1. Indenter: The indenter is made of imported special steel materials and new technology. It has high hardness, good toughness, long life and good interchangeability. The outer packaging imported from Germany provides comprehensive protection for the pressure needle.

2. Pointer assembly: High-strength pointer, which is not easy to bend or deform after long-term use or incorrect operation.

3. Surface window: High-strength, high-toughness surface window glass is not easy to break after being impacted.

4. Handle: Forged aluminum alloy material, anodized upper handle, beautiful, wear-resistant and pollution-resistant.

5. Hardness block: Use a standard Rockwell Hardness Tester and carry out the determination in strict accordance with the measurement and verification procedures. The laser etched serial number and hardness value can be traced within the validity period. Surface roughness and flatness meet regulatory requirements.

6. High quality: Fine parts processing, precise machine assembly, and strict quality inspection ensure the high quality of the instrument.

7. Good stability: the full-scale point is stable, the calibration point is stable, and the pointer does not "crawl".

8. Convenient conversion: Through the conversion table attached to the product manual or the "Hardness Conversion" mobile application, the Webster hardness value can be converted into Vickers, Rockwell, Brinell and other hardness values.

9. Portability: High-quality portable instrument case and well-fitting buffer sponge provide portability for the W-B92 Webster Hardness Tester while also protecting the W-B92 Webster Hardness Tester as much as possible .

Application

The W-B92 Webster Hardness Tester is used to quickly detect the hardness of austenitic stainless steel and mild steel plates and strips. It is particularly suitable for fast, non-destructive piece-by-piece conformity inspection of batches of products at production sites, sales sites or construction sites.

Standards compliant

 â—American Society for Materials Standard ASTM B647 "Standard Test Method for Indentation Hardness of Aluminum Alloys Using a Webster Hardness Tester"

 â—Nonferrous metal industry standard YS/T 471-2004 "Webster Hardness test method for copper and copper alloys"

 â—National Metrology Verification Regulations JJG944-2013 "Metal Webster Hardness Tester"

Standard configuration

Main unit, Wehrmer hardness block, small screwdriver, spare indenter, calibration wrench, instrument case

Common accessories

Indenter, Wehrmer hardness block, watch window glass

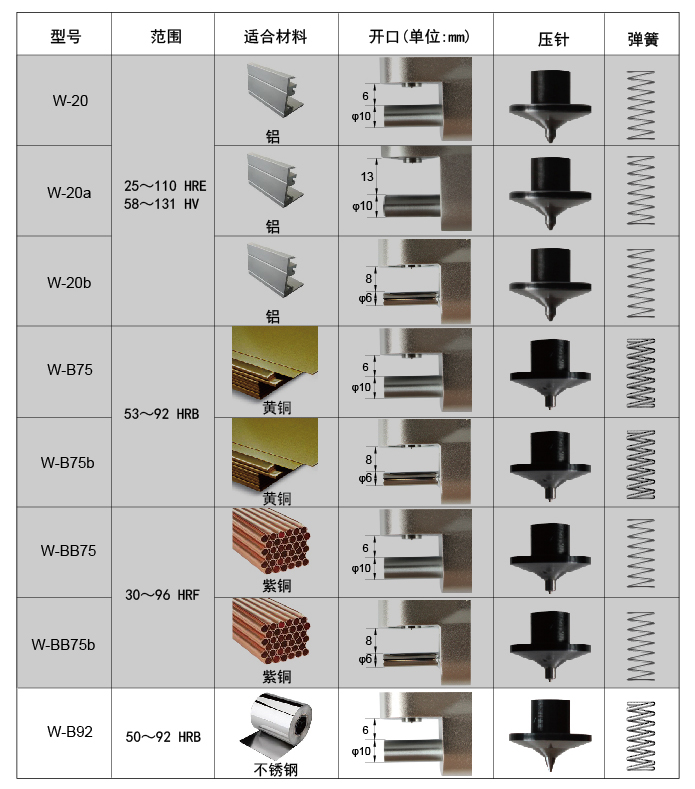

Weschler Hardness Tester model comparison list

Packing list：Host x1, Wechsler hardness block x1, spare pressure needle x1, correction wrench x1, small screw driver x1, instrument box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
