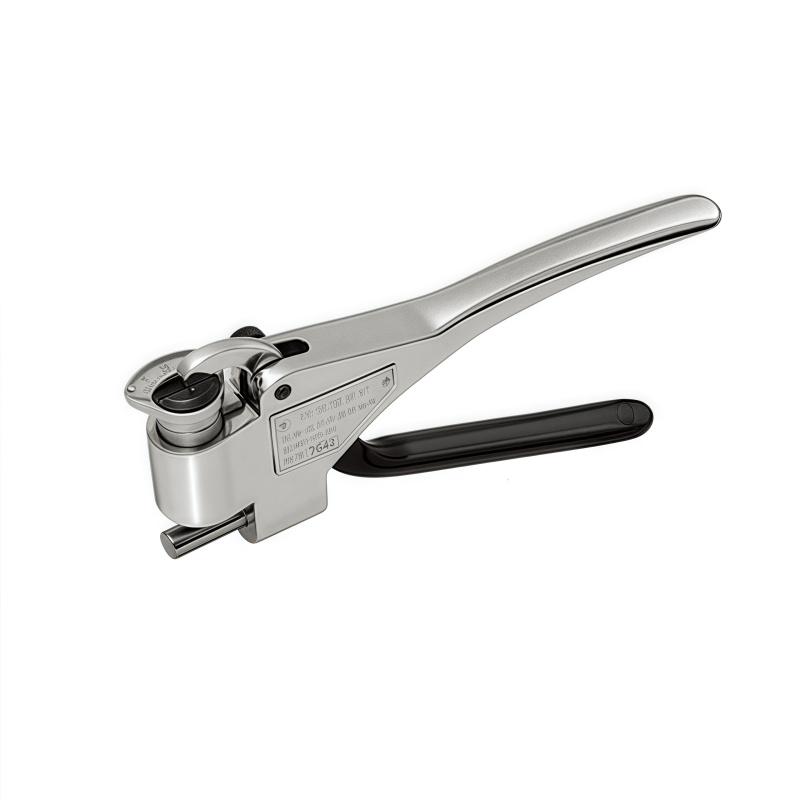

ShenyangTX W-B75 durometer for brass tube and brass belt

W-B75

Wechsler Hardness Tester

Introduction to Weschler Hardness Tester

Shenyang Tianxing W-B75 series copper alloy Weschler Hardness Tester is a special hardness testing instrument for testing the mechanical properties of brass alloys. The measurement range is 0-20HW. The W-B75 series copper alloy Webster Hardness Tester is divided into two models: W-B75 type Webster Hardness Tester is mainly used for brass tubes and brass strips , and W-B75b type is used for testing brass thin tubes with a minimum inner diameter of 6mm. .

The W-B75 series copper alloy Westerell Hardness Tester can quickly test the hardness of brass on site. It is easy to use and only requires one card. The hardness value can be read directly. It has high efficiency and good reliability. It complies with Chinese nonferrous standard YS/T471-2000.

Application

Shenyang Tianxing W-B75 series copper alloy Weschler Hardness Tester is used to quickly detect the hardness of copper alloy pipes, plates and strips. It is particularly suitable for fast, non-destructive piece-by-piece inspection of batches of products at the production site, sales site or acceptance site.

Features

1. Indenter: The indenter is made of imported special steel materials and new technology. It has high hardness, good toughness, long life and good interchangeability. The outer packaging imported from Germany provides comprehensive protection for the pressure needle.

2. Pointer assembly: High-strength pointer, which is not easy to bend or deform after long-term use or incorrect operation.

3. Surface window: High-strength, high-toughness surface window glass is not easy to break after being impacted.

4. Handle: Forged aluminum alloy material, anodized upper handle, beautiful, wear-resistant and pollution-resistant.

5. Hardness block: Use a standard Rockwell Hardness Tester and carry out the determination in strict accordance with the measurement and verification procedures. The laser etched serial number and hardness value can be traced within the validity period. Surface roughness and flatness meet regulatory requirements.

6. High quality: Fine parts processing, precise machine assembly, and strict quality inspection ensure the high quality of the instrument.

7. Good stability: the full-scale point is stable, the calibration point is stable, and the pointer does not "crawl".

8. Convenient conversion: Through the conversion table attached to the product manual or the "Hardness Conversion" mobile application, the Webster hardness value can be converted into Vickers, Rockwell, Brinell and other hardness values.

9. Portability: High-quality portable instrument case and well-fitting buffer sponge provide portability for the W-B75 series Webster Hardness Tester while also protecting the W-B75 series Webster Hardness Tester as much as possible.

Standards compliant

● Non-ferrous metal industry standard YS/T 471-2004 "Webster Hardness Test Method for Copper and Copper Alloys"

●National Metrology Verification Regulations JJG944-2013 "Metal Webster Hardness Tester"

Standard configuration

Main unit, Wehrmer hardness block, small screwdriver, spare indenter, calibration wrench, instrument case

Common accessories

Indenter, Wehrmer hardness block, watch window glass

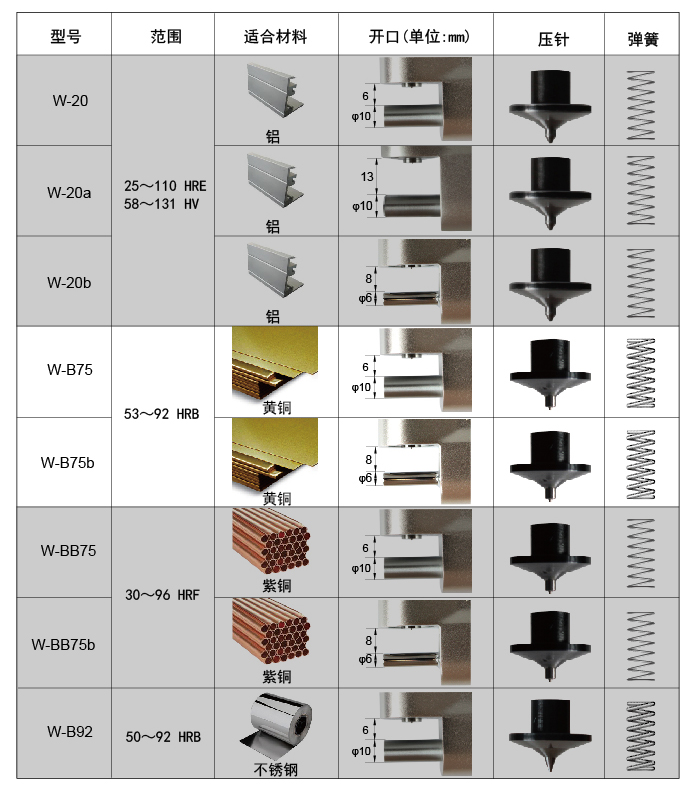

Weschler Hardness Tester model comparison list

Packing list：Host x1, Wechsler hardness block x1, spare pressure needle x1, correction wrench x1, small screw driver x1, instrument box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
