Japan OSP-50/60 Applicator rod WFT 50μm length 60mm

SE
Formed, wet film thickness 50μm, diameter 10mm, Total length 60mm, application width 60mm, grip width 0, material 304 stainless steel.
$115.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

OSP OSP-50/60 coating rodSPEC

OSP OSP-50/60 coating rodDetails

OSP OSP-50/60 coating rodPacking list

SKU
NB000078
Production process
Formed
WFT
50µm
diameter
10mm
Total length
60mm
Application width
60mm
Grip width
0
material
304 stainless steel
OSP-50/60
coating rod
Formed, wet film thickness 50μm, diameter 10mm, Total length 60mm, application width 60mm, grip width 0, material 304 stainless steel.
Japan OSP-50/60 Applicator rod WFT 50μm length 60mm Picture

The Japanese OSP-50 coating stick has three lengths: 60mm, 250mm, and 400mm. What is the difference between the three, and which one should you choose? Of course, this question should be chosen according to the actual situation of your own experiment, but the coating width of the three is different, they are 60mm, 250mm, and 300mm, respectively. The two ends of L60 and L250 have no handle part, which can be purchased separately. The handle is used for supporting the coating. There are 50mm handle parts at both ends of the L400 coating rod, so no handle is required. The other parameters are the same.

OSP-50 extrusion coating rod animation operation video

Japanese OSP Coating Rod Full Series Chart

OSP-50 Extrusion Coating Rod Product Specifications

Features and advantages of OSP-50 extrusion coating rod

OSP-50 Coating Rod Groove Shape

OSP-50 coating rod with high coating precision

Applications of OSP-50 Extrusion Coating Rod

Why choose NBCHAO Mall

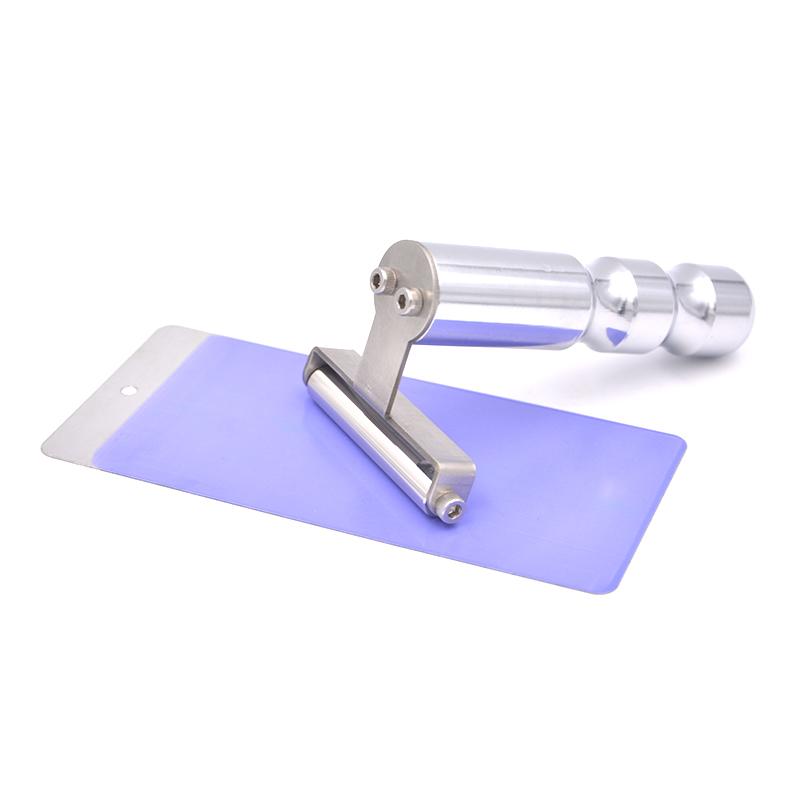

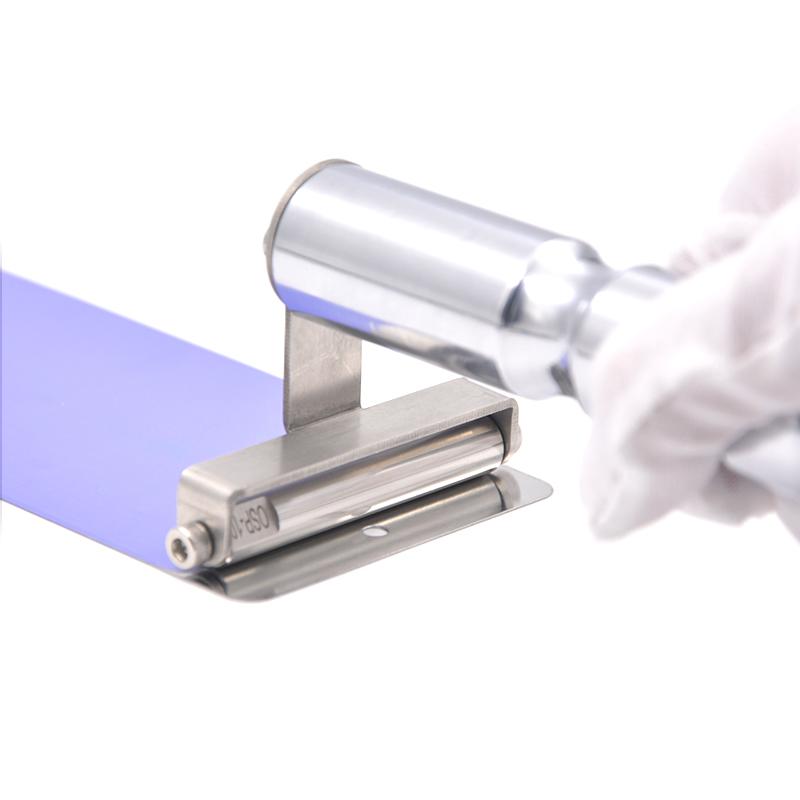

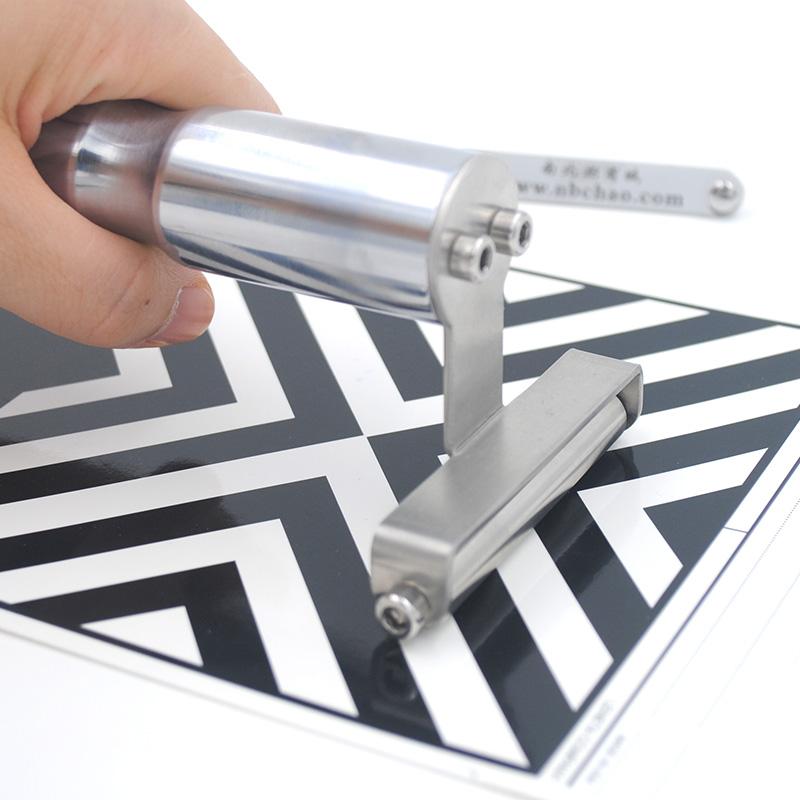

Real shot of OSP-50 extrusion coating rod 1

Real shot of OSP-50 extrusion coating rod 2

The real picture of the handle of OSP-50 extrusion coating rod

Optional

Wire Rod Cleaning Machine

LABOratory automatic coating machine

Coating film test jamRK imprint bed

Note: Click on the accessory picture to view Details.

FAQ
QWhat are the options for the length of the coating rod and what are their main differences?
A The OSP-50 Applicator rod is available in three lengths: 60mm, 250mm, and 400mm. The main difference is the application width: L60 is 60mm, L250 is 250mm, and L400 is 300mm. L60 and L250 have no handles at both ends, and another handle is required; L400 has 50mm handles at both ends, no handle is required. Miscellaneous parameters such as production process (formed), wet film thickness (50μm), diameter (10mm), and material (304 stainless steel) are the same.
QWhat are the characteristics of the handle design of the coating rod?
A There is no handle part at both ends of the L60 and L250 coating rods, and another handle is required to support the operation when using; while the L400 coating rod has a 50mm handle part at both ends, which does not need to be equipped with an additional handle, and can be used directly by hand, which is more convenient in design.
Q60Mm Spreader width, 50um film thickness Mayer Rods?
A Hello, yes, OSP-50/60.
QDo you have the Mayer Rods involved in ASTMD823?
A The OSP-50/60 Mayer Rods will do.
QSpreader and swirl/spin film, pull film what is the difference? Which is good?
A Swirl/spin film coating can not cover the surface of the substrate Glass, Coating is thrown out of the filamentous film and uneven; pull film uniformity is good, Glass substrate on both sides, transparency is general, film thickness is not easy to control; Spreader Glass surface uniformly covered, good transparency, Coating less, and can control the film thickness well.
