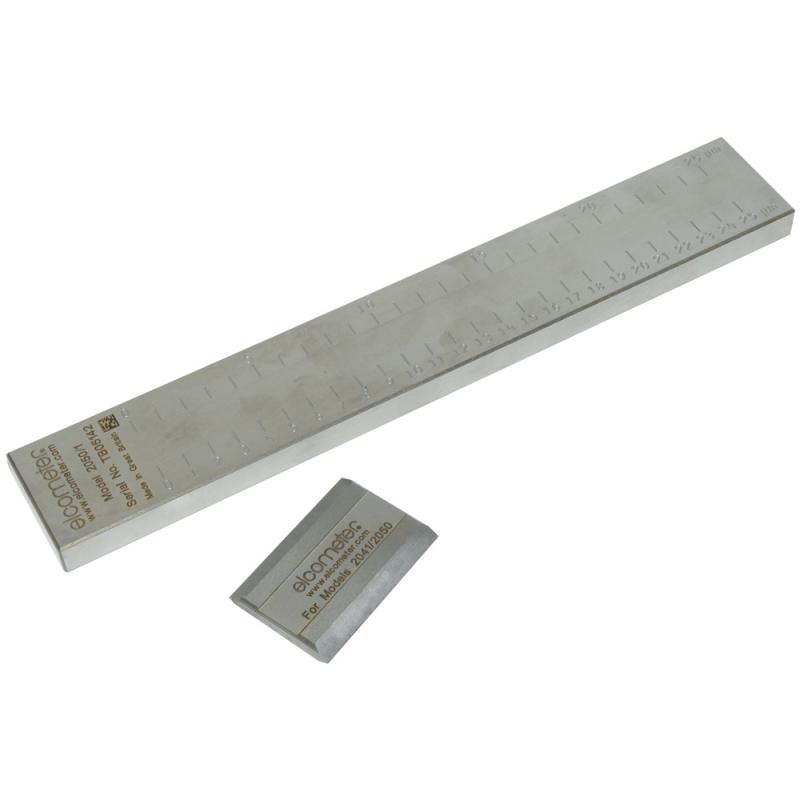

UK Elcometer 2050/5 high-precision fineness grindometer single-channe
UK Elcometer 2050/5 fineness grindometer is a single-channe high-precision fineness grindometer, Measurement range is 0~100μm, Elcometer 2050/5 accuracy is +/- 1μm.
Model：
Elcometer 2050/5
Elcometer
Similar products
-
TRUIT TR 1201/100 single-channe Fineness gauge 0~100μm$ 165.00SE -
TQC VF2107 single-channe grinding Fineness of Grinding Gauge 0~100μm with calibrated certificate$ 1044.00SE -
MODERNER QXD-100 single-channe Fineness meter, corrosion-resistant stainless steel 0~100μm range -
Pushen QXD-100um single-channe Lithium Battery Paste Fineness of Ground Gauge 0-100μm$ 161.00SE -
YONGLIDA QXP0-100 ISO Grindometer 10 μm scale$ 164.00SE
Elcometer Elcometer 2050/5 High-precision fineness grindometerSPEC
Elcometer Elcometer 2050/5 High-precision fineness grindometerDetails
Elcometer Elcometer 2050/5 High-precision fineness grindometerPacking list
- SKU
- NB007800
- Scraper type
- single-channe
- Number of grooves
- 1
- range
- 0~100μm
- Scale unit
- μm、Mils
- Accuracy
- ±1μm
- scraper material
- stainless steel
- Scraper size
- 250*40*15mm
- Groove size
- 12*200mm
- Drawdown blade material
- stainless steel
- Net Weight
- 1.45kg
Elcometer 2050/5
High-precision fineness grindometer
Introduction
Single-tank high-precision fineness of grinding plates for determining particle size and fineness of grinding for a wide range of materials such as paints, pigments, inks, coatings, chocolates and other similar products.
All are made of hardened stainless steel with a scale on the upper surface in microns and an accuracy of ±1 μm (0.04 mil). The groove width is 12mm (0.47"), and the groove length is 200mm (7.87").This high precisionFineness of grinding platesIt is a single-tank design.
Technical parameters
| Part number | Model | range | scale | certificate | |||
| metric system | Inch | µm | mils | µm | mils | ||
| K0002050M001 | K0US2050M001 | elcometer 2050/1 | 0-25 | 0-1 | 1 | 0.05 | ο |
| K0002050M002 | K0US2050M002 | Elcometer 2050/2 | 0-50 | 0-2 | 2 | 0.1 | ο |
| K0002050M005 | K0US2050M005 | Elcometer 2050/5 | 0-100 | 0-4 | 5 | 0.2 | ο |
| K0002050M008 | K0US2050M008 | Elcometer 2050/8 | 0-250 | 0-10 | 12.5 | 0.5 | ο |
| error | ±1µm (0.04mil) | ||||||
| size | 250 x 40 x 15mm (9.8 x 1.6 x 0.6”) | ||||||
| weight | 1.45kg (3.2lb) | ||||||
| Packing list | Elcometer 2050 High Precision Fineness of Grind Plates, Scrapers, Plastic Sleeves and Operating Manual | ||||||
FAQ
QDoes the fineness grindometer meet the specifications of JB/T9385?
A
Elcometer 2050/5 fineness grindometer
Standard
