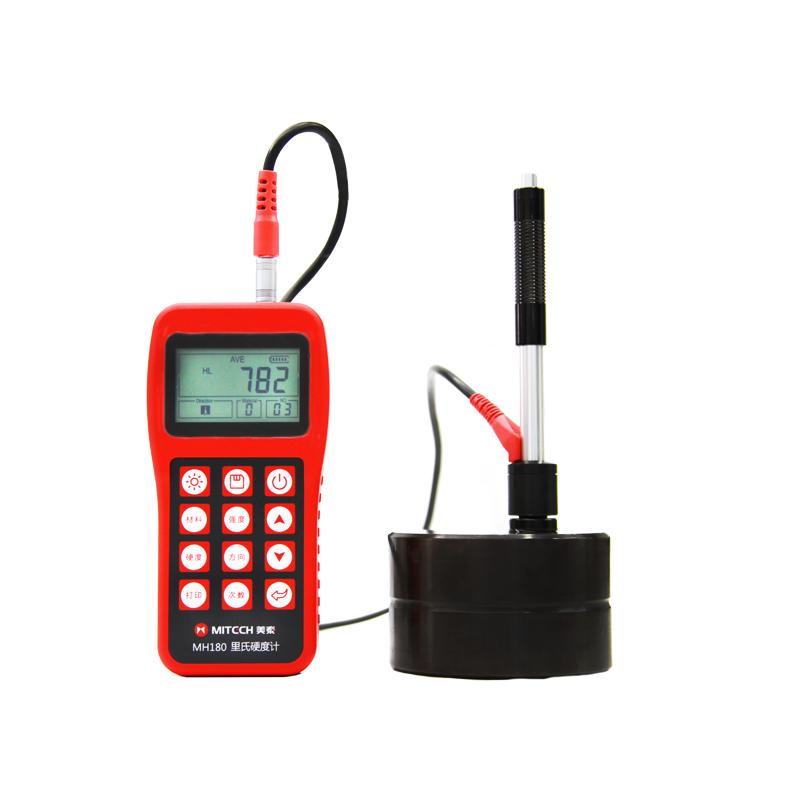

MITECH MH180 Portable Leeb Hardness Tester Manual adjustment of measurement direction

MH180

Leeb Hardness Tester

Overview

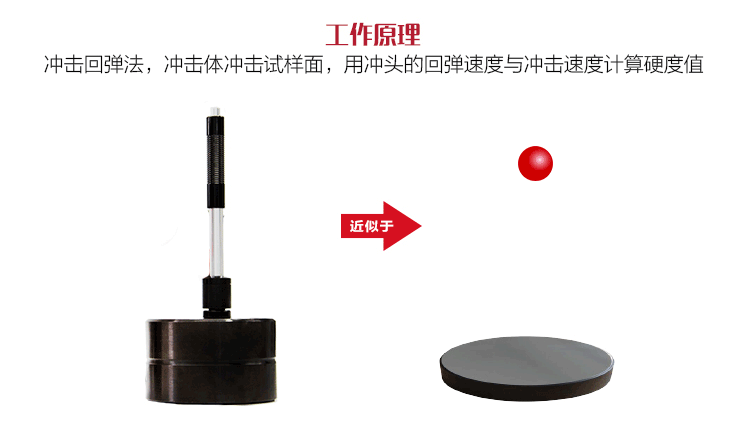

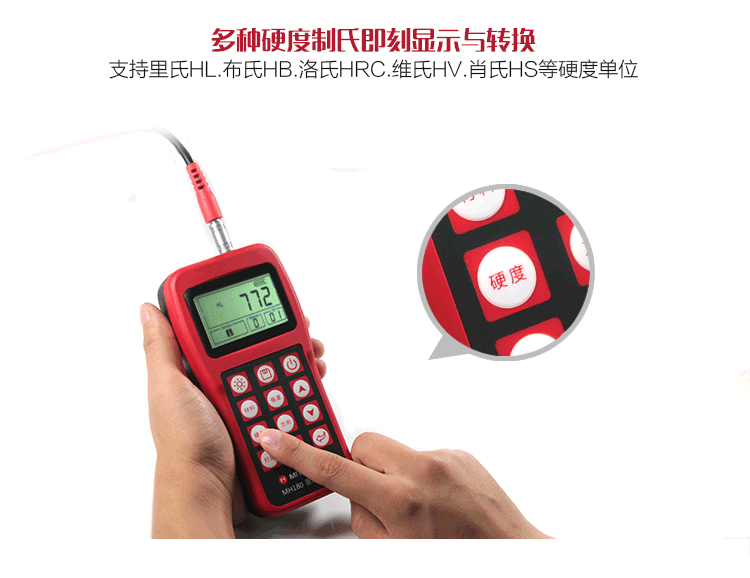

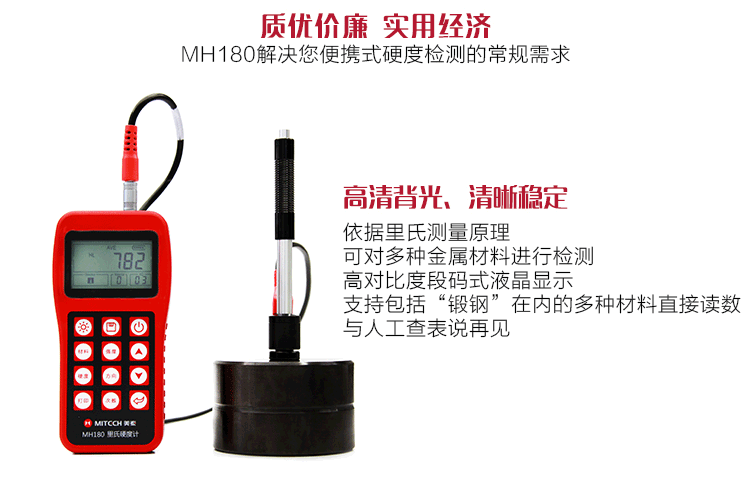

MH180 portable Leeb Hardness Tester is based on the Leeb hardness measurement principle, which can easily and quickly test the hardness of a variety of metal materials on site, and supports free conversion between Leeb, Brinell, Rockwell and other hardness systems. It adopts high-contrast segment code LCD display, which is small in size, light in weight, easy to carry, and stable and reliable in performance. It is widely used in metal processing and manufacturing, special equipment, failure analysis of long-lasting components, commodity inspection and other fields. It can meet the conventional needs of industrial hardness testing, with high quality and low price, and is the preferred choice for practical and economical Hardness Testers.

Functional use

Mold cavities

Bearings and other parts

Failure analysis of pressure vessels, turbine-generator sets and their equipment

Heavy-duty workpieces

Installed mechanical or permanently assembled components

Workpieces with a tight test space

Formal original records of test results are required

Material division of metal material warehouse

Rapid inspection of multiple measuring parts in a large area of large workpieces

Features

Based on the Leeb hardness measurement principle, a wide range of metal materials can be inspected.

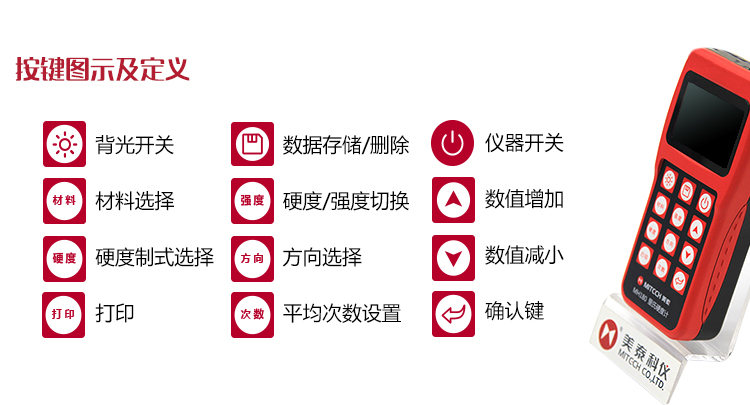

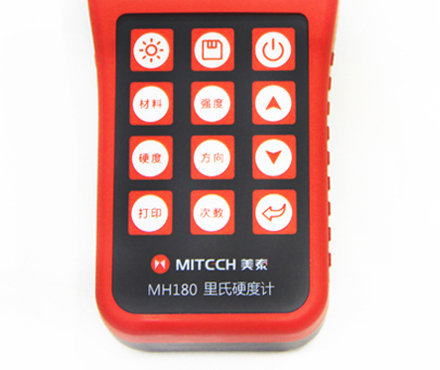

High-contrast segment LCD display, simple and convenient operation.

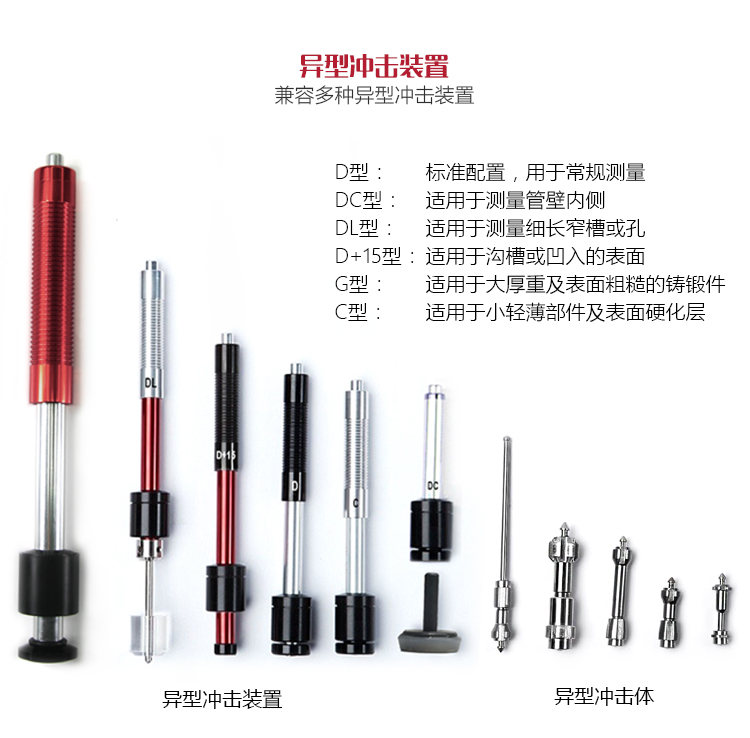

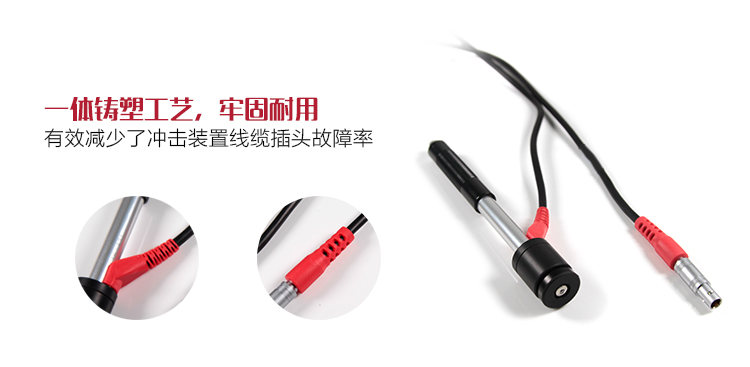

One main unit can be equipped with 6 different impact devices.

The "Steel" material is supported, and when the "Forged Steel" specimen is tested with a D/DC type impact device, the HB value can be read directly, eliminating the need to manually check the table.

It has the function of calibration of the indicator software.

It can store up to 100 groups (32~1 impact times) hardness measurement data, and each group of data includes a single measurement value, average value, impact direction, times, material, hardness system and other information.

There is a battery remaining indicator icon on the display to show the remaining battery level in real time.

It has a high-brightness EL backlit display, which is convenient for use in low-light environments.

Equipped with microcomputer software (optional configuration), it has rich functions such as transmitting measurement results, measuring value storage management, measuring value statistical analysis, printing measurement value report, and setting instrument parameters in batches to meet the higher requirements of quality assurance activities and management.

The power supply adopts 2 AA (No. 5) size ordinary alkaline batteries, which can work continuously for no less than 100h, and has power-saving functions such as automatic sleep and automatic shutdown.

Small, portable, and highly reliable, the instrument is suitable for harsh operating environments and is resistant to vibration, shock, and electromagnetic interference.

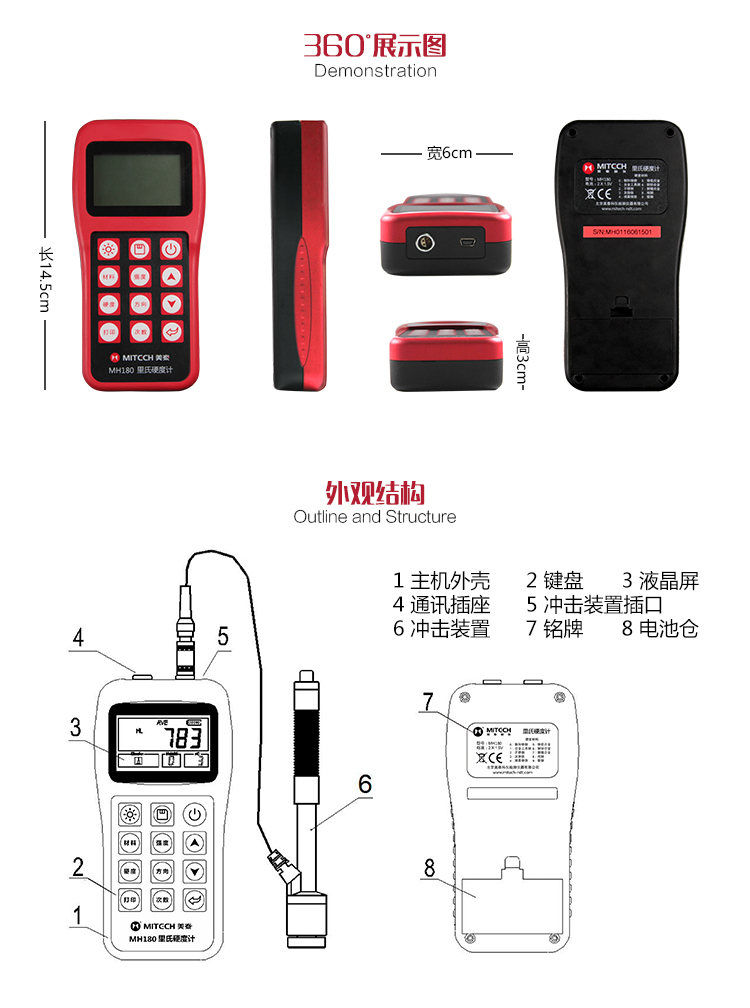

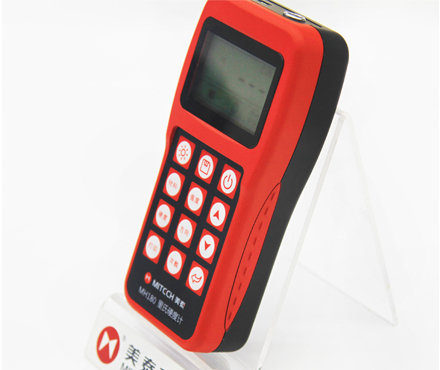

Dimensions: 150mm×74mm×32 mm;

Weight: 245g

Comparison of Mattel's full range of Hardness Tester products

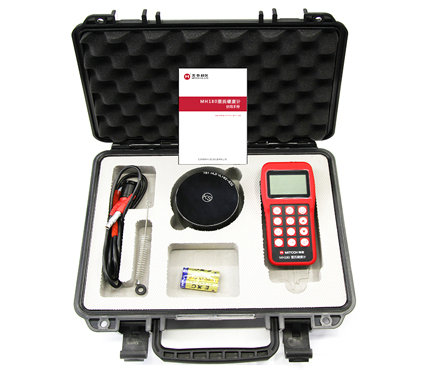

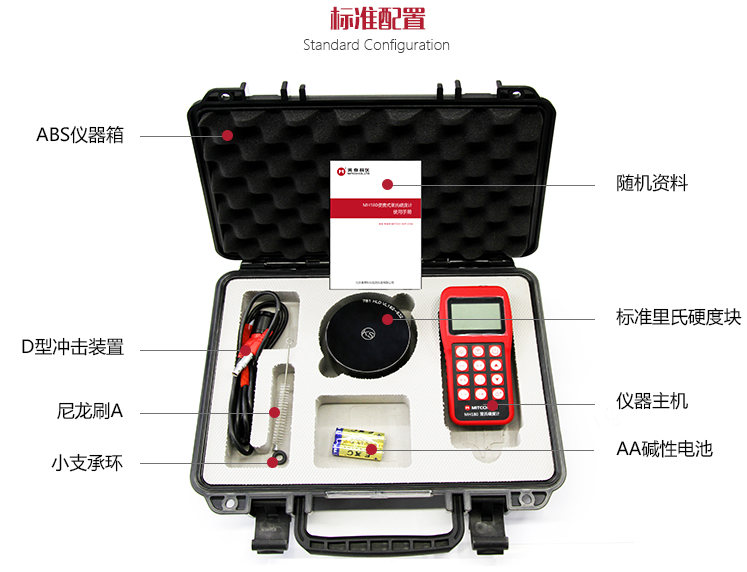

Packing list：Instrument host x1, standard Richter Hardness block x1, manual x1, AA alkaline battery x2, D-type Impact device x1, nylon brush x1, small support ring x1, instrument case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
