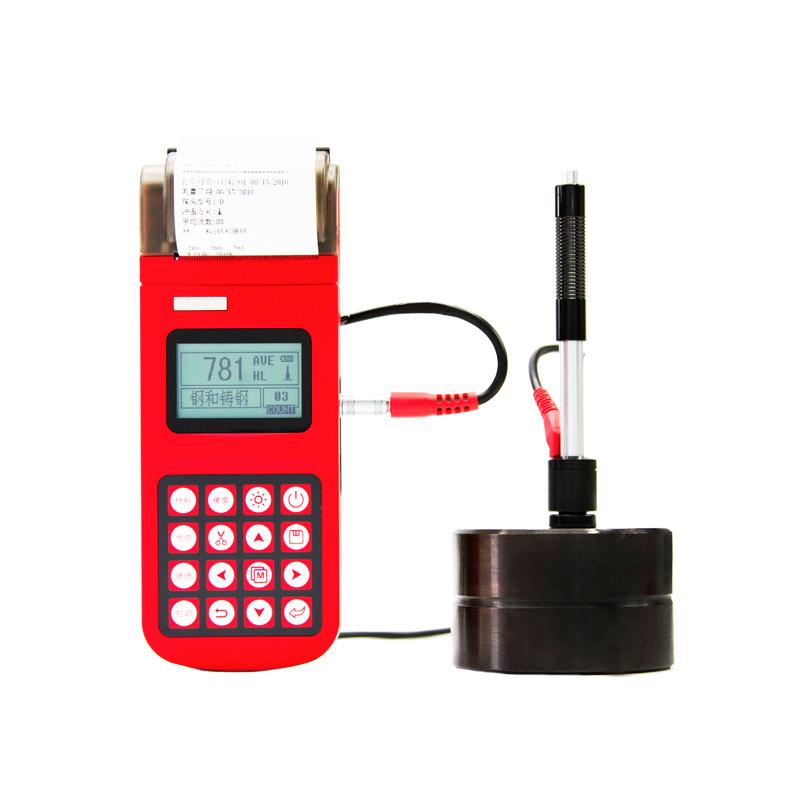

MITECH MH500 Leeb Hardness Tester split structure, dot matrix liquid crystal display

MH500

Leeb Hardness Tester

Overview

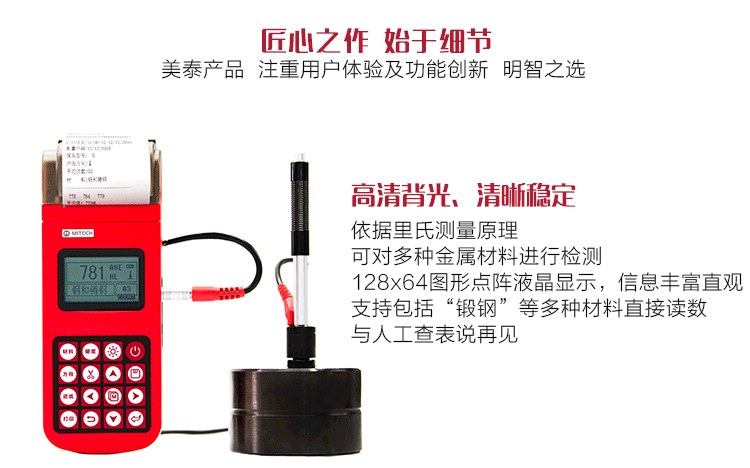

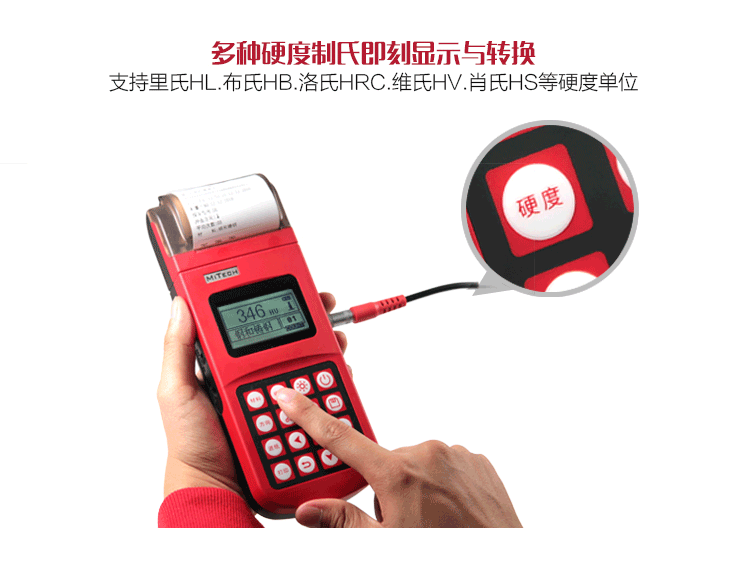

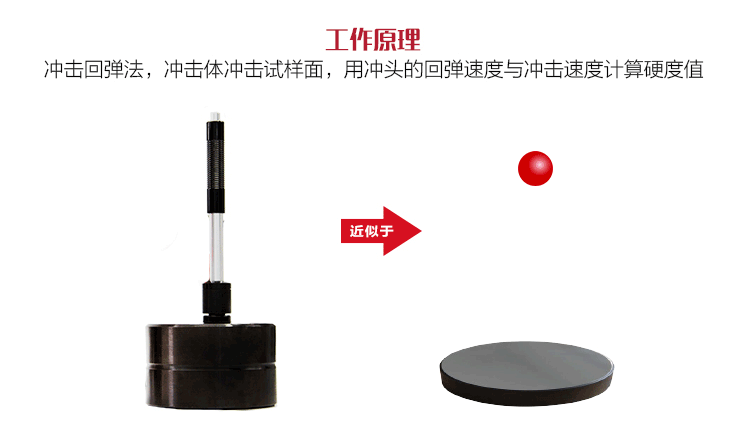

MH500 portable Leeb Hardness Tester is based on the Leeb hardness measurement principle, which can easily and quickly test the hardness of a variety of metal materials on site, and supports free conversion between Leeb, Brinell, Rockwell and other hardness systems. It adopts 128×64 graphic dot matrix LCD screen, rich and intuitive information, stable performance, integrated integrated high-speed thermal printer, can realize on-site instant printing of measurement results, and is widely used in metal processing and manufacturing, special equipment, failure analysis of long-lasting components, commodity inspection and other fields. It is particularly suitable for on-site hardness testing of large parts and non-detachable parts. It is a wise choice to improve production efficiency and pass rate and save production costs.

Functional use

Mold cavities

Bearings and other parts

Failure analysis of pressure vessels, turbine-generator sets and their equipment for heavy workpieces

Installed mechanical or permanently assembled components

Workpieces with a tight test space

Formal original records of test results are required

Material division of metal material warehouse

Features

• Based on the Leeb hardness measurement principle, a wide range of metal materials can be inspected

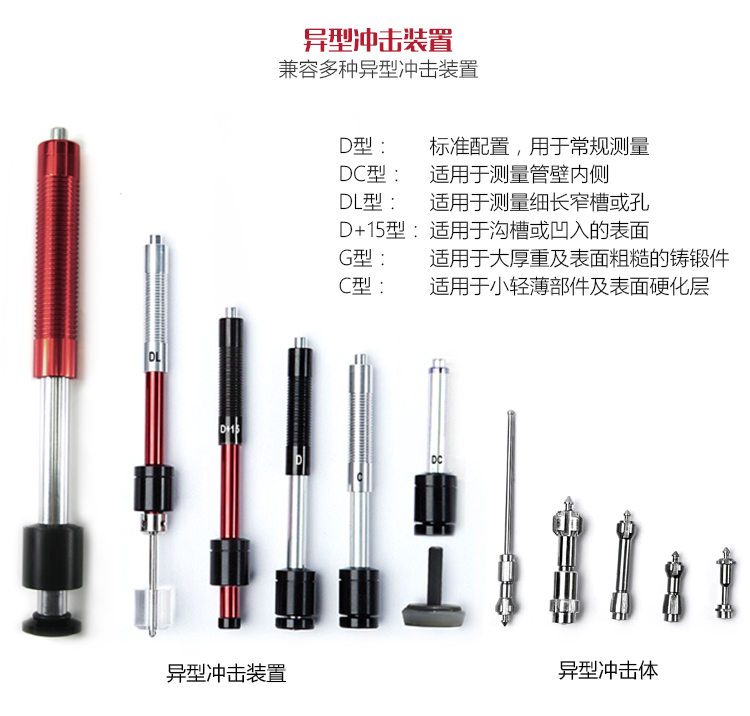

• One main unit can be equipped with 6 different impact devices

• The "Steel" material is supported, and when the "Forged Steel" specimen is tested with a D/DC type impact device, the HB value can be read directly, eliminating the need to manually check the table

• The upper and lower limits of hardness values can be set in advance, and automatic alarms will be given when the range is exceeded, which is convenient for users to test in batches

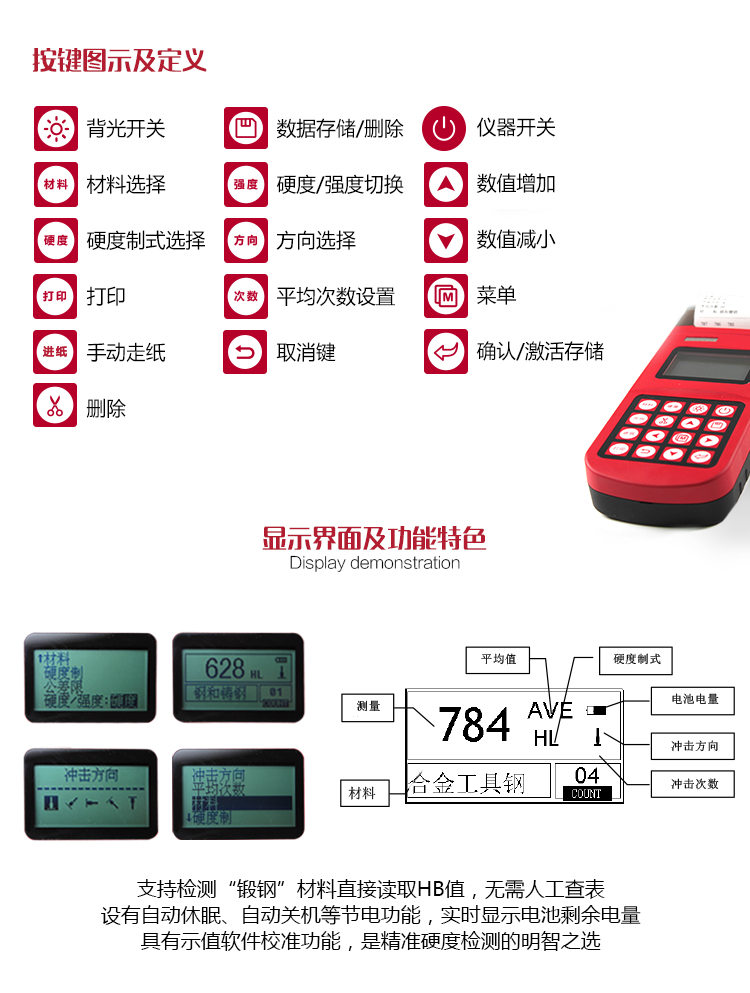

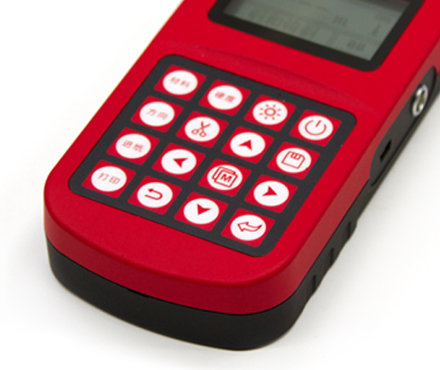

• Full Chinese display, menu-style operation, simple and convenient operation

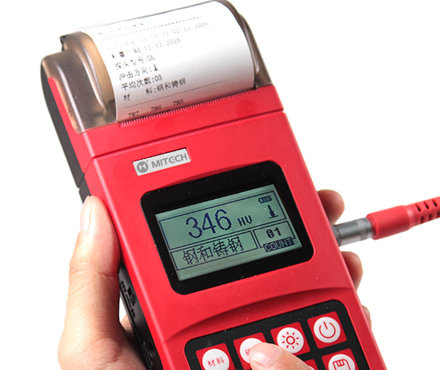

• The high-brightness EL backlit display is convenient for use in low-light environments

• It can store up to 500 sets of hardness measurement data (32~1 impact times), and each group of data includes a single measurement value, average value, measurement date, impact direction, times, material, hardness system and other information.

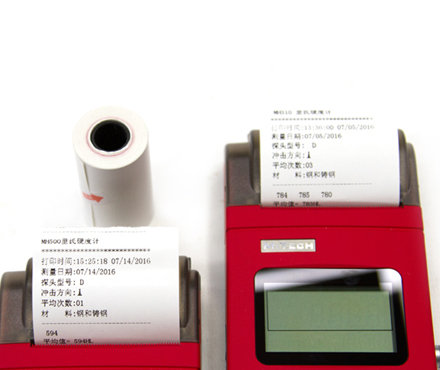

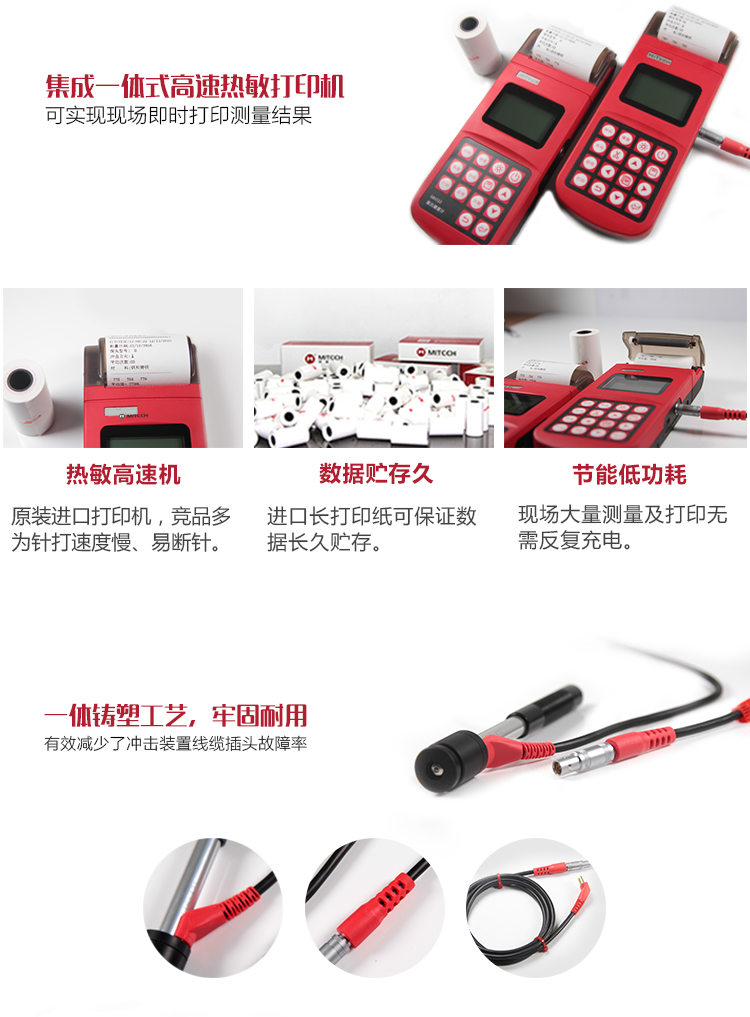

• The thermal printer is integrated with the instrument, which works quietly and prints fast, and can print the test report on site

• It has a software calibration function

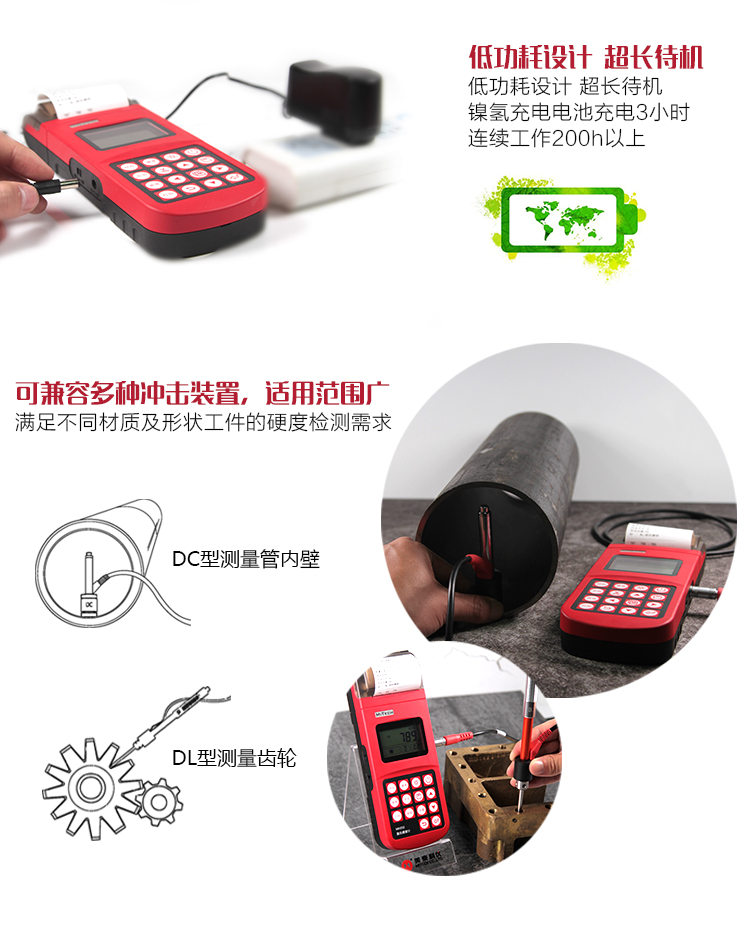

• Built-in nickel-metal hydride rechargeable battery and charging control circuit, which can work continuously for no less than 150 hours, and has power-saving functions such as automatic sleep and automatic shutdown

• Real-time display of battery remaining power, charging progress when charging

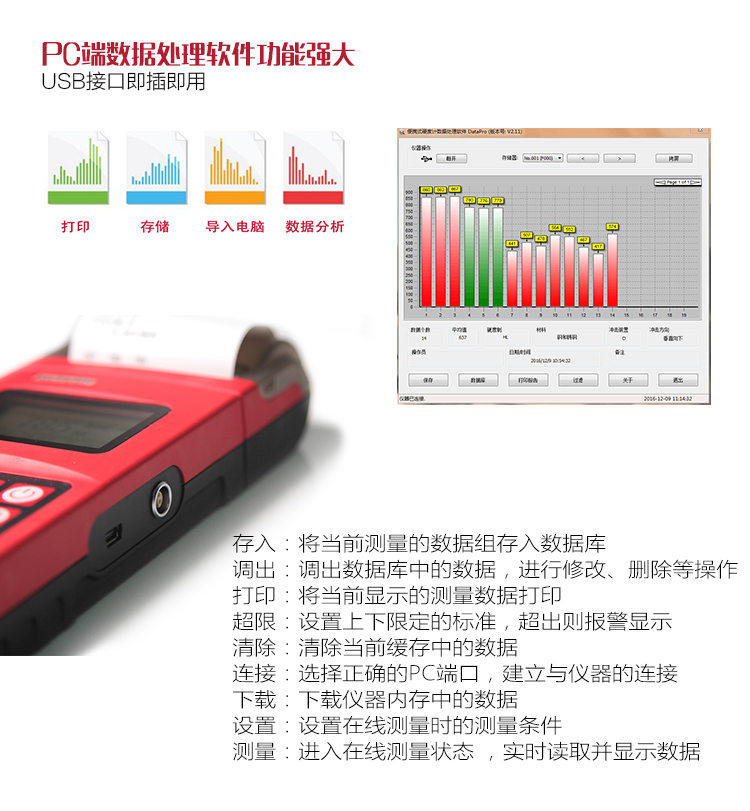

• It is equipped with USB interface, and can transmit measurement results, measurement value storage management, measurement value statistical analysis, print measurement value report, batch setting instrument parameters, etc., through the optional PC data processing software, to meet the higher requirements of quality assurance and management

• Small, portable, and highly reliable, the instrument is suitable for harsh operating environments and is resistant to vibration, shock, and electromagnetic interference

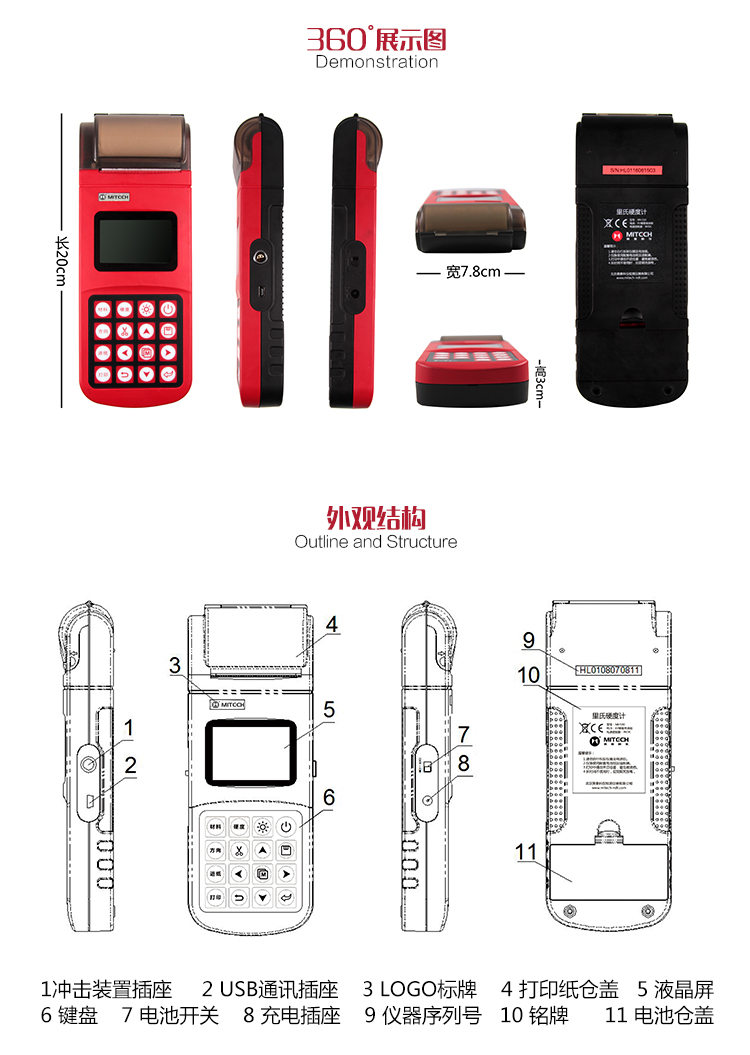

• Dimensions: 212mm× 80mm×32mm

Comparison of Mattel's full range of Hardness Tester products

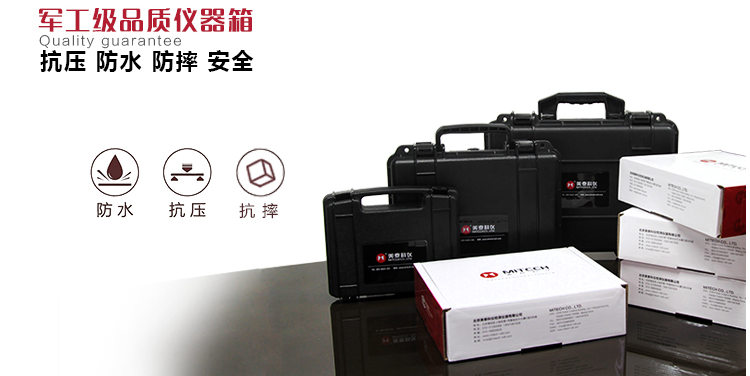

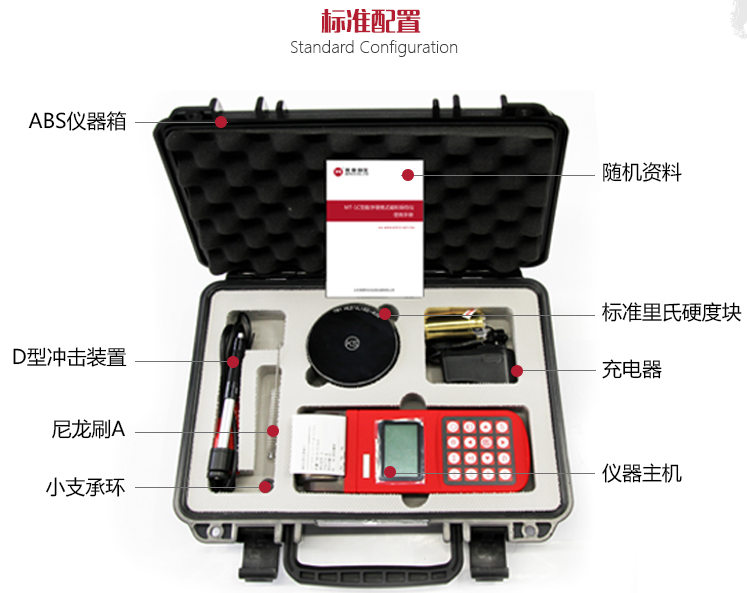

Packing list：Instrument host x1, USB cable x1, standard Richter Hardness block x1, manual x1, D-type Impact device x1, nylon brush x1, small support ring x1, instrument case x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
