Specifications
| Measuring range | 170~960HLD |
| Hardness system | HL/HRC/HRB/HV/HB/HS |
| Error of indication | ±6HLD (HLD=760±30) |
| Measurement direction | 360º (vertical down, slope down, horizontal, slope up, vertical up) |
| Display | 128 * 64 dot matrix LCD with backlight, adjustable contrast |
| data storage | Can store 100 sets of test data |
| Measurement material | Steel and cast steel, alloy tool steel, gray cast iron, ductile iron, cast aluminum alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper |
| Power | 3 × 1.5V AAA alkalinity battery |
| Weight | 220G (standard configuration: host + D-type impact device) |
| Dimensions | 155*77*35mm |
| Indication repeability | <6HLD (HLD=760±30) |
Packing list

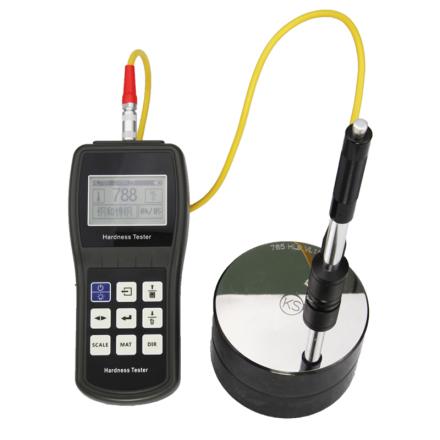

Host x1, D-type impact device x1, standard Hardness block x1, nylon brush x1, battery x3, small support ring x1, manual x1, warranty card x1, packing list x1, certificate of conformity x1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/7831/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
