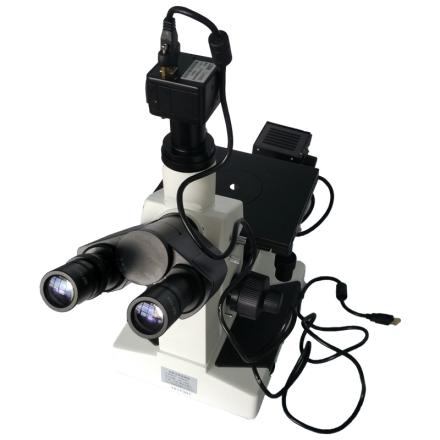

Specifications
| Trinocular observation head | Double cylinder tilt is 30 ° |
| pupil adjustment range | 55mm~75mm |
| eyepiece | Large field of view eyepiece 10X (field of view Φ16mm); 10X flat field reticle eyepiece (grid value 0.1mm) |
| objective lens | Flat field color difference objective 10X, 25X, 40X, 100X (oil) |
| Total magnification | 100X~1000X |
| Focusing system | Coaxial focus adjustment with coarse fretting, fretting grid value of 2μm, adjustable coarse elastic, with locking and limit device |
| converter | Four holes (ball positioning) |
| lighting | Kulie lighting system, 6V20W tungsten halogen lamp, adjustable brightness |
| stage | 150×180mm |
| Movement range | Vertical 15mm, horizontal 15mm |
| Dimensions | 559mm×195mm×345mm |
Packing list
1. Host x1, 2. Trinocular observation head x1, 3.10x flat field eyepiece x2, 4.10x objective x1, 5.20x objective x1, 6.40x objective x1, 7.100x objective (oil x1, 8. elasticity clip x1, 9. palette (blue, green, yellow) x 1 each, 10. Halogen bulb x1 (for installation), 11.0.5A fuse tube x1 (for installation), 12. Tar oil (for 100x objective) x1, 13.0.01mm ruler x1, 14. Adaptive mirror x1, 15. Metallographic analysis software x1, 16. Instruction manual x1, 17. CCD viewfinder
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/7844/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
