QNix1500 Coating Thickness Gauge

Model：
Contact
Details SPEC

Qnix Coating Thickness GaugeSPEC

Qnix Coating Thickness GaugeDetails

Qnix Coating Thickness GaugePacking list

SKU
NB007961
Measurement principle
Magnetic Induction + eddy Current
Measurement range
0~5000μm
margin of error
±3%
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest substrate
0.2mm(F)；0.05mm(N)
probe
Integrated probe
Power Supply
1 * 9V battery
system language
Chinese
Display screen
LCD liquid crystal display
Weight
110g
Dimension
100*60*27mm
Minimum measurement surface
10*10mm
temperature compensation
0~60℃
probe
Ruby fixed
Data storage
1500 memory type can store data
Interface
1500 Memory Connectable Computer
Coating Thickness Gauge

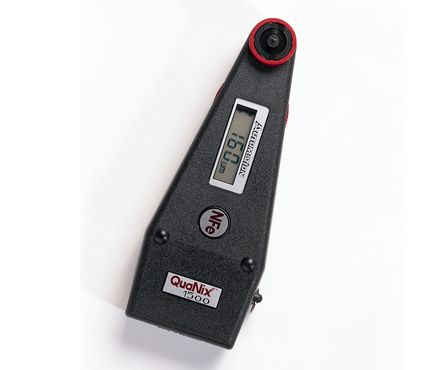

QNix1500 Coating Thickness Gauge Picture

The QNix1200 and QNix1500 models are all-in-one and only need to be zeroed and calibrated, making them very easy to use. Among them, QNix1200 is a magnetic Thickness Gauge, which can be used to measure the coating and plating on magnetic substrates such as steel and iron; The QNix1500 is a magnetic and eddy current Thickness Gauge, which can be used to measure not only magnetic substrates such as steel, but also coatings, oxide films, phosphate films and other cladding on the surface of non-magnetic metals such as aluminum, copper and stainless steel. These two models are simple to operate, easy to carry, high precision, and the probe and body are designed at a 90° right angle, which can meet the measurement of some narrow spaces (such as the inner wall of the pipe), and are loved by the majority of users.


Benefits:

• Zero-only only, no calibration required
• Dual-probe dual-purpose
• QNix1500 single probe up to 5000um
• Automatic power on/off
• The right-angle design of the probe is convenient for measuring tight spaces such as the inner wall of the tube

Technical parameters

Magnetic matrix

Fe Probe (QNix1200/1500)

Non-magnetic matrix

NFe Probe (QNix1500 Model)

Measuring range

QNix1200: 0-2000um

QNix1500 : 0-5000um

precision

0-50um:≤±1um

50-1000um: ≤± 1.5% reading

1000-3000um≤±3%

Minimum contact surface

10×10mm

Minimum radius of curvature

Convex: 5mm

Concave: 25mm

Minimum substrate thickness

Fe:0.2mm/NFe:0.05mm

Temperature compensation range

0-60℃

display

LCD liquid crystal

probe

Ruby fixed

power supply

1×9V battery

size

100×60×27mm

weight

110g

peculiarity

The right-angle design makes it easy to measure the inner wall of the tube

storage

The 1500 memory type can store data

Data transmission

The 1500 memory type can be connected to a computer


FAQ
QCoating thickness gauge can measure anti-corrosion coatings coatings, relatively thick?
A Yes, this is a magnetic Induction + eddy Current Coating thickness gauge. The range is 5mm.
QCan the QNix1500 Coating thickness gauge test both ferrous and non-ferrous substrates?
A Hello, yes, QNix1500 is a dual-function Coating thickness gauge of magnetic induction and eddy current.
QCan the QNix1500 Coating thickness gauge be used to test the anticorrosive film thickness of the inner wall of the pipe?
A Hello, yes, this probe and fuselage are designed at right angles, which can be used to test the coating thickness measurement in narrow spaces. The thickness measurement range is 0-5000um.
QHow to calibrate the QNix 1500 series thickness gauge?
A Hello, the QNix 1500 Coating thickness gauge does not need to be calibrated, just need to be adjusted to zero.
