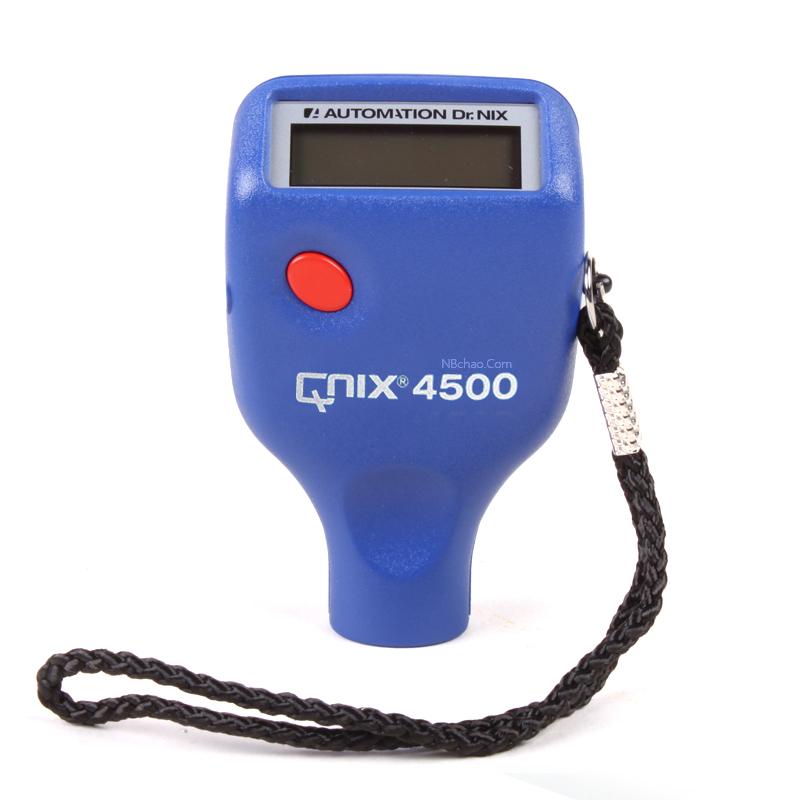

Germany Knix QNix4500 dual-use Coating Thickness Gauge integrated probe 3mm range

QNix4500 dual-use Coating Thickness Gauge with magnetic Induction and eddy Current two Measurement modes, the machine is an integrated probe, measurement range of 3000 μ m, +/- 3% Measurement accuracy, widely used in paint and automotive painting field.
Model：
Contact
Details SPEC Con VIDEO CAT

Qnix QNix4500 Coating Thickness GaugeSPEC

Qnix QNix4500 Coating Thickness GaugeDetails

Qnix QNix4500 Coating Thickness GaugePacking list

SKU
NB007962
Measurement principle
Magnetic Induction + eddy Current
Measurement range
Fe：0~3000μm； NFe：0~3000μm
margin of error
±3%
resolution
0.1μm|1μm
Minimum measurement surface
Φ25mm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest substrate
0.2mm(F)；0.05mm(N)
probe
Integrated probe
Unit display
μm/mils
Power Supply
2 × 1.5V AA battery
Standards
DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091,SO 2360
Weight
105g
Dimension
100*60*27mm
QNix4500
Coating Thickness Gauge
Germany Knix QNix4500 dual-use Coating Thickness Gauge integrated probe 3mm range Picture

QNix@4500 coating Thickness Gauge is widely used in the field of coatings and automotive coatings, QNix@4500 is a magnetic induction and eddy current dual-purpose coating Thickness Gauge, this model is a standard version of the integrated probe, can not only be used to measure magnetic substrates such as steel, but also can be used to measure aluminum, copper, stainless steel and other non-magnetic metal surface coatings, oxide film, phosphate film and other coatings. These two models are simple to operate, easy to carry, and have high precision, which are loved by the majority of users.

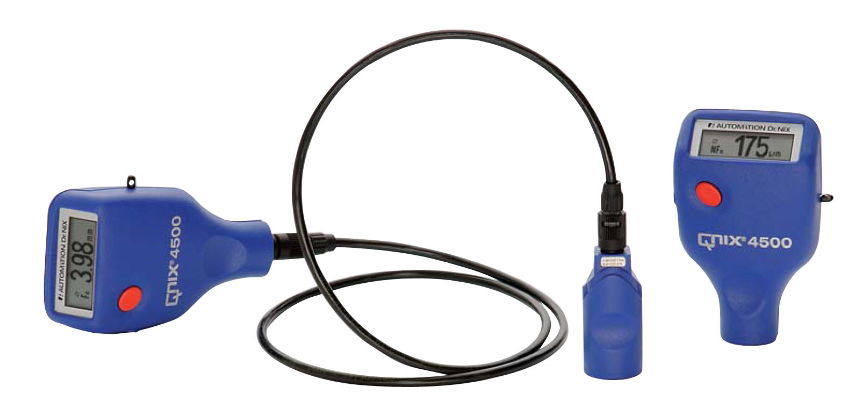

Illustration of the QNix4500 dual-purpose coating Thickness Gauge

Benefits:

　• Zero-only only, no calibration required

　• Compact size and easy to operate

　• One machine for dual use, automatic identification of the substrate

　• High precision

　• Inexpensive


FAQ
QWhat is the accuracy of QNix4500 dual-use Coating thickness gauge?
A Hello, the accuracy is +/- (3% + 2μm).
QCoating thickness gauge from Germany is genuine?
A Hello, yes, the instruments on sale at NBchao. Com Mall are all original and genuine.
QDoes this QNix4500 thickness gauge need to be calibrated?
A Hello, this 4500 dual-purpose Coating thickness gauge only needs to be adjusted to zero, and can be tested without calibrating.
QDoes the Coating thickness gauge meet the requirements of ISO2178?
A Model QNix4500 Coating thickness gauge
QQNix4500 Coating thickness gauge measurement of different substrates need how to adjust?
A Hello, this German Knicks QNix4500 dual-purpose Coating thickness gauge has the function of automatically identifying the substrate, which is convenient and fast.
