United States

RDS35 #3/8 "experimental wire-wound drawdown Bar WFT 80μm length 400mm

SE
Wire-wound process, stainless steel material, Spreader width is 300mm, Film thickness is 80μm, using high-grade wear-resistant stainless steel material, high accuracy film.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 35# 3/8" Applicator rod 3/8 "SPEC

RDS 35# 3/8" Applicator rod 3/8 "Details

RDS 35# 3/8" Applicator rod 3/8 "Packing list

SKU
NB007966
Production process
wire-wound
WFT
80.0μm
diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
Wire diameter
0.89mm
35# 3/8"
Applicator rod 3/8 "
Wire-wound process, stainless steel material, Spreader width is 300mm, Film thickness is 80μm, using high-grade wear-resistant stainless steel material, high accuracy film.
RDS35 #3/8 "experimental wire-wound drawdown Bar WFT 80μm length 400mm Picture

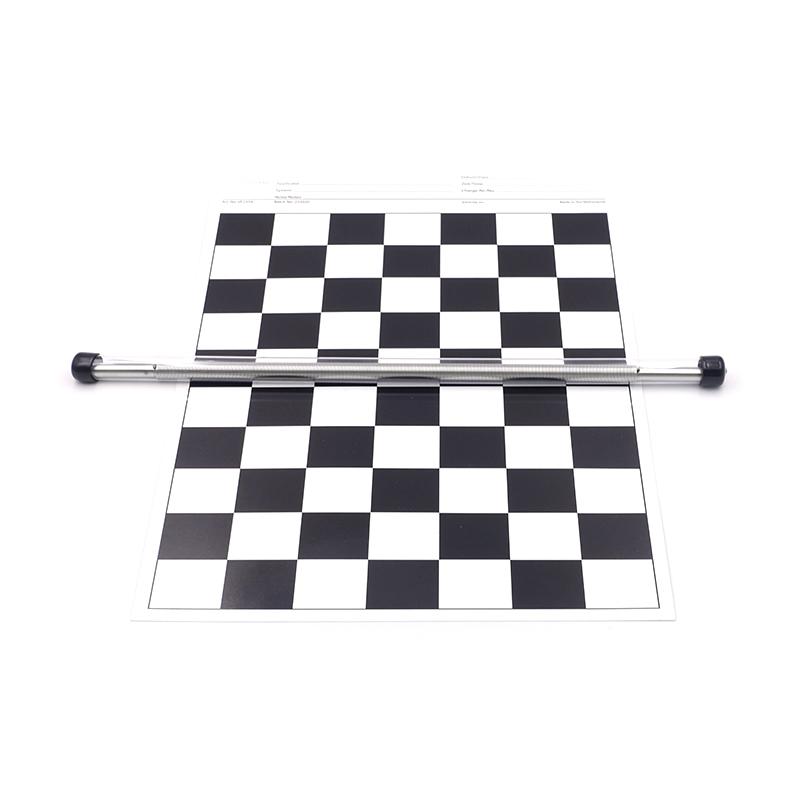

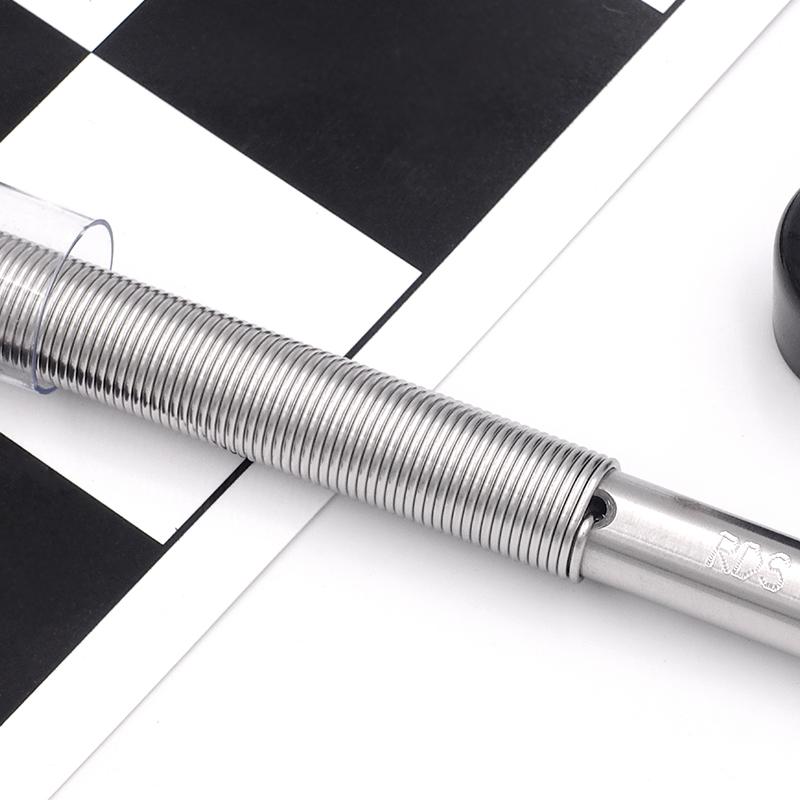

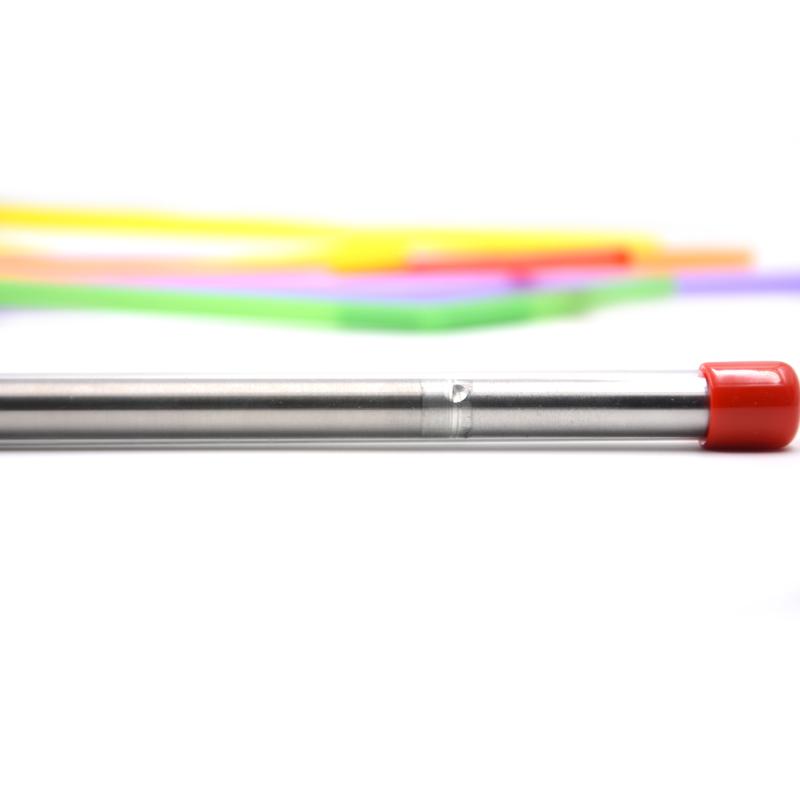

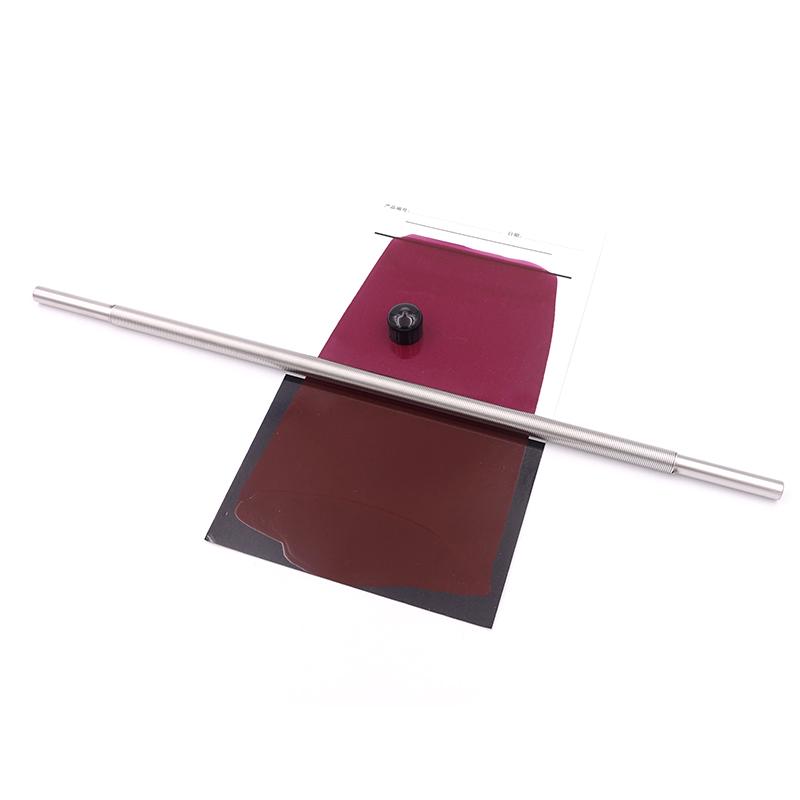

RDS coating Rods Figure 1

RDS coating Rods Figure 2

RDS coating Rods Figure 3

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

RDS coating Rods Figure 8

RDS coating Rods Figure 9

RDS coating Rods Figure 10



FAQ
QLab Spreader Coating samples with a thickness of about 80 microns, which bar to choose?
A We recommend RDS 35 #3/8 "Mayer Rods, specially designed for the preparation of 80 micron wet film thickness, wear resistant stainless steel material, application width 300mm, suitable for laboratory sample preparation.
QIs the wet film thickness of RDS35 #stick and OSP-80 Spreader the same?
A Hello, the same film Film thickness is 80μm, which can be used alternatively.
QWhich RDS Applicator rod model is 80um?
A Hello, this is RDS35 #.
QExcuse me, is the larger the number, the larger the ink? Printing ink for plastic?
A Different brands are not necessarily the same, RDS is like this. Printing ink thickness depends on your use.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QDoes the RDS Applicator rod meet the standard of GB/T13217.7?
A The 35 #3/8 "Applicator rod can refer to
QCan this wire rod be used to prepare an interior-wall coating test board?
A Sure.
QWhat is the difference between wired and formed in the US RDS35 #?
A Hello, the film effect of wired and formed is the same, but the process is different. Wired follows the traditional mayer rod principle, and formed has the advantage of easy cleaning. It is a wire rod that is squeezed into a continuous groove on the steel rod. Spreader The amount will be larger than wired, but the film effect is the same.
