German EPK MiniTest 600 N coated platings Thickness Gauge, non-iron based, thickness measurement: 0~2000μm

German EPK MiniTest 600 N coated platings Thickness Gauge is a portable high-precision coated platings Thickness Gauge, using eddy Current thickness measurement principle, MiniTest 600 N coated platings Thickness Gauge has data statistics function, including calibrated foil and dust jacket.
Contact
Details SPEC CAT

ElektroPhysik MiniTest 600 N Coated platings Thickness GaugeSPEC

ElektroPhysik MiniTest 600 N Coated platings Thickness GaugeDetails

ElektroPhysik MiniTest 600 N Coated platings Thickness GaugePacking list

SKU
NB007969
Measurement principle
eddy Current
Measurement range
0~2000μm
margin of error
±2%
Minimum measurement surface
Φ20mm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest substrate
50μm(N)
probe
Line probe
Probe size
Φ15*62mm
Calibrated mode
Standard calibrated, one point calibrated, two point calibrated
Unit display
μm/mils
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
Interface
USB
Data storage
The maximum number of batches is 10, and the storage Capacity of each group is 1000
Power Supply
2 AA batteries
Display screen
LCD 128 × 64 liquid crystal
Operating temperature
Host: 0 - 50 ℃; Probe: -10 ℃ - 70 ℃
Weight
270g
Dimension
64 *115 *25 mm
MiniTest 600 N
Coated platings Thickness Gauge

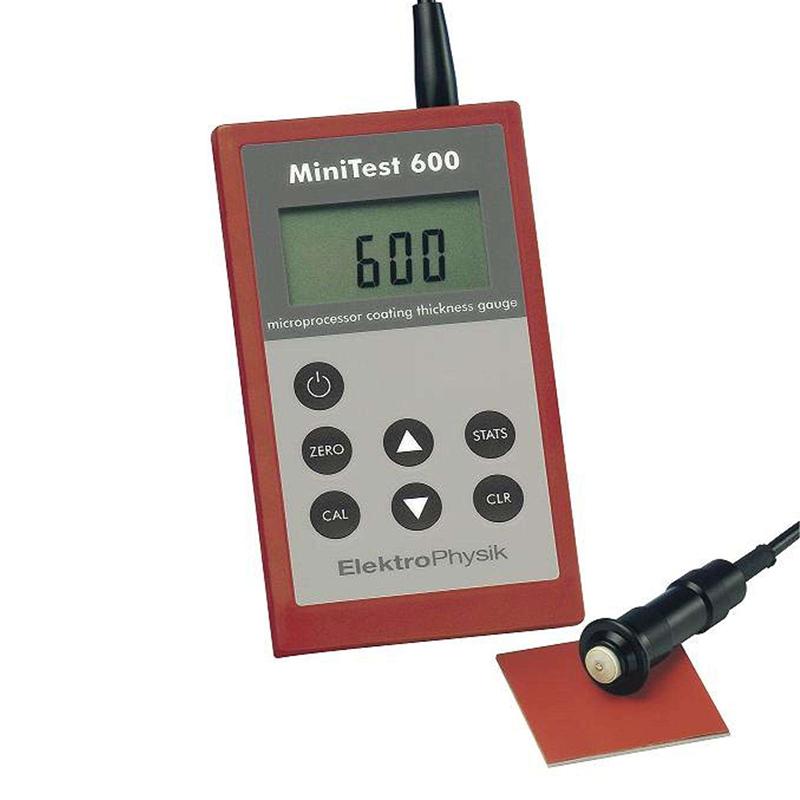

German EPK MiniTest 600 N coated platings Thickness Gauge, non-iron based, thickness measurement: 0~2000μm Picture

Introduction

The EPK MiniTest 600 N Coated Thickness Gauge is suitable for:All insulating coatings on non-ferrous metals (aluminum, zinc, copper, etc.) such as anodized films, paints, coatings, etc.


The MiniTest 600 Thickness Gauge is particularly suitable for the measurement of anti-corrosion coatings in the automotive, shipbuilding, bridge construction, as well as building profile and manufacturing industries.

Product Applications

It can measure all insulating coatings on non-ferrous metals such as aluminum, copper, brass, austenitic stainless steel, such as anodized films, chemical films, paints and coatings, ceramics, etc.

Features

1、The host is equipped with128*64-bit LCD backlit display and powered by AA batteries. The clock function records the test time and sets the automatic shutdown time.

2. The external integrated design, the probe connects the 1-meter cable with the host, and the top of the newly developed probe is made of very wear-resistant hard material to ensure that it will not be damaged for long-term use.

Display diagram

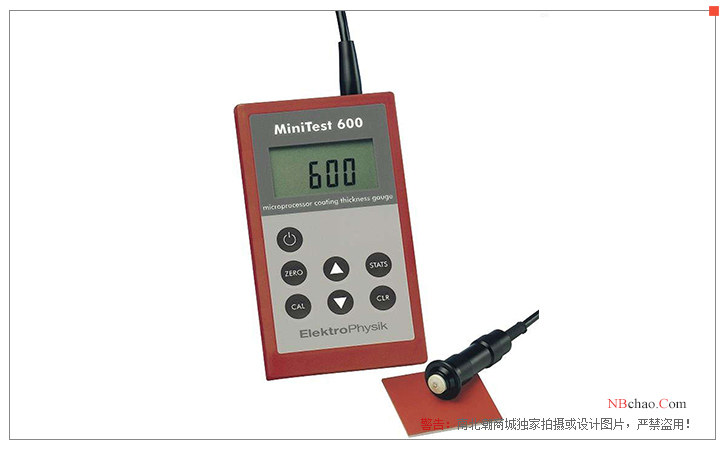

Illustration of the EPK MiniTest 600 N-coated Thickness Gauge in Germany

FAQ
QCoating thickness measurement on Aluminum Panel, coating is paints, about 0~ 50μm?
A Defelsko NS1 FNS1 can.
