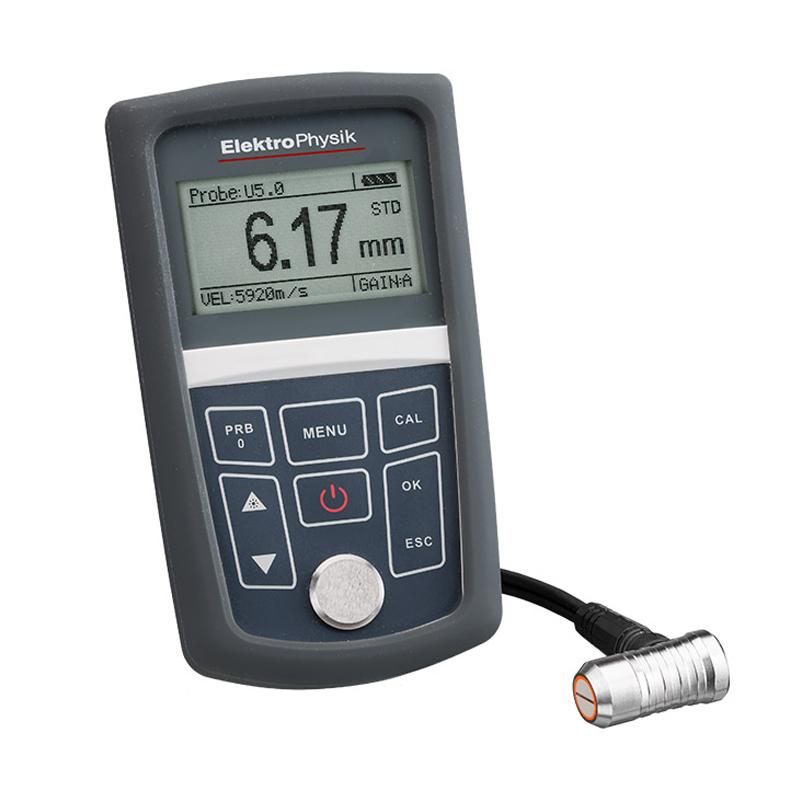

Germany EPK MiniTest 430 Ultrasonic Thickness Gauge Thickness Range 0.8~ 300mm

SE
Germany EPK MiniTest 430 Ultrasonic Thickness Gauge has statistical and sound speed back measurement functions, thickness measurement range of 0.8~ 300mm, MiniTest 430 Ultrasonic Thickness Gauge can measure the thickness of steel, plastic, Glass and other materials, optional Miscellaneous range probe.
$1387.00/set
PromotionLoading...
Coupon
Contact
Details SPEC Con CAT
Similar products

ElektroPhysik MiniTest 430 Ultrasonic Thickness GaugeSPEC

ElektroPhysik MiniTest 430 Ultrasonic Thickness GaugeDetails

ElektroPhysik MiniTest 430 Ultrasonic Thickness GaugePacking list

SKU
NB007974
Measurement range
Emission-echo mode: 0.65~ 500mm
Probe Frequency
5.0MHz
Probe style
Split probe
Probe diameter
Φ8mm
Probe contact temperature
-12~60℃
Lower limit of pipe measurement
20mm
measurement error
±0.04mm(0.65-9.99mm)；±(0.1%H+0.04)mm(10.00-99.99mm)；±0.3%(100.0-500.0mm)
Display resolution
0.01Mm when less than 99.99mm; 0.1mm when greater than 100mm
unit system
mm/inch
Measurement mode
Emission-echo mode, fast scan mode
Storage Capacity
10 groups of 5000 Measured values, dynamically assigned
statistical function
MAX Maximum, MIN Minimum
Speed of sound
1000~9999m/s
Display
128 × 64 Backlight
Operating language
Chinese
Interface
USB
Environmental temperature
-20~50℃
Power Supply
2 * 5 battery
Operating Time
80h
Host size
130*73*24mm
Weight
Approx. 190g
Application
It is suitable for testing the wall thickness of various plates, pipes, oil tanks, oil pipelines, boiler vessels and their local corrosion and rust
shutdown mode
You can choose 2 minutes, 5 minutes to automatically shut down or choose not to automatically shut down
probe recognition
Automatic identification probe
Speed of sound measurement
Determine the Speed of sound of unknown materials, and preset the Speed of sound value of 9 common materials
Gain range
Automatic; manually adjustable
display content
Measured value, Speed of sound, Probe model, Battery level, Current data set
MiniTest 430
Ultrasonic Thickness Gauge

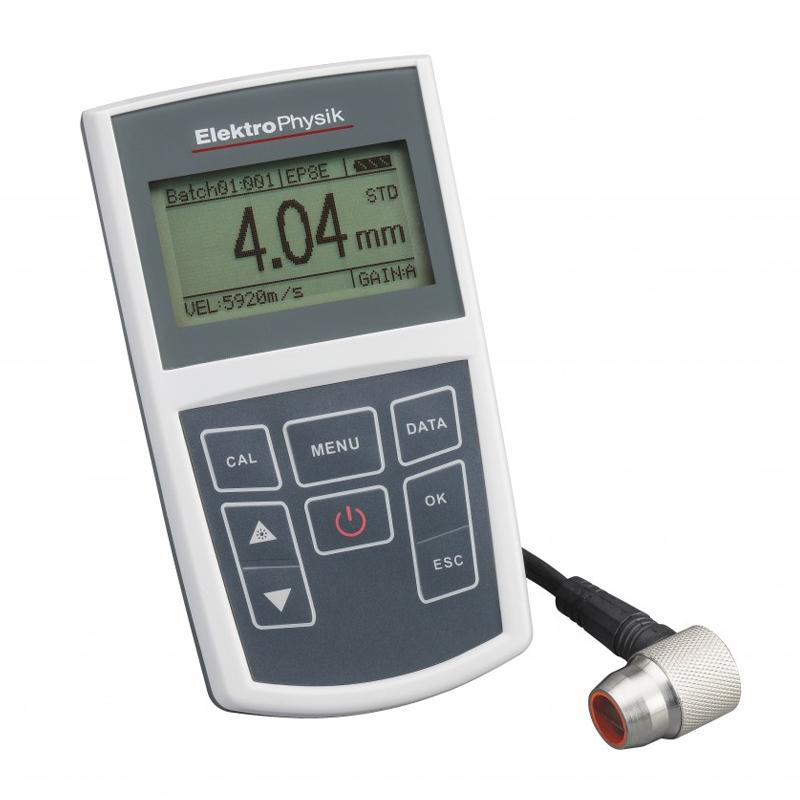

Germany EPK MiniTest 430 Ultrasonic Thickness Gauge Thickness Range 0.8~ 300mm Picture

Introduction

1. High impedance dual crystal probe;

2. Pulse-echo mode, measuring range of 0.65~500mm (standard probe is 0.8~300mm)

3. Echo-echo mode (measured through coating), measuring range up to 3-25mm (MiniTest 440 model available)

4. Sturdy anti-static, fireproof plastic shell.

5. Quickly measure the thickness of metal, plastic, glass, ceramics and other materials.

6. Suitable for laboratory and industrial use.

Product Applications

● It is suitable for the detection of wall thickness and local corrosion and rust of various plates, pipes, oil tanks, oil pipes and boiler vessels.

● It is suitable for product inspection in various industrial sectors such as oil refining, iron and steel, metallurgy, shipbuilding, machinery, chemical industry, electric power, and atomic energy.

Display diagram

Illustration of the EPK MiniTest 430 ultrasonic Thickness Gauge in Germany

Probes are optional

ModelCrystal diameterfrequencyMeasuring rangeOperating temperatureIntroduction
U5.0E8MM5.0MHZ3-25MM(E-E)；0.8-300MM(T-E)-12~+60℃The 440 comes standard with a probe, and the 440 probe has a pass-through mode for measurement through coatings.
U10.04MM10.0MHZ0.65-20MM-12~+60℃Small diameter probes. The minimum measuring tube outer diameter is 10mm
U7.56MM7.5MHZ0.65-50MM-12~+60℃It is mainly used for the measurement of thin walls and small arcs. The minimum measuring tube outer diameter is 15mm
U5.08MM5.0MHZ0.8-300MM-12~+60℃The 420 and 430 are supplied with probes as standard, which are primarily used to measure flat or large surfacesThe material of the radian. The minimum measuring tube outer diameter is 20mm
U2.012MM2.0MHZ2.0-500MM-12~+60℃Coarse-grain probes are mainly used for the measurement of coarse-grained materials such as cast iron. Minimal measurementsTube outer diameter 30mm
U5.0HT13MM5.0MHZ3.0-100MM-12~+350℃High-temperature probes, mainly used to measure materials with temperatures less than 350°C. Note: The contact time between the crystal and the high-temperature object to be measured during the measurement shall not be greater than5S. Minimum measuring tube outer diameter 25mm
FAQ
QHow much data can this thickness gauge store?
A Hello, you can store 10 sets of 5000 data.
QIs there a GB/T11344 standard Ultrasonic Thickness Gauge?
A This EPK Ultrasonic Thickness Gauge is fine!
