German EPK MikroTest G6 McCourt coated platings Thickness Gauge, thickness measurement: 0~100μm

SE
0~100μm thickness range; suitable for underwater thickness measurement, waterproof and explosion-proof; no need to calibrate, no power supply; EPK hot-selling mechanical Coating Thickness Gauge.
$770.00/set
PromotionLoading...
Coupon
Contact
Details SPEC Con VIDEO CAT OI
Similar products

ElektroPhysik MikroTest G 6 McCourt platings Thickness GaugeSPEC

ElektroPhysik MikroTest G 6 McCourt platings Thickness GaugeDetails

ElektroPhysik MikroTest G 6 McCourt platings Thickness GaugePacking list

SKU
NB007975
Measurement principle
mechanical
Measurement range
0~100μm
margin of error
±5%
Minimum measurement surface
20mm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest substrate
0.5mm
probe
Integrated probe
Calibrated Certificate
none
Calibrated mode
No need to calibrate
Unit display
μm
statistical function
none
icon function
none
Interface
none
Data storage
none
Power Supply
No batteries or power required
Standards
DIN EN ISO2178, DIN 50982, ASTM B 499, E 376, ASTM D 1186, ASTM G12, ASTM B 530, BS5411, ISO2361 standards
Display screen
Dial
Operating temperature
-20~100℃
Machine Weight
560G (including instrument case)
Machine size
215*55*29mm
Packaging Dimensions
235*185*46mm
MikroTest G 6
McCourt platings Thickness Gauge
0~100μm thickness range; suitable for underwater thickness measurement, waterproof and explosion-proof; no need to calibrate, no power supply; EPK hot-selling mechanical Coating Thickness Gauge.
German EPK MikroTest G6 McCourt coated platings Thickness Gauge, thickness measurement: 0~100μm Picture

Introduction

The German EPK MikroTest G6 McCourt Coating Thickness Gauge accurately and unmistakably measures the thickness of paint and plating layers on steel.

The MIKROTEST Coating Thickness Gauge measures the thickness of all non-magnetic coatings on steel (e.g. lacquer, powder coat, plastic, zinc, copper, tin and nickel). Fast, accurate and non-destructive, MICROTEST has been the most widely used instrument for the automatic determination of coating thickness for more than 30 years. Germany's "know-how" shows that it has the highest level of magnetic cladding Thickness Gauge in terms of process technology and precision.

Apply standards

The EPK MikroTest G6 is compliant with DIN EN ISO2178, DIN 50982, ASTM B 499, E 376, ASTM D 1186, ASTM G12, ASTM B 530, BS5411, ISO2361.

Features

MIKROTEST OPERATES FULLY AUTOMATICALLY. It has the following very good characteristics when in use:

1) Automatic measurement will not occur misoperation;

2) Simple setup and measurement;

3）No calibration required;

4）No batteries or other power sources are required;

5）Automatically report the thickness reading;

6）With a non-destructive probe, a little bit of measurement;

7）The metal armor is suitable for frequent outdoor operation and use, and is protected from mechanical impact;

8）Resistant to mechanical shock, acid and solvent corrosion;

9）The balancing device eliminates the influence of gravity and can accurately measure in any direction and in the tube.

Pictures

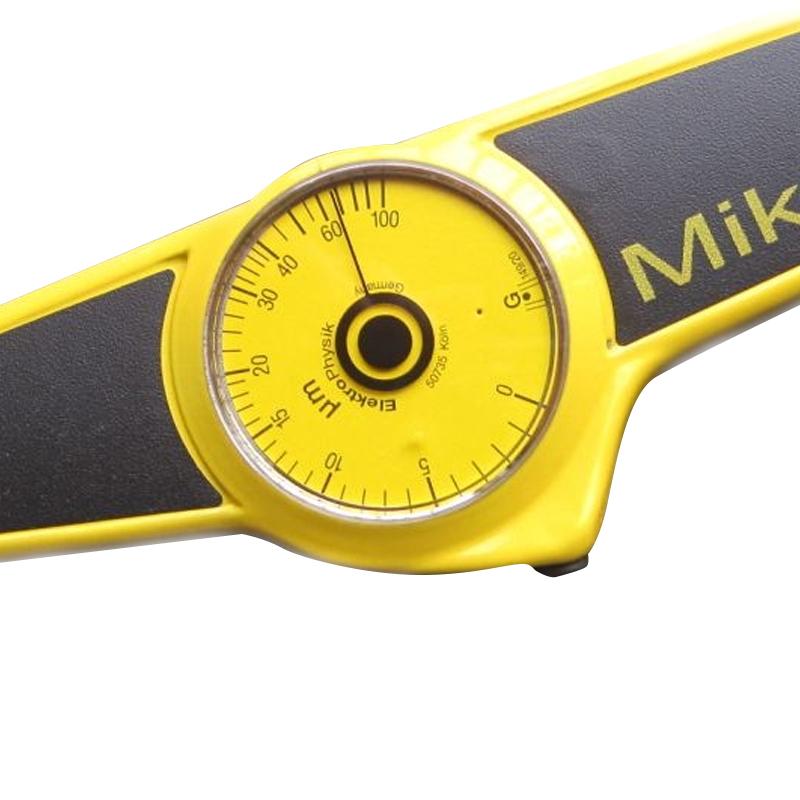

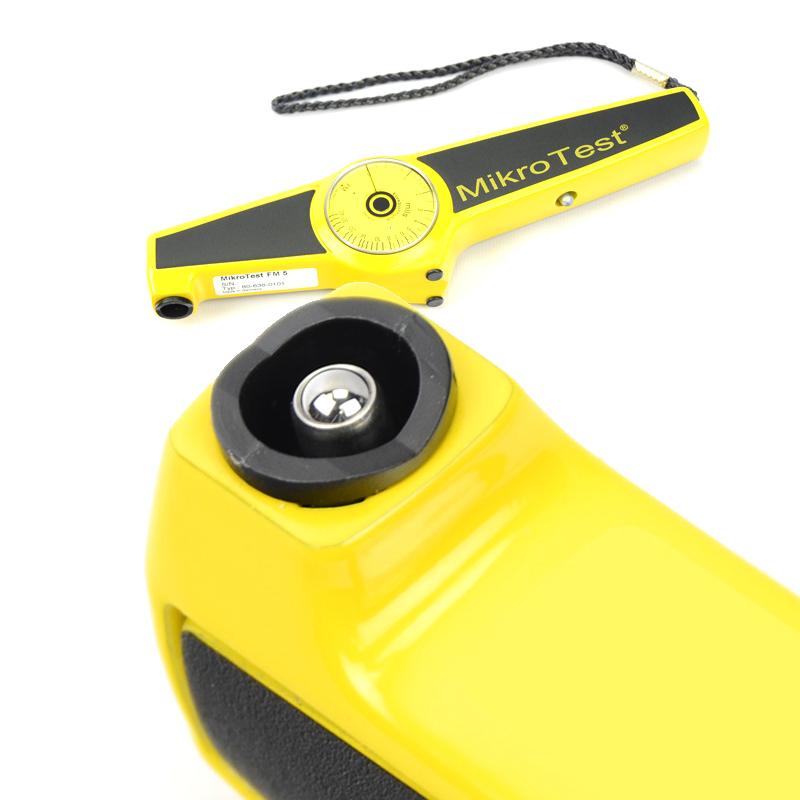

Illustration of the EPK MikroTest G6 McCourt Coated Thickness Gauge

Comparison of the MikroTest series

ModelMeasuring rangeReadabilityMinimum measuring area diameterThe minimum radius is convex and concave mmMinimum thickness of the substrateSuitable for:
MIKROTEST G 60－100μm1 μm or 5% reading20mm5mm；25mm0.5mmElectroplating layer on steel, iron, lacquer, enamel, plastic, rubber layer
MIKROTEST F 60－1000μm5 μm or 5% reading30mm8mm；25mm0.5mm
MIKROTEST S3 60.2－3mm5% reading30mm15mm；25mm1.0mm
MIKROTEST S5 60.5－5mm5% reading50mm15mm；25mm1.0mm
MIKROTEST S10 62.5－10mm5% reading50mm15mm；25mm2.0mm
MIKROTEST S20 67.5－20mm5% reading100mm100mm；150mm7.0mm
MIKROTEST NIFE50 60－50μm2 μm + 8% reading20mm10mm；25mm0.5mmNickel plating on iron
MIKROTEST NI500-50um1 μm or 5% reading15mm5mm；25mm-Nickel plating on a non-ferromagnetic metal substrate
MIKROTEST NI1000-100um1 μm or 5% reading15mm5mm；25mm-
FAQ
QDo you have mechanical paints Dry-Film, thickness gauge?
A Mechanical platings thickness gauge with MikroTest G 6 McCourt
QCan the G6 test Eletroplating nickel and electroless nickel coatings on steel?
A It can be measured, but not allowed. It is recommended to use a coulometer.
QThe test sample of bronze nickel plating is that the ring width is only 4mm. Can EPK G6 be tested?
A Test the surface of the sample ring, but it is too small
QBronze nickel-plated, the test sample is a circle, and the width is only 4mm. Can EPK G6 be tested?
A Too small to measure
QDoes this EPK MikroTest G6 thickness gauge have large errors?
A Hello, the accuracy is ± 1μm or 5% of the reading.
QMcCourt thickness gauge calibrated block for sale?
A Hello, this is not available.
QCan this McCourt thickness gauge be tested underwater?
A Hello, yes.
QElectrophoresis coating on the iron base, the pointer kind of thickness gauge, about Film thickness 0-100 microns, which one to choose?
A Hello, the McCourt G6 can meet your needs.
QWhat is the difference between the McCourt thickness gauge F6 and G6?
A Hello, the thickness measurement range of MikroTestF6 and G6 is different. The thickness measurement range of F6 is 0~ 1000μm, while the film thickness range of G6 is 0~ 100μm.
QWhat is the minimum substrate Film thickness that EPK MikroTest G6 can measure?
A Hello, the minimum Film thickness that can be measured is 0.5mm.
