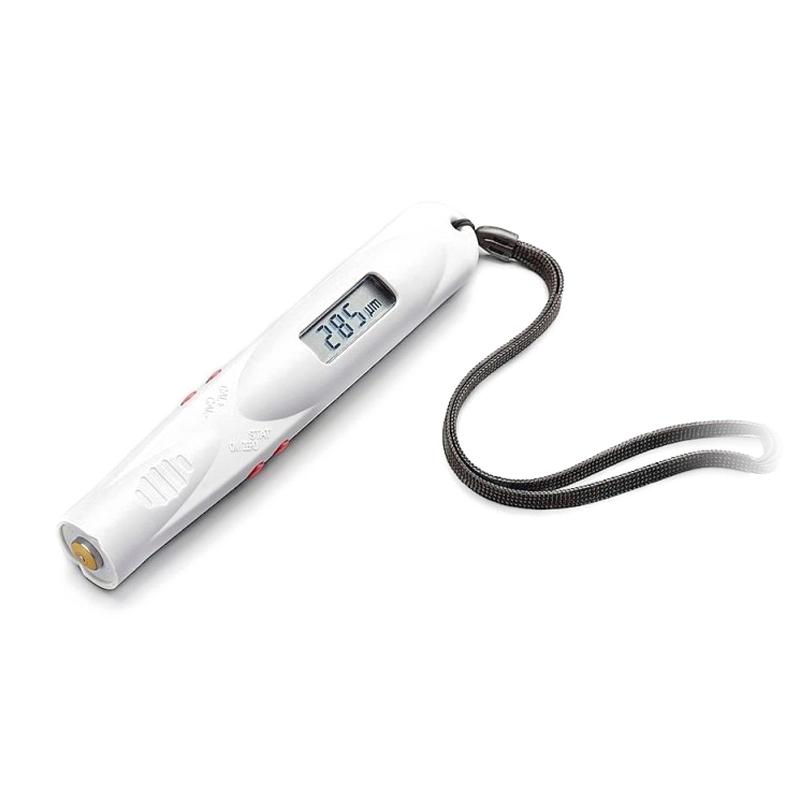

Germany EPK MiniTest 70F Pocket Coating Thickness Gauge thickness range 0~3mm

Germany EPK MiniTest 70F pocket Coating Thickness Gauge built-in magnetic probe, thickness range of 0~3000μm, MiniTest 70F pocket Coating Thickness Gauge with a single battery power supply, with data statistics.
Contact
Details SPEC VIDEO CAT OI
Similar products

ElektroPhysik MiniTest 70F Coating Thickness GaugeSPEC

ElektroPhysik MiniTest 70F Coating Thickness GaugeDetails

ElektroPhysik MiniTest 70F Coating Thickness GaugePacking list

SKU
NB007983
Measurement principle
magnetic Induction
Measurement range
0~3000μm
margin of error
±2%
resolution
0.5μm
Minimum measurement surface
30mm
Minimum radius of curvature
Convex 5 mm; Concave 40mm
thinnest substrate
0.5mm
probe
Built-in probe
Calibrated mode
One point calibrated, two point calibrated
Unit display
μm/mils
statistical function
Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
Power Supply
1 * AA (No. 5) battery
Standards
DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376
Display screen
LCD screen
Weight
Approx. 80g
Dimension
Approx. 157 mm long, φ 27 mm
signal processing
Integrated 32-bit signal processing (SIDSP ®)
Repeatability
± (1 μm + 1% )
MiniTest 70F
Coating Thickness Gauge

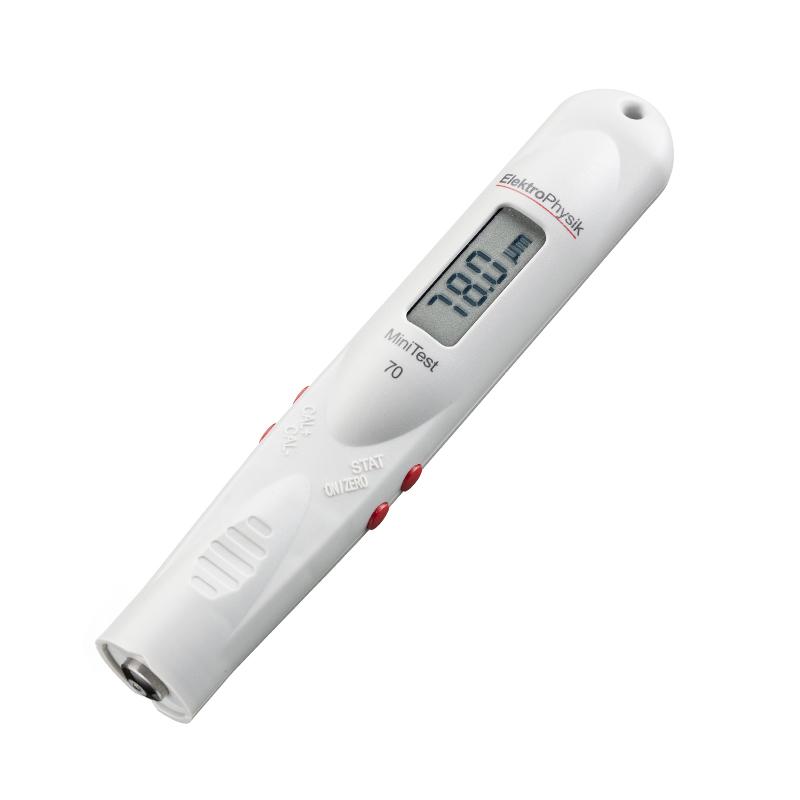

Germany EPK MiniTest 70F Pocket Coating Thickness Gauge thickness range 0~3mm Picture

Introduction

  • The MiniTest 70 Series Pocket Coating Thickness Gauge provides fast and accurate measurement of non-magnetic coatings on steel0 ~ 3000 μm

  • Insulating coating on non-ferrous metal substrates0 ~ 2500  μm

  • Automatically recognizes the substrate material

  • Built-in probes

  • Universal measurement methods

  • It has a statistical function

apply

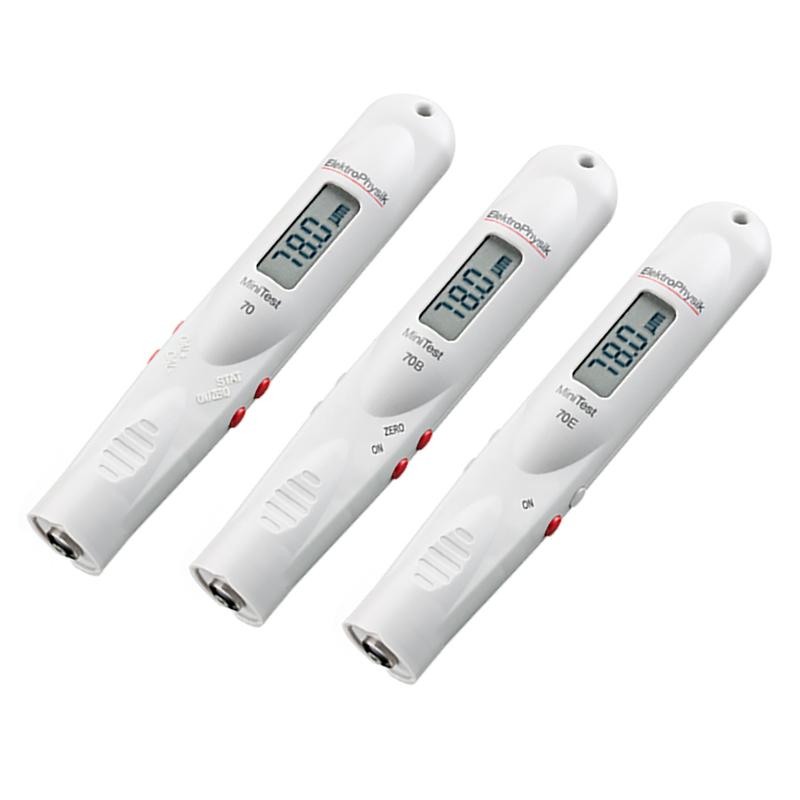

Quick and easy non-destructive measurement of coating thickness, available in two models

MiniTest 70 F: Built-in probe for measuring non-magnetic coatings on iron substrates

MiniTest 70 FN : Built-in probe, dual-purpose version, measuring non-magnetic coatings on ferrous substrates, non-conductive coatings on non-ferrous substrates

Features

The four buttons are clear at a glance;

Built-in statistical functions: number of readings, maximum value, minimum value, average value, standard deviation;

No training is required to use.;

There is a sound prompt for each reading;

A standard AA battery, when the power is too low, the BAT will be displayed, and the reading error will not be caused by insufficient power

The dual-purpose built-in probe does not need to select the measurement mode, and the instrument will automatically select the measurement mode according to the substrate material: magnetic or eddy current principle

 Display diagram


FAQ
QWhat is the principle of this pocket type Coating thickness gauge?
A Hello, it is the principle of magnetic induction.
QDo you have the Pocket Coating thickness gauge required by ISO19840?
A This MiniTest 70F pocket Coating thickness gauge will do.
