Ander NDJ-5S Digital Viscometer Viscosity Range 10mPa·s~ 100.000Pa · s

SE
The Ender Digital Viscometer NDJ-5S is a series of NDJ Digital Rotational Viscometers with a measurement Viscosity of 10mPa·s~ 100.000Pa · s. The NDJ-5S has four different rotational speeds to choose from.
$568.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

AnDe NDJ-5S Digital ViscometerSPEC

AnDe NDJ-5S Digital ViscometerDetails

AnDe NDJ-5S Digital ViscometerPacking list

SKU
NB008001
Display
digital display
Measuring range
10~100000mPa·s
Rotor Specifications
1 #, 2 #, 3 #, 4 #(0 #optional)
Rotor speed
6/12/30/60rpm
Measurement Accuracy
±2%
Power
220V、50Hz；110V、60Hz
Data Interface
RS232C
Allowable Operating Temperature
5~35℃
Temperature range
-50~99 ℃ (optional semiconductor temperature probe)
temperature Accuracy
±5℃
temperature resolution
0.1℃
communication baud rate
9600
Allowable Relative Humidity
≤80%
NDJ-5S
Digital Viscometer
Ander NDJ-5S Digital Viscometer Viscosity Range 10mPa·s~ 100.000Pa · s Picture

Introduction

Ande Digital Viscometer NDJ-5S is an intelligent instrument based on 16-bit high-performance single-chip microprocessor technology. It has completely changed the previous gear speed regulation method, and the stepper motor can set accurate and stable precautions according to the program. A torque sensor drives the rotor to rotate at a constant speed. When the rotor is subjected to viscous resistance in the measured liquid, after detection and processing, the viscosity of the measured liquid is displayed on the screen.

NDJ-5S digital viscometer has the advantages of quick and easy operation, high measurement accuracy and anti-interference. In addition, it also has a measurement range function, and the full scale display value is 100%.

Applications

Digital viscometers are widely used to measure solvent-based adhesives, latex, biochemical products, paints, coatings, cosmetics, inks, pulp, food, starch, etc.

Pictures

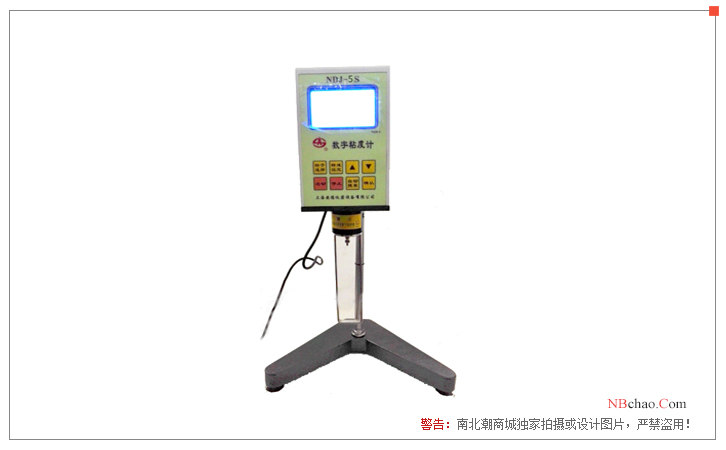

Display of Ande Digital Viscometer NDJ-5S

FAQ
QMeet GB/T22427.7 Digital Viscometer
A NDJ-5S Digital Viscometer, please refer to it.
QCan the sticky Adhesive be accurately measured?
A Hello, this kind of product can be widely used in the Adhesive industry, but it also needs to be referred to according to your sample parameters. You can consult the engineer, and the engineer will give you professional selection guidance.
QIf Ender's Viscometer is equipped with a temperature probe, what is the temperature range?
A Hello, the temperature measurement range is -50~ 99 ℃.
