Ander DV-79 Digital Viscometer Viscosity Range 1mPa·s~ 1000000mPa·s

DV-79

Digital Viscometer

Introduction

Ande DV-79 digital viscometer is greatly improved on the basis of the original NDJ-79. Its function and performance have reached or exceeded the professional level of the same type abroad. It adopts a 16 -bit microcomputer processor as the core, a stepping motor with high subdivision drive, and a digital display viscosity measuring instrument with a digital liquid crystal with a blue backlight function.

Features

1. The speed is stable and accurate, the buttons are clearly marked, the program design is easy to operate.

2. When the torque is lower than 10% and higher than 90% of the measurement range, the instrument will sound an alarm.

3. The RTD temperature probe can monitor and measure the viscosity temperature in real time with an accuracy of 0.1°C. The temperature measurement range is 0°C-120°C.

4. The screen directly displays viscosity, speed, temperature, percentage torque, rotor number and the maximum viscosity value of the selected rotor that can be measured at the current speed.

5. Optional RS232 interface printing, the printing interval can be set by the user.

6. The main control board and subdivision driver board all adopt chip technology, and the circuit design adopts the current professional microcomputer processor, and the structure layout is reasonable and compact.

7. The full scale and linearity of each gear of the digital viscometer are all measured and corrected through the PC interface, and its measurement performance and functions have reached the professional level of the same type abroad.

Applications

DV-79 digital viscometer is used to measure the viscous resistance of liquid and the dynamic viscosity of liquid. Includes Newtonian and non-Newtonian liquid measurements. It can be widely used to measure the viscosity of various fluids such as oil, paint, food, coating, papermaking, cosmetics, chemical industry, capsule adhesive and medicine.

Product Structure

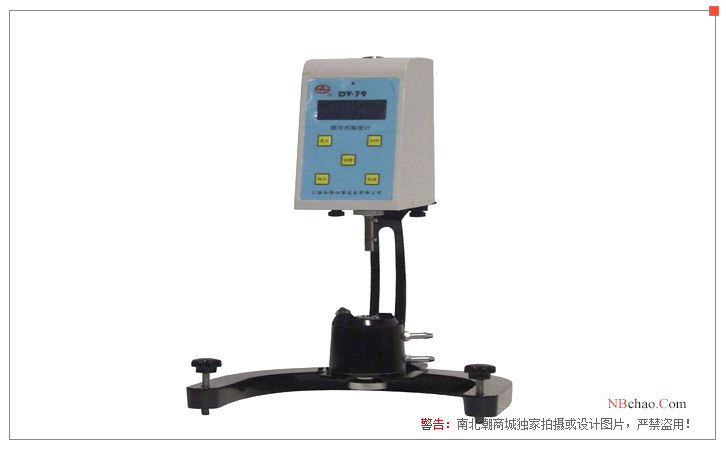

Pictures

Packing list：Host x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
