ANDE DV-3 + PRO Digital Viscometer Programmed Type, Viscosity 1~ 6000000MPa · s

DV-3+PRO

Digital Viscometer

Digital display, Measurement range LDV: 1~ 6 million; RDV: 100~40M; HADV: 200~80M; HBDV: 800~320M, rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.1~ 250rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S.

Introduction

The function and performance of Arda DV-3+PRO digital viscometer reach or exceed the professional level of the same type abroad.It adopts16A digital viscosity measuring instrument with a stepper motor high subdivision drive and a digital LCD with blue backlight function as the core of the microcomputer processor.The DV-3+PRO Digital Viscometer can be connected to a computer or printer, and is a program-controlled Rotational Viscometer.

Features

1. The speed is stable and accurate, the key is clearly marked, the program is designed, and the operation is simple.

2. When the torque is lowerIf 10% is higher than 90% of the measurement range, the instrument will sound an alarm.

3. The RTD temperature probe can monitor and measure the viscosity temperature in real time with an accuracy of 0.1°C. The temperature measurement range is 0°C-120°C.

4. The screen directly displays the viscosity, speed, temperature, percentmeter torque, rotor number and the maximum viscosity value that can be measured by the selected rotor at the current speed.

5. Optional RS232 interface printing, printing interval set by user.

6. The main control board and subdivision driver board all adopt SMD technology, and the circuit design adopts the current professional microcomputer processor, and the structural layout is reasonable and compact.

7. Digital viscometerThe full-scale range and linearity of each gear are all measured and corrected through the PC interface, and their measurement performance and function have reached the same type of professional level abroad.

Product Applications

The DV-3+PRO digital viscometer is used to measure the viscous resistance of liquids and the dynamic viscosity of liquids. Includes Newtonian liquid and non-Newtonian liquid measurements. It can be widely used to determine the viscosity of various fluids such as grease, paint, food, coating, papermaking, cosmetics, chemical industry, capsule adhesive and so on.

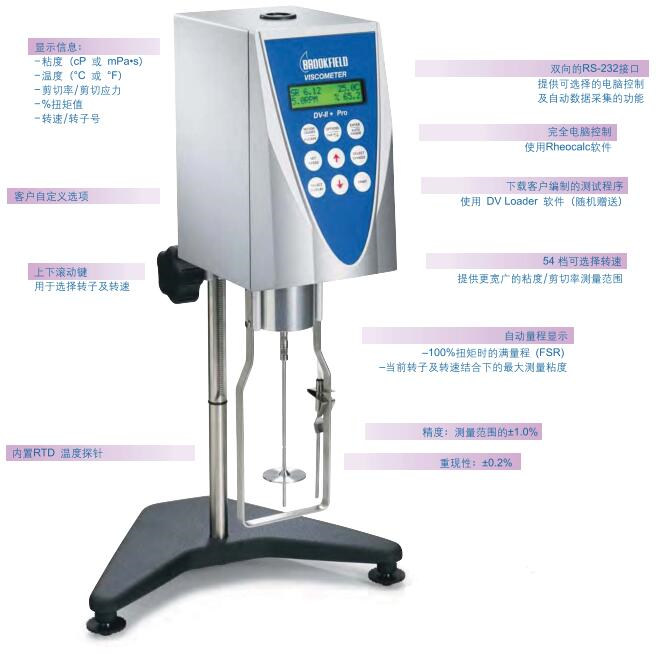

Product structure diagram

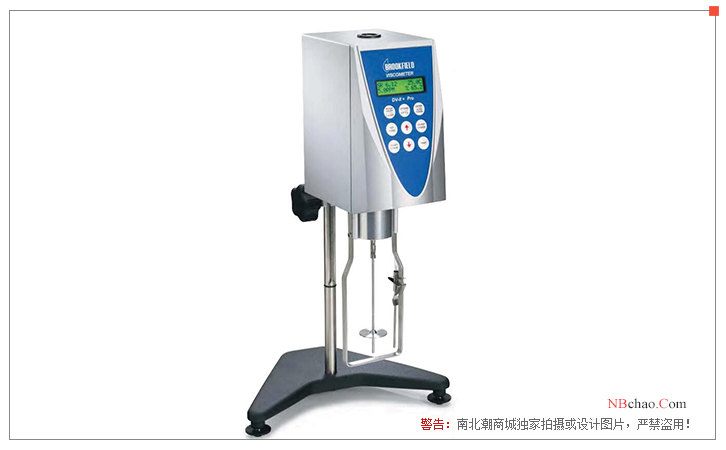

Product display diagram

Packing list：Host x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
