ANDE SNB-1 Digital Rotational Viscometer 1~ 600000mPa · s continuously variable speed

SNB-1

Digital Viscometer

Digital display, Measurement range 1~ 600000mPa · s, Rotor specification 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 1~ 60rpm, Measurement accuracy +/- 1% F.S, Power supply Voltage 110V/220V, Interface RS232C, Operating temperature 5~ 35 ℃, Communication baud rate 9600.

Introduction

In addition to the performance and characteristics of NDJ-series viscometer, SNB-1 Digital Rotational Viscometer has a wider measurement range, the speed rotation adopts the whole process of stepless speed change, and can be fully automated data acquisition through PC interface, and connect to the computer to complete a number of mathematical statistics analysis tasks such as automatic operation, data storage and historical data comparison

Product Applications

Digital viscometers are used to measure the viscous resistance of liquids and the dynamic viscosity of liquids. It is widely used to measure the viscosity of various fluids such as oils, foods, paints, coatings, papermaking, cosmetics, chemicals, capsules, adhesives and so on.

Features

1. The whole process is stepless and the speed can be continuously changed, and the fully automatic data acquisition can be carried out through the PC interface.

2. Link PC to carry out automatic operation, data storage and historical data comparison and other mathematical statistics.

3. Adopt high-subdivision drive stepper motor and 16-bit microcomputer processor.

4. Adopt LCD screen with backlight display function.

5. The main control board and subdivision driver board all adopt SMD technology and have a compact structure.

6. RS232 interface is provided, and the printing interval can be set by the user.

Product structure diagram

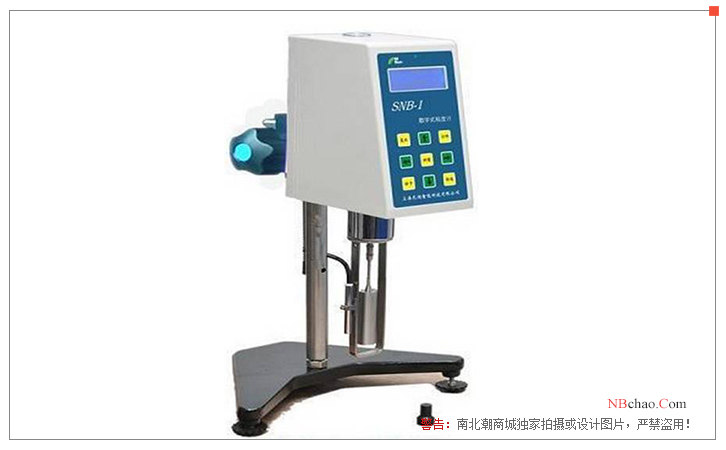

Product display diagram

Packing list：Host x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
