ANDE SNB-AI Digital Viscometer 0.5~ 6000000mPa · s CVT

Digital display, Measurement range 0.5~ 6000000mPa · s, Rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.1~ 99.9rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S, Power supply Voltage 110V/220V, Interface RS232C, Operating temperature 5~ 35 ℃, Communication baud rate 9600.
Model：
Certificate
Contact
Details SPEC VIDEO
Similar products

AnDe SNB-AI Digital ViscometerSPEC

AnDe SNB-AI Digital ViscometerDetails

AnDe SNB-AI Digital ViscometerPacking list

SKU
NB008017
Display mode
digital explicit
Measurement range
0.5~6000000mPa·s
Rotor specification
1 #, 2 #, 3 #, 4 #(0 #optional)
Rotor speed
0.1~99.9rpm
reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power supply Voltage
110V/220V
Interface
RS232C
Operating temperature
5~35℃
communication baud rate
9600
Input Frequency
50Hz/60Hz
Rotation speed Control mode
Continuously variable speed (without gear drive)
Allowable Relative Humidity
≤80%
SNB-AI
Digital Viscometer
Digital display, Measurement range 0.5~ 6000000mPa · s, Rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.1~ 99.9rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S, Power supply Voltage 110V/220V, Interface RS232C, Operating temperature 5~ 35 ℃, Communication baud rate 9600.
ANDE SNB-AI Digital Viscometer 0.5~ 6000000mPa · s CVT Picture

Introduction

In addition to the performance and characteristics of NDJ-series viscometers, SNB-AI digital viscometers have a wider measurement range, the speed rotation adopts the whole process of stepless speed change, and can be fully automated data acquisition through the PC interface, and connect to the computer to complete a number of mathematical statistics analysis tasks such as automatic operation, data storage and historical data comparison

Product Applications

The SNB-AI digital viscometer is used to measure the viscous resistance of liquids and the dynamic viscosity of liquids. It is widely used to measure the viscosity of various fluids such as oils, foods, paints, coatings, papermaking, cosmetics, chemicals, capsules, adhesives and so on.

Features

1. The whole process is stepless and the speed can be continuously changed, and the fully automatic data acquisition can be carried out through the PC interface.

2. Link PC to carry out automatic operation, data storage and historical data comparison and other mathematical statistics.

3. Adopt high-subdivision drive stepper motor and 16-bit microcomputer processor.

4. Adopt LCD screen with backlight display function.

5. The main control board and subdivision driver board all adopt SMD technology and have a compact structure.

6. RS232 interface is provided, and the printing interval can be set by the user.

Product structure diagram

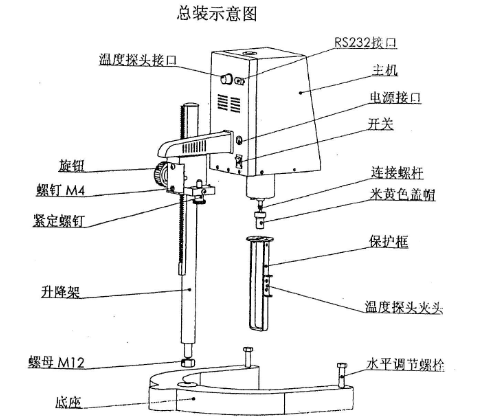

Structure diagram of SNB-AI digital viscometer

Product display diagram

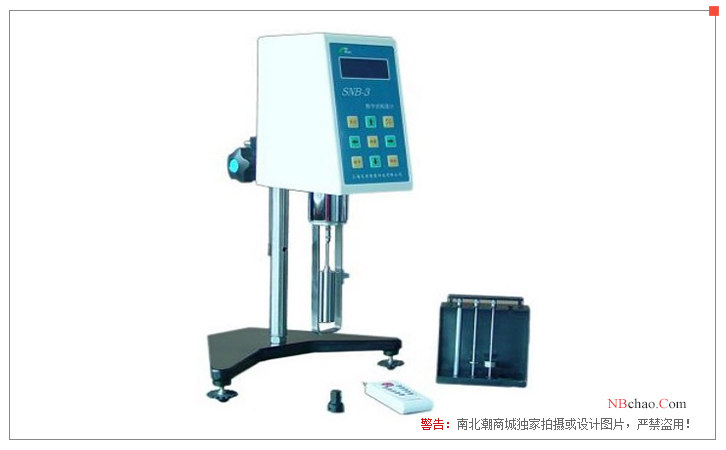

Illustration of the SNB-AI digital viscometer

FAQ
QHow many rotors does the SNB-AI Digital Viscometer come with?
A Hello, there are four rotors 1 #, 2 #, 3 #, and 4 #, and the 0 #rotor needs to be purchased separately.
QCan this digital Viscometer be applied to GB/T22427.7?
A OK
