ANDE CH-0506 Thermostatic Water Bath Temperature range -5~ 100 ℃

CH-0506

Thermostatic Water Bath

Introduction

Arda CH-0506 thermostatic sink is a microcomputer temperature control super thermostat, using a monolithic microprocessor controller, self-tuning PID adjustment, imported platinum resistance temperature measurement, high temperature control accuracy, small fluctuation, stable and reliable operation, convenient and safe operation. It is widely used in bioengineering, food, chemical metallurgy, petroleum and other fields. To provide users with high-precision, controlled, uniform temperature constant temperature field source, is a satisfactory constant temperature equipment for research, colleges and universities, factories, laboratories, and quality supervision departments.

Features

1. CH-0506 constant temperature sink adopts intelligent microcomputer control, simple operation, good temperature stability, upper and lower temperature overtemperature alarm, PID automatic control.

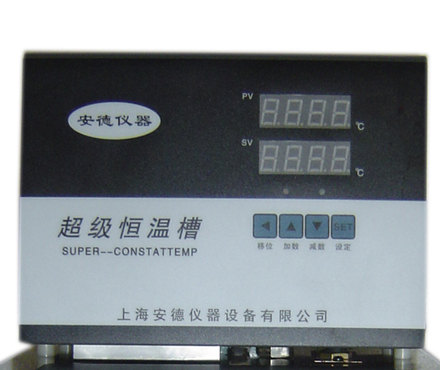

2. Adopt two colors: red and green in the double window, the measurement value of the upper window is red, the setting value of the lower window is green, and the LED display.

3. The intelligent microcomputer can correct the temperature measurement deviation and make the digital display resolution reach 0.01°C.

4. The PID of special users can be self-adjusting.

5. There is internal and external circulation, and the constant temperature liquid in the tank can be introduced externally during the external circulation, and the second constant temperature field can be established.

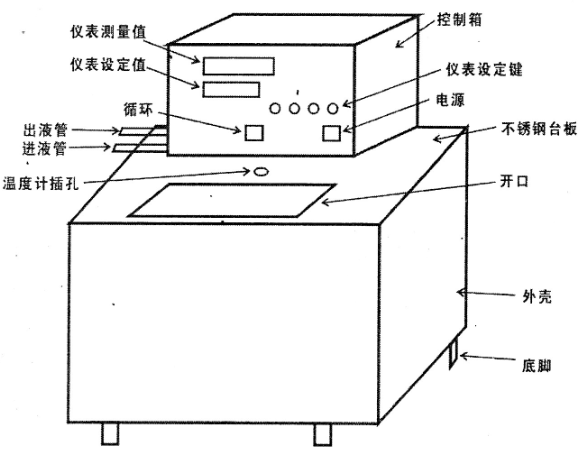

Product structure diagram

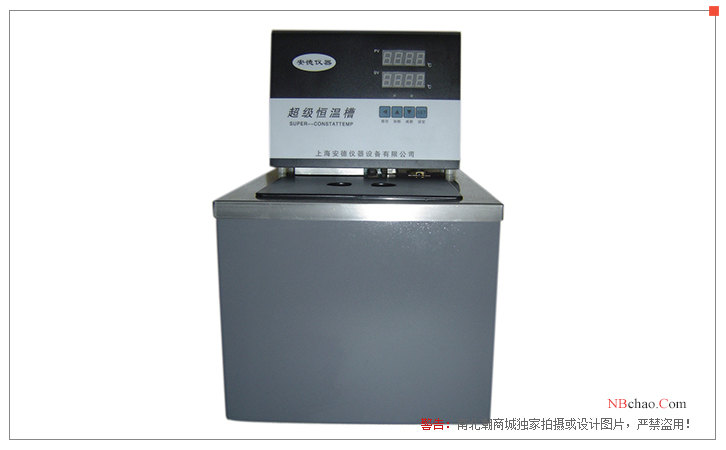

Product display diagram

Packing list：Host x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
