Pushen ZS-100 inks manual Ink Proofer 100LPI line number manual Ink Proofer
SE
ZS-100
Pushen ZS-100 Manual Ink ProoferSPEC
Pushen ZS-100 Manual Ink ProoferDetails
Pushen ZS-100 Manual Ink ProoferPacking list
- SKU
- NB000809
- number of reticulated lines
- 100 lines
- Hole shape
- quadrilateral pyramid
- Anilox roll material
- stainless steel
- print width
- 70mm
- application
- Flexo printing, gravure printing
Introduction
Pushen ZS (28011) color developing wheel is a manual color developing wheel with 100 lines. It is mainly used for ink color proofing of ink, flexo printing, gravure printing, etc. The ink supply of the anilox roller decreases as the number of anilox lines increases. . The printing surface width of Pushen ZS color wheel is 70mm, which is a necessary tool for gravure printing production.
Specifications
| model | Number of lines (LPI) | Printing surface width | composition |
| ZS(28011) | 100 | 70mm | Handle, metal anilox roller, rubber roller |
Note: The color wheel line number unit is represented by LPI, that is, Lines per Inch: Lines per square inch.
( The number of lines of the metal anilox roller is inversely proportional to the thickness of the wet film, that is, the greater the number of lines, the smaller the thickness of the wet film )
Features
1. The ZS (28011) color developing wheel is composed of a metal anilox roller and a rubber roller. The printing surface width is 70mm and the cell shape is a quadrangular pyramid.
2. Novel style, simple to use, convenient and intuitive, and strong proofing authenticity.
3. Gravure printing, aniline ink or other liquid coatings can be applied to various substrates to produce reproducible samples.
4. The color wheel line number unit is represented by LPI, that is, Lines per Inch: lines per square inch.
Actual pictures
Pushen/Pushen ZS(28011) color wheel packaging picture

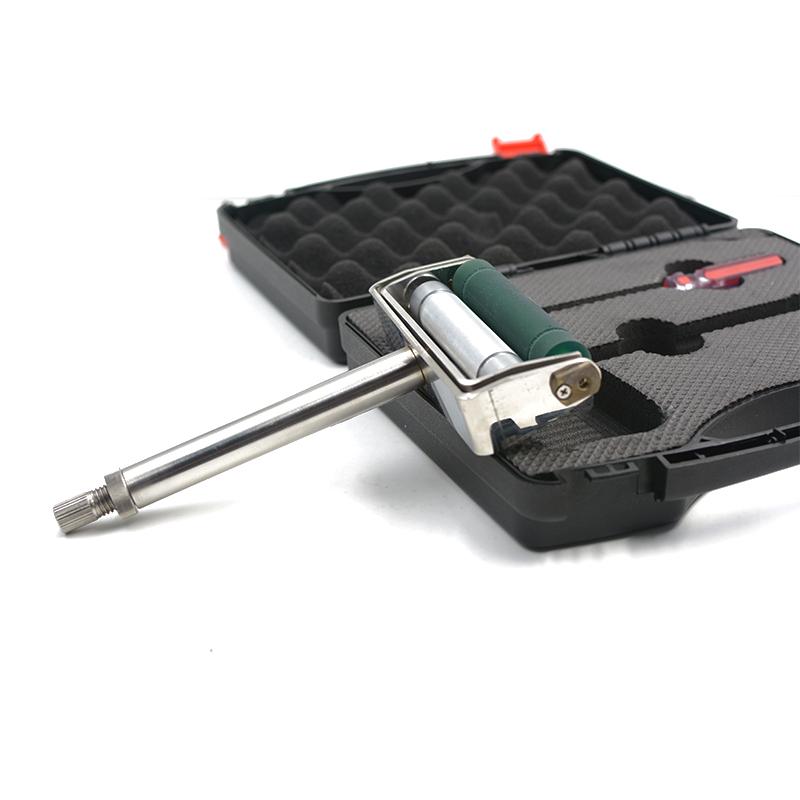

Pushen/Pushen ZS(28011) color wheel packaging interior picture

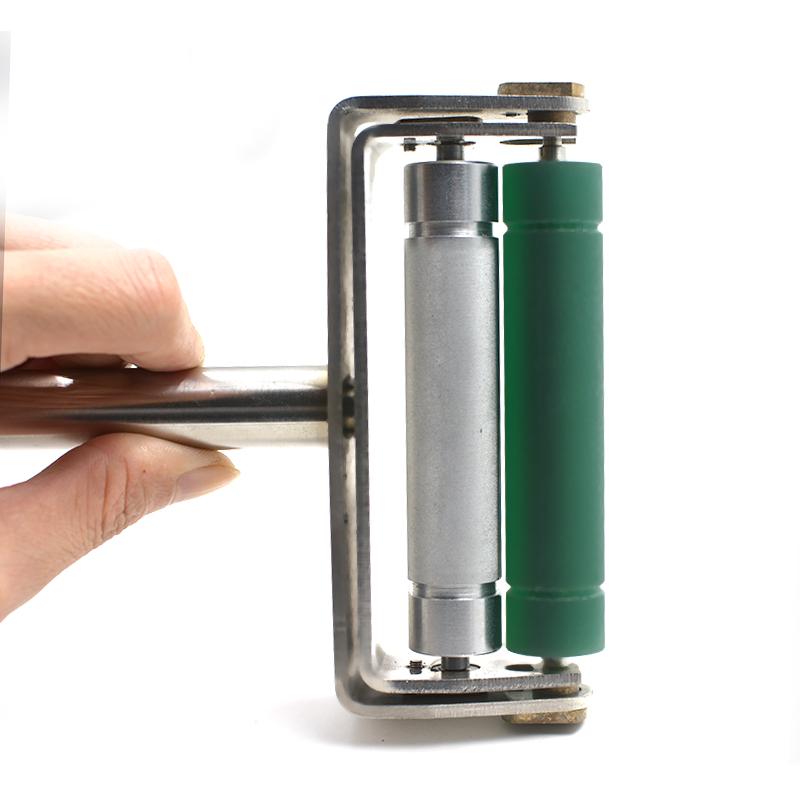

Pushen/Pushen ZS(28011) color wheel main picture

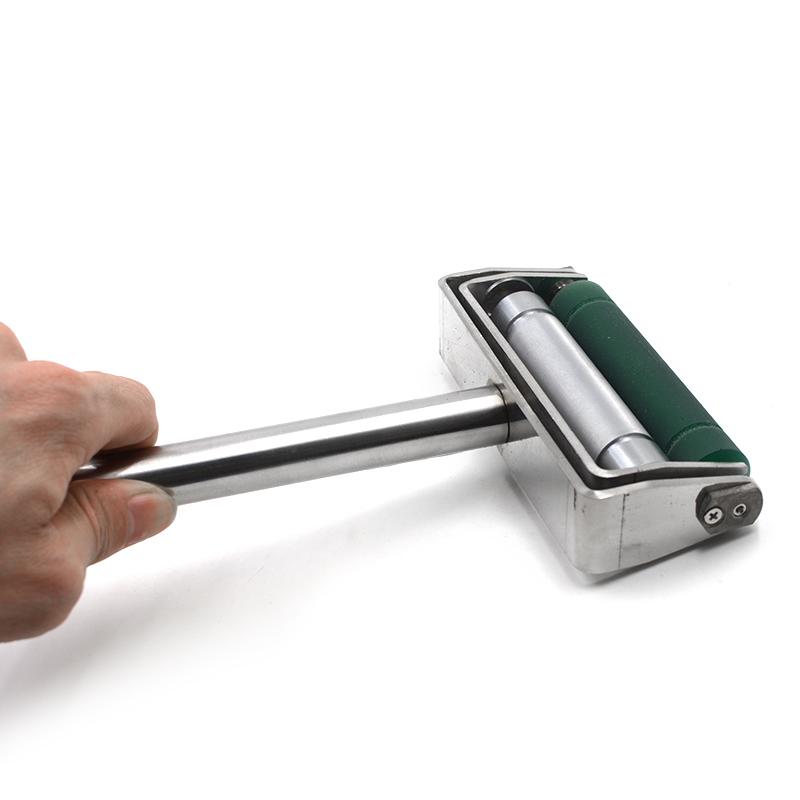

Pushen/Pushen ZS(28011) color wheel detail picture 1

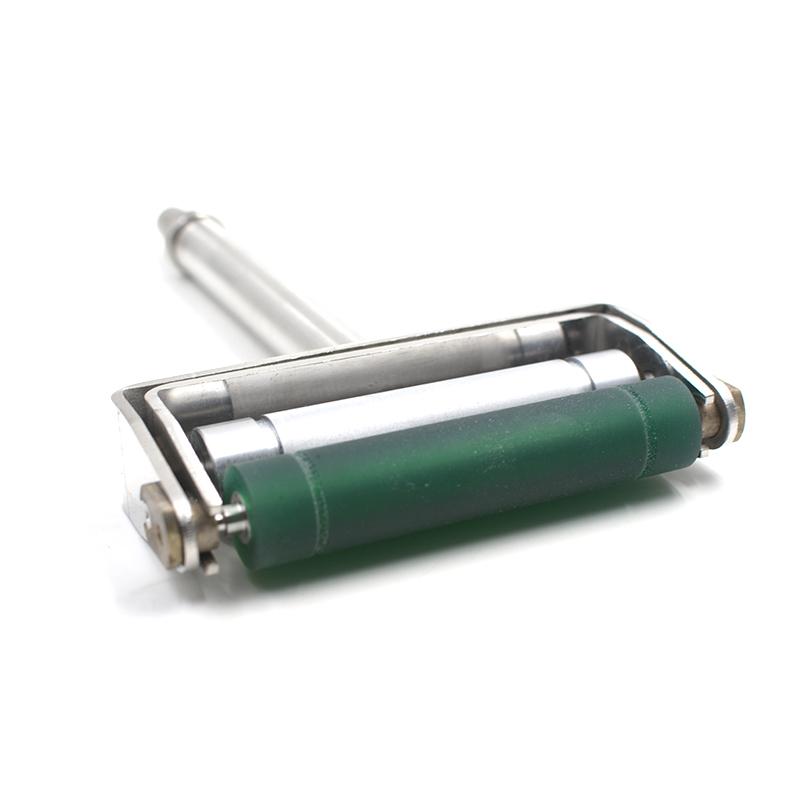

Pushen/Pushen ZS(28011) color wheel detail picture 2
Pushen/Pushen ZS(28011) color wheel product certificate
How to maintain the color wheel
1. Check the mesh regularly using a mesh microscope.
2. Check the viscosity of the ink and clean the anilox roller in time.
3. When the ZS (28011) color wheel anilox roller is not in use, it should be stored in an anilox roller protective cover to keep the surface clean and play a buffering and vibration-absorbing role.
4. Use a good scraper to control the pressure between the scraper and the anilox roller. If possible, put a magnetic filter in the ink tank to reduce ink impurity particles, reduce the wear of the anilox roller, and extend the service life.
Full model parameter list
| model | Number of lines of anilox roller | Printing surface width | composition |
| ZS(2 8 011) | 100( LPI ) | 70mm | Handle, metal anilox roller, rubber roller |
| ZS( 2 8 0 12) | 120( LPI ) | 70mm | Handle, metal anilox roller, rubber roller |
| ZS( 2 8 0 13) | 150( LPI ) | 70mm | Handle, metal anilox roller, rubber roller |
| ZS( 2 8 0 1 4 ) | 160( LPI ) | 70mm | Handle, metal anilox roller, rubber roller |
| ZS( 2 8 0 15) | 180( LPI ) | 70mm | Handle, metal anilox roller, rubber roller |
| ZS( 2 8 0 16) | 200( LPI ) | 70mm | Handle, metal anilox roller, rubber roller |
| ZS( 2 8 0 17) | 220( LPI ) | 70mm | Handle, metal anilox roller, rubber roller |
| ZS( 2 8 0 18) | 250( LPI ) | 70mm | Handle, metal anilox roller, rubber roller |
| ZS( 2 8 0 19) | 300( LPI ) | 70mm | Handle, metal anilox roller, rubber roller |
