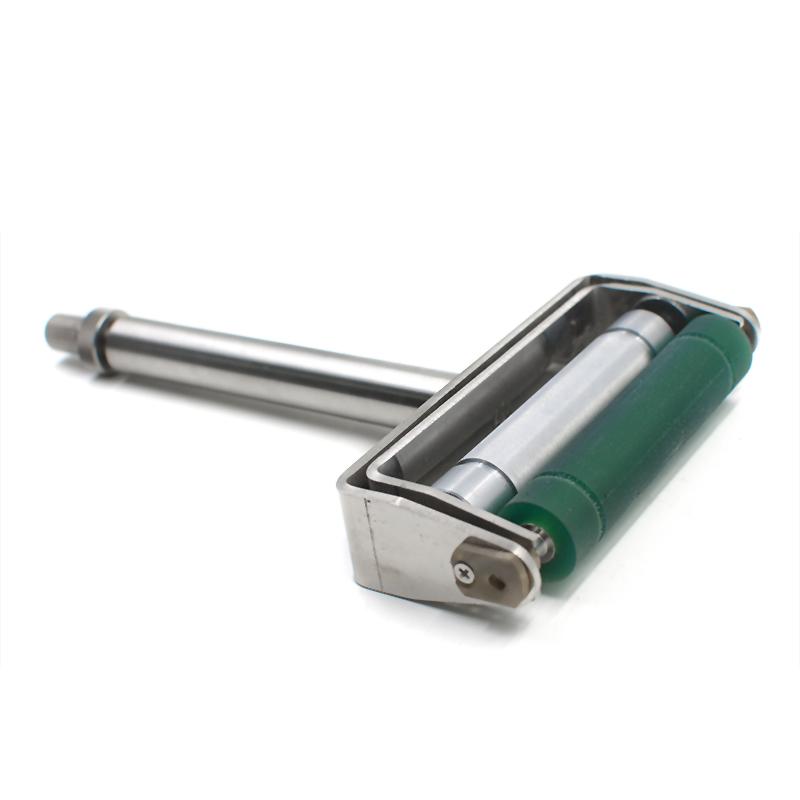

Pushen ZS-180 manual Ink Proofer 180LPI line count, gravure color display instrument

ZS-180

Manual Ink Proofer

180LPI line number; green rubber roller; 70mm print width; quadrangular pyramid mesh hole shape.

Introduction

Pushen ZS ( 2 8 0 15) color wheel can apply gravure printing, aniline ink or other liquid coatings on various substrates to obtain reproducible samples. The line number of the anilox roller of ZS (20815) color development wheel is 180LPI (line number/square inch). The color wheel is equipped with a handle for easier coating, simple and convenient use and good proofing effect. Professional display color wheel structure design, more ergonomic.

Specifications

Note: The line number unit of the color wheel is represented by LPI, that is, Lines per Inch: line number/per square inch.

( The number of lines of the metal anilox roller is inversely proportional to the thickness of the wet film, that is, the larger the number of lines, the smaller the thickness of the wet film )

Features

1. Pushen Zhan color wheel is composed of metal anilox roller, rubber roller and handle, and adopts the shape of quadrangular pyramid mesh.

2. Pushen Zhan color wheel is novel in style, easy to use, convenient and intuitive in effect, and strong in proofing authenticity.

3. The color wheel is a tool required for gravure printing and aniline ink production, and the width of the printing surface is 70mm.

4. The unit of color wheel line number is represented by LPI, that is, Lines per Inch: line number/per square inch.

real shot

Color wheel maintenance method

1. Use a mesh microscope to check the mesh regularly

2. Check the ink viscosity and clean the anilox roller in time

3. When the ZS ( 2 8 0 15) color development wheel anilox roller is not in use, use the anilox roller protective cover for storage

4. Use a good scraper and control the pressure between the scraper and the anilox roller. If conditions permit, put a magnetic filter in the ink tank to reduce the impurity particles in the ink and reduce the wear of the anilox roller. extend its service life.

How to choose the appropriate anilox roll line number?

1. Solids, lines, text, etc. require a large amount of ink, so choose a lower number of screen lines; a color screen pattern requires a small amount of ink, and choose a higher number of screen lines.

2. The fineness of printed matter depends on the number of screen dots. It is better to maintain a ratio of about 4:1 between the number of screen lines of the ZS ( 2 8 0 15) color wheel anilox roller and the number of screen dots of the printing plate.

3. Generally, if the ink absorption is high, choose the one with a low number of texture lines; if the ink absorption is small, choose the one with a high number of texture lines.

Full model parameter table

Packing list：Manual Ink Proofer (including metal reticulated and rubber) x1, cross screw driver x1, instruction manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
