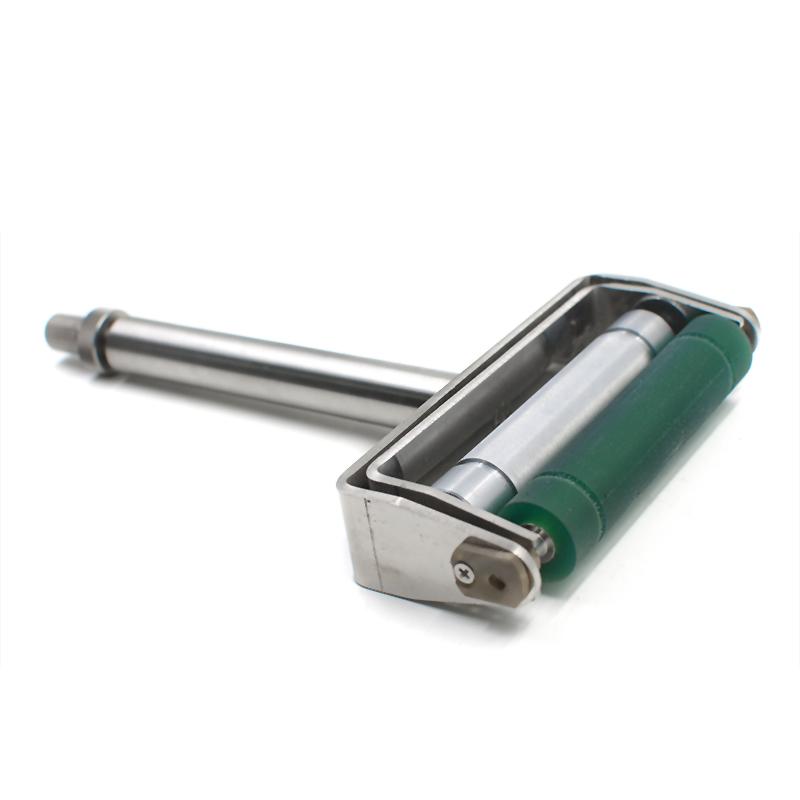

Pushen ZS-250 manual Ink Proofer 250LPI line count, proofing roller

ZS-250

Manual Ink Proofer

The number of reticulated lines is 250 lines, the shape of the mesh hole is quadrangular pyramid, the anilox roller is made of stainless steel, the width of the printing surface is 70mm, and flexo printing and gravure printing are applied.

Introduction

Pushen ZS(28018) color development wheel has an anilox roll line number of 250LPI, which is suitable for preparing reproducible samples of gravure printing, ink, and paint. It has a simple structure, easy operation, and uniform coating film. Pushen Zhan color wheel can be widely used in ink color proofing of ink, flexo printing and gravure printing, etc. The shape of the anilox roller of Pushen Zhan color wheel is a square pyramid, which is completed by electronic engraving technology.

Specifications

Note: The line number unit of the color wheel is represented by LPI, that is, Lines per Inch: line number/per square inch.

( The number of lines of the metal anilox roller is inversely proportional to the thickness of the wet film, that is, the larger the number of lines, the smaller the thickness of the wet film )

Features

1. ZS ( 2 8 0 18) color development wheel The color development wheel is composed of a metal anilox roller and a rubber roller, the width of the printing surface is 70mm, and the shape of the cells is a square pyramid.

2. The style is novel, easy to use, convenient and intuitive, and the authenticity of proofing is strong.

3. Gravure, aniline ink or other liquid coatings can be applied to various substrates to obtain reproducible samples.

4. The unit of the number of lines of the color wheel is represented by LPI, that is, Lines per Inch: number of lines/per square inch.

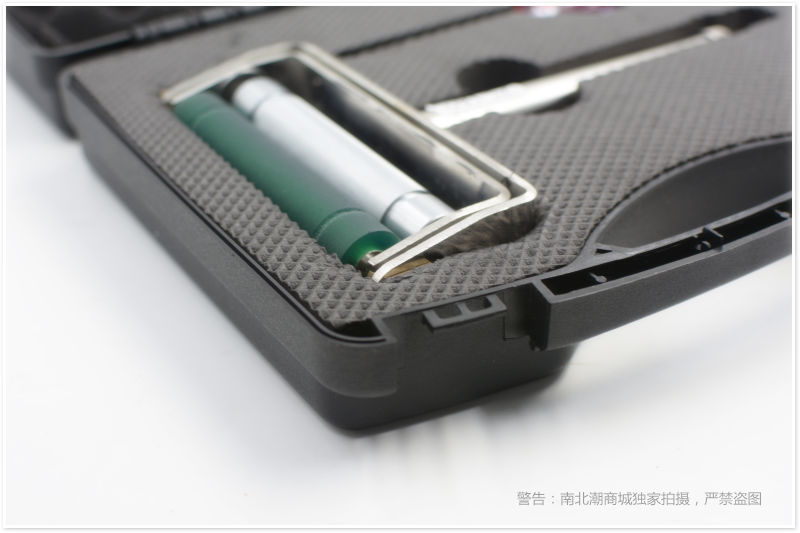

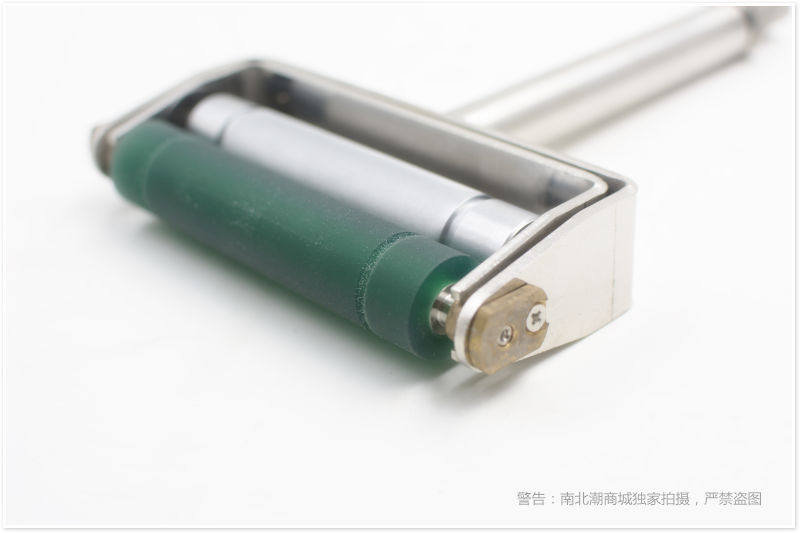

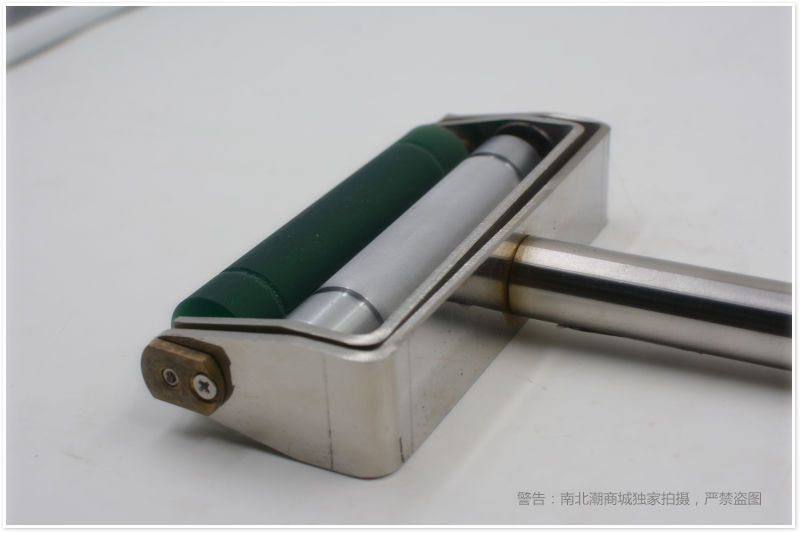

real shot

How to maintain the color wheel

1. Use a mesh microscope to check the mesh cells regularly.

2. Check the ink viscosity and clean the anilox roller in time.

3. When the ZS ( 2 8 0 18) color wheel anilox roller is not in use, it should be stored with an anilox roller protective cover to keep the surface clean and play the role of cushioning and shock absorption.

4. Use a good scraper to control the pressure between the scraper and the anilox roller. If possible, put a magnetic filter in the ink tank to reduce ink impurity particles, reduce the wear of the anilox roller, and prolong the service life.

Full model parameter table

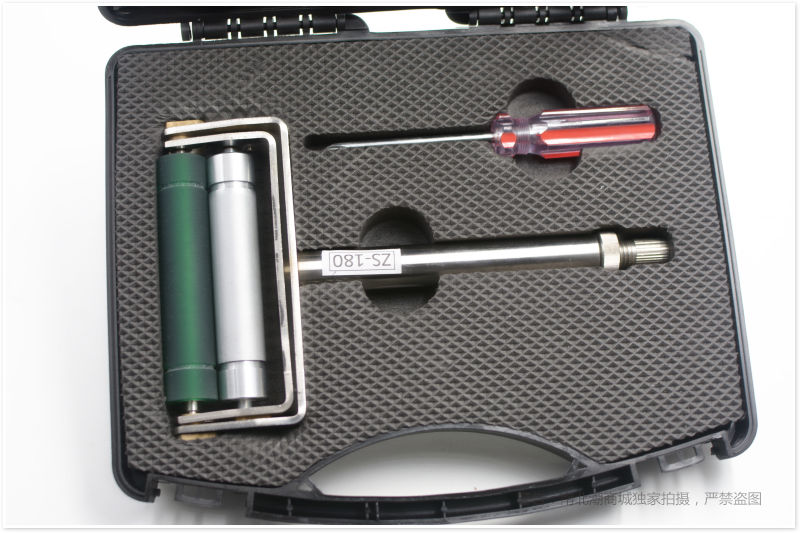

Packing list：Manual Ink Proofer (including metal reticulated and rubber) x1, cross screw driver x1, instruction manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
