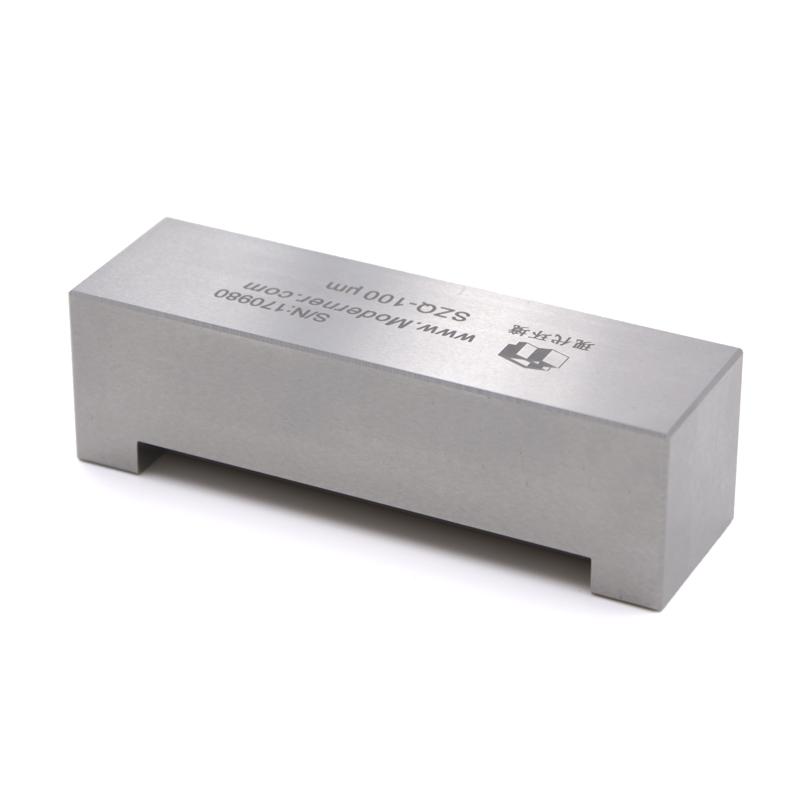

MODERNER SZQ-75 (GB Bird-type) Single Sided Film Applicator 75μm slurry Coating Applicator

SZQ-75 (GB Bird-type)

Film Applicator

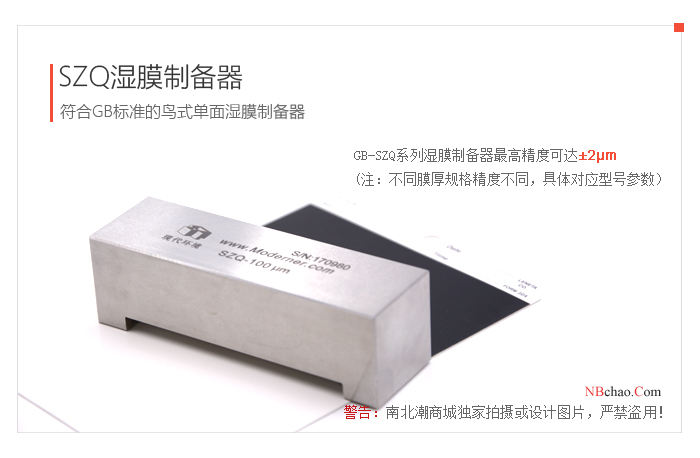

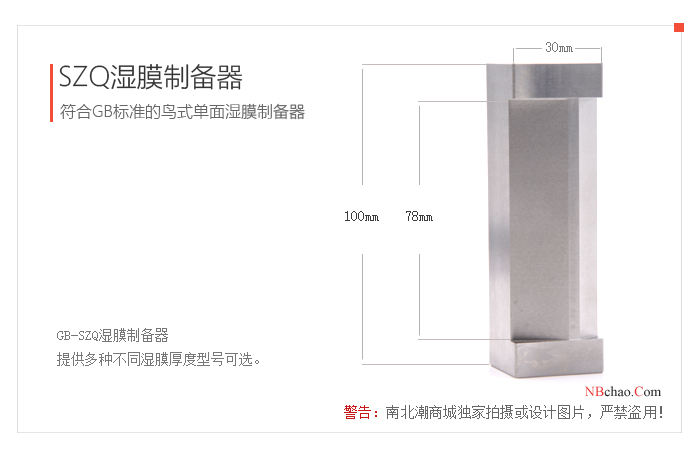

Single-sided GB Bird-type, wet film thickness 75μm, Spreader width 78mm, accuracy +/- 3μm, material 9Cr18Mo high carbon chromium stainless steel, GB standard.

Introduction

MODERNER SZQ-75 (GB bird type) wet Film Applicator is a bird-shaped single-sided wet Film Applicator that meets the national standard . It is made of high-carbon chromium stainless steel with a hardness of HRC48±2. It is suitable for sample preparation in the paint and ink industry to determine the hiding power, color, gloss and other properties of paint samples. The wet film thickness that can be prepared by the SZQ-75 single-sided wet Film Applicator is 75 μm. The single-sided wet Film Applicator controls the thickness of the wet film through the depth of the groove, and the thickness of the wet film that can be prepared by different specifications of the applicator is different.

Material and Hardness

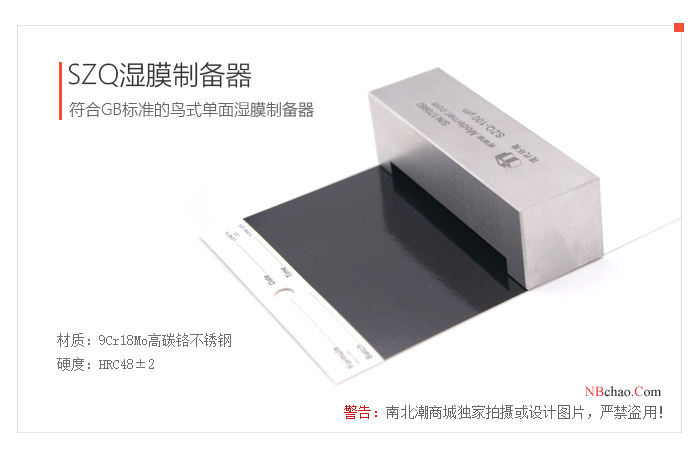

MODERNER SZQ-75 (GB bird type) single-sided Wet Film Applicator is made of 9Cr18Mo high-carbon chromium stainless steel with a hardness of HRC48±2.

Steps

1) Place the template on the coating platform and fix it, and it must not move when the wet Film Applicator slides over.

2) According to the required wet film thickness, select a suitable type of wet Film Applicator, and place it on the short side of the template, close to parallel or at a specified position.

3) Then pour about 5 ml of the sample in front of the wet Film Applicator, press both ends of it with your fingers, and slide at a constant speed of 150 mm/s to coat a wet film with a required thickness.

4) The wet Film Applicator should be cleaned and dried with solvent after use, and the surface should be coated with oil or petroleum jelly.

CAUTION: Keep wet Film Applicator dry when not in use.

Application

SZQ-75 (GB bird type) single-sided wet Film Applicator is used to coat wet film with specified thickness, suitable for coating, ink, color paint and other industries.

Pictures

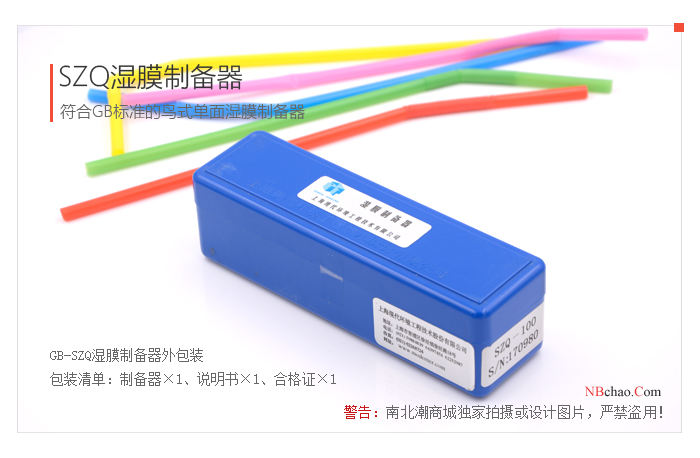

Packing list：Applicator x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
