MODERNER SZQ-200 (GB Bird-type) Wet Film Applicator Micron film formation device 200μm

SZQ-200 (GB Bird-type)

Film Applicator

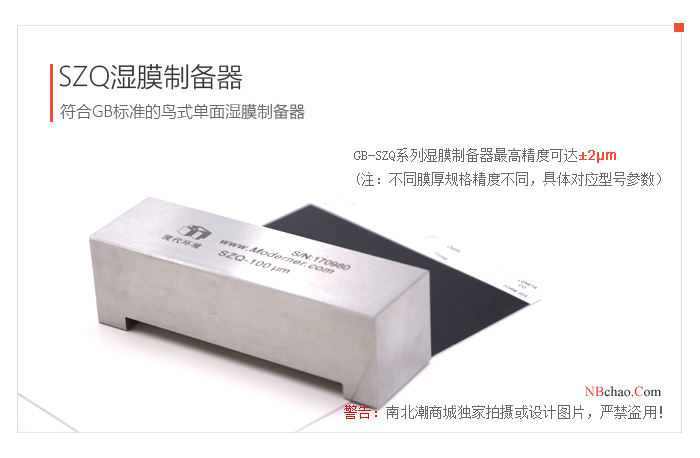

Single-sided Bird-type, Film thickness 200μm, Spreader width 78mm, accuracy +/- 5μm, stainless steel material.

Introduction of SZQ-200 wet Film Applicator

MODERNER SZQ-200 (GB bird type) wet Film Applicator is a single-sided bird type wet Film Applicator. The Wet Film Applicator is made of high-grade stainless steel, which has the advantages of high hardness, corrosion resistance and wear resistance. The Wet Film Applicator prepares samples with different wet film thicknesses through different groove depths to measure the hiding power, color and other properties of the samples and control product quality. The groove width of SZQ-200 is 78mm, and the thickness of the coating film is 200 microns.

Material and Hardness

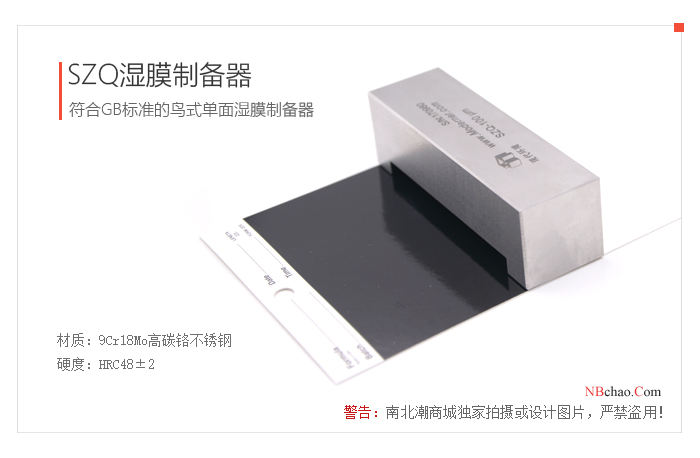

SZQ-200 (GB bird type) wet Film Applicator is made of 9Cr18Mo high-carbon chromium stainless steel with a hardness of HRC48±2.

operation method

1) Put the sample on the platform, fix it, and do not move when the Wet Film Applicator slides over.

2) According to the required wet film thickness, select a Wet Film Applicator and place it on the short side of the template, close to parallel or at a specified position.

3) Then pour about 5 ml of the sample on the front of the SZQ-200 (GB bird type) wet Film Applicator, press both ends of it with your fingers, and slide at a constant speed of 150 mm/s, that is, to coat as required thick wet film.

4) After use, wash and dry with a suitable solvent, and coat the surface with oil or petroleum jelly.

Pictures

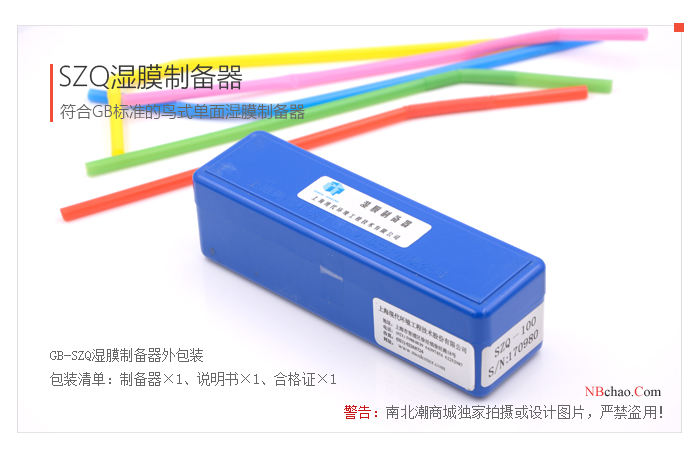

Packing list：Applicator x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
