MODERNER Frame 50/100/150/200 Large Frame Applicator Stainless Steel Wet Film Applicator 90mm

Frame type 50/100/150/200 (groove width 90mm)

Large Frame Applicator

Wet film thickness 50/100/150/200μm, Spreader width 90mm, material: 9Cr18Mo high carbon chromium stainless steel, suitable for all kinds of prepative film.

Introduction

MODERNER is a good brand in CHINA. MODERNER frame type 50/100/150/200 large frame Applicator is a frame type coater made of high-grade stainless steel that can be coated on four sides, frame type 50/100/150/ The wet film thickness of the 200 large frame prep is 50 μm, 100 μm, 150 μm, 200 μm. The groove width of the frame Applicator is 90mm, which is suitable for the preparation of coating films.

Parameter comparison

material use

Frame type 50/100/150/200 large frame Applicator is made of 9Cr18Mo stainless steel, which has the characteristics of wear resistance and corrosion resistance.

Hardness value

The hardness of the Applicator is HRC48±2

Steps

1. Put the template on the platform and fix it so that the Frame Applicator does not move when it slides over.

2. Select the preparation of the appropriate wet film thickness, and place it on the short side of the sample, close to parallel or at a specified position.

3. Pour about 5 ml of sample in front of the frame-type 50/100/150/200 large frame-type Applicator, press both ends of the Applicator with your fingers, slide at a constant speed of 150 mm/s, and finally get the desired The wet film of the wet film thickness.

4. After use, the frame 50/100/150/200 large frame Applicator should be cleaned with a suitable solvent, and the surface should be coated with oil or Vaseline.

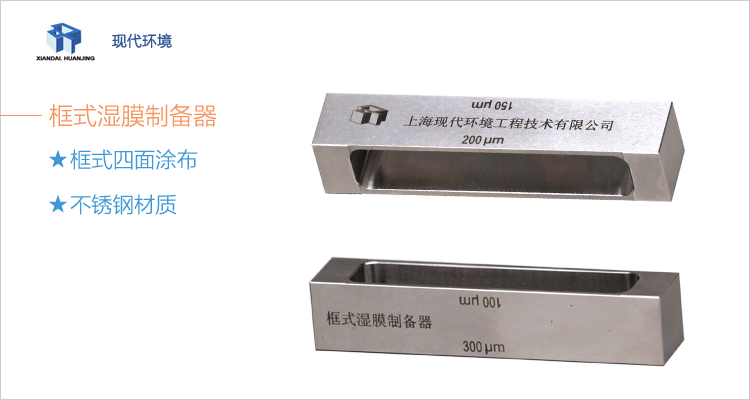

Pictures

Packing list：Applicator x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
