MODERNER Frame Type 100/200/300/400 Small Frame Type Applicator Groove Width 100mm

Frame type 100/200/300/400 (groove width 100mm)

Small Frame Applicator

Overview of the Small Frame Preparator

The wet film thickness of the MODERNER frame-type 100/200/300/400 small Frame Applicator is 100μm, 200μm, 300μm, 400μm. It is a four-sided rectangular applicator with a frame structure, simple coating and convenient cleaning. The groove width of the small frame type preparer is 100mm, and the number of grooves is 4. It is made of stainless steel, has good corrosion resistance, and does not rust.

Parameter comparison

Advantages of use

Frame type 1 00/200/300/400 small frame type preparer is used to coat wet films of specified thickness to measure the covering power and color of the sample or prepare samples, etc. It is suitable for the coating and ink industry.

product operations

1) Place the sample on the platform and fix it, ensuring that the frame 1 00/200/300/400 small Frame Applicator cannot move when it slides over.

2) According to the experimental requirements, select a small Frame Applicator with appropriate wet film thickness and place it on the short side of the sample, close to parallel or at a specified position.

3) In framePour about 5 ml of sample into the front of the 100/200/300/400 small frame Applicator.

4) Press both ends of the preparer with your fingers and slide it at a constant speed of 150 ml/second to obtain a wet film of the required thickness.

5) After use, the preparer should be cleaned immediately with a suitable solvent and coated with oil or petroleum jelly.

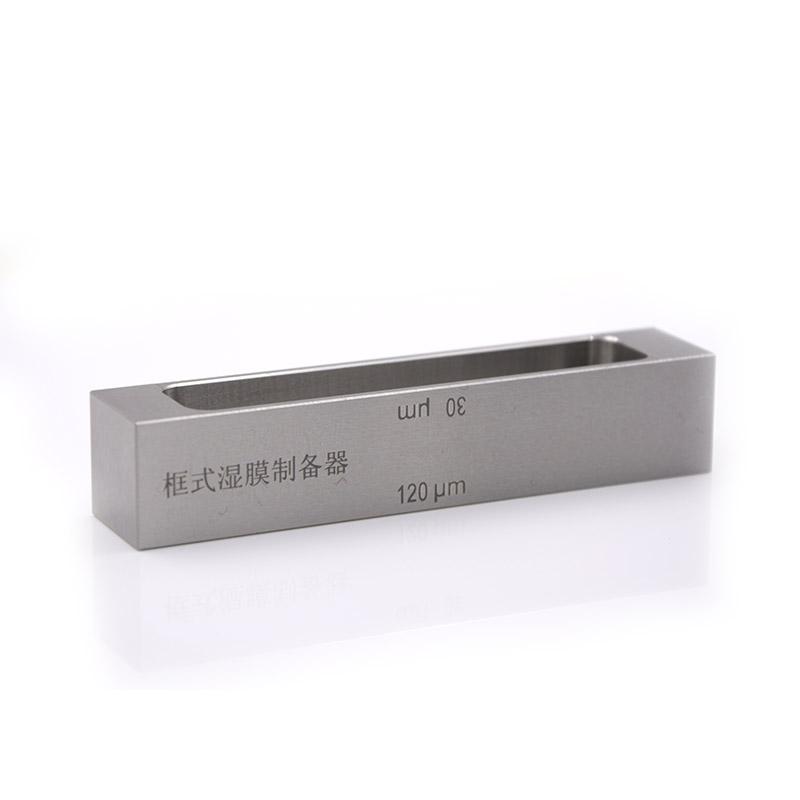

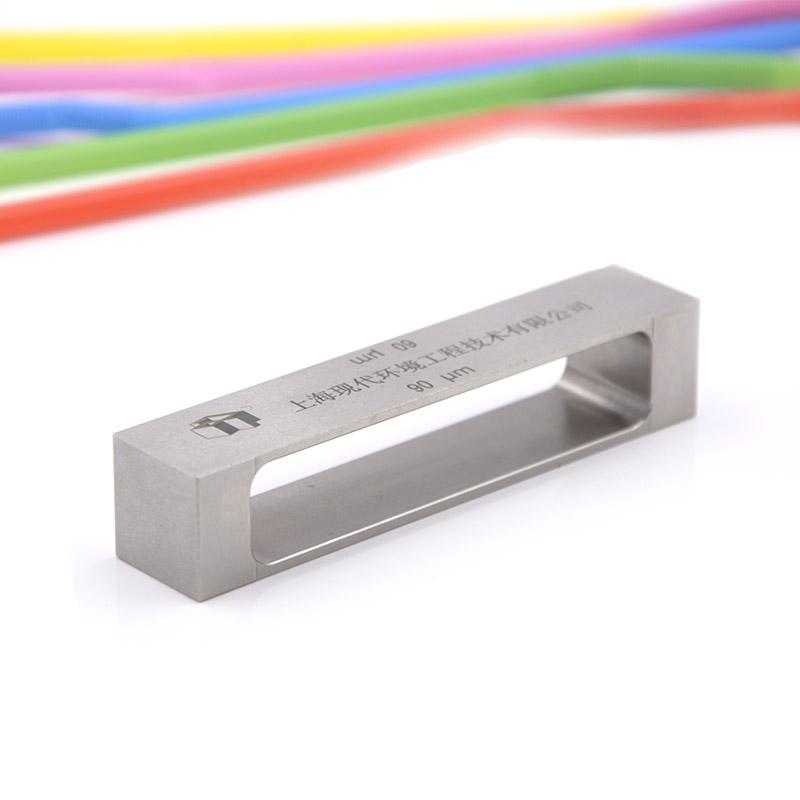

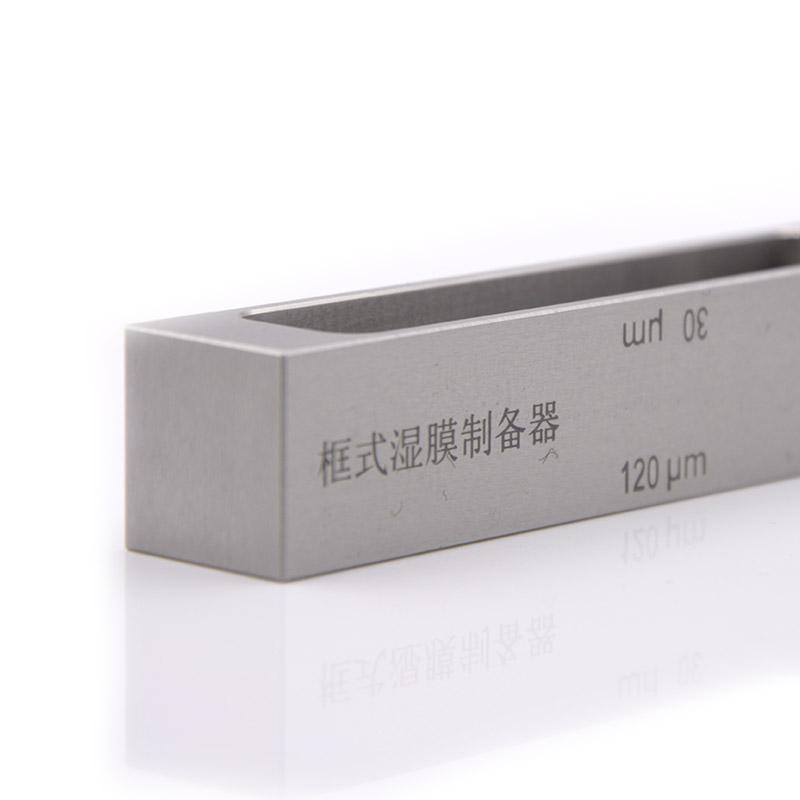

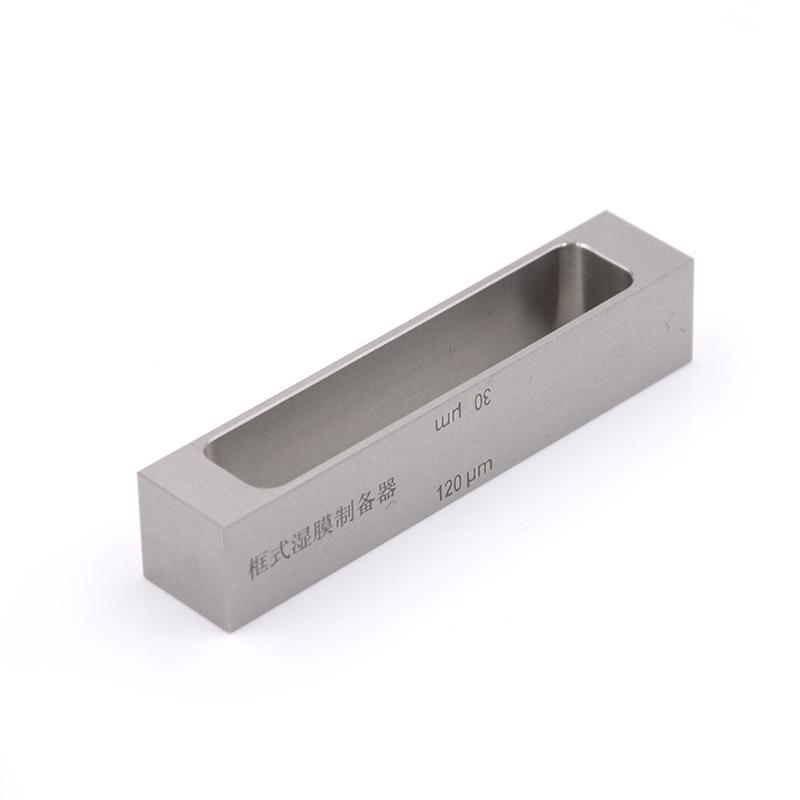

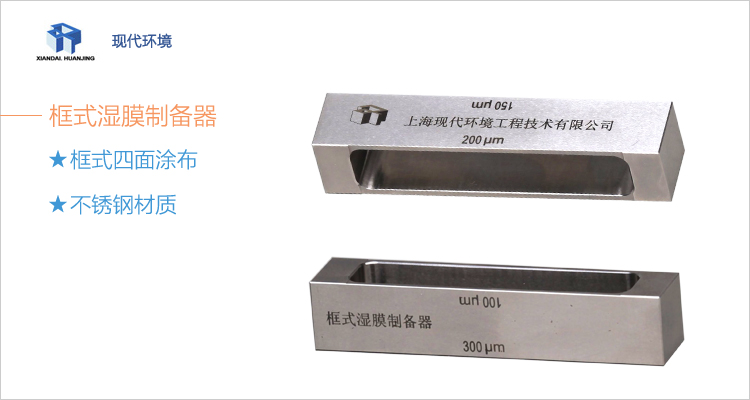

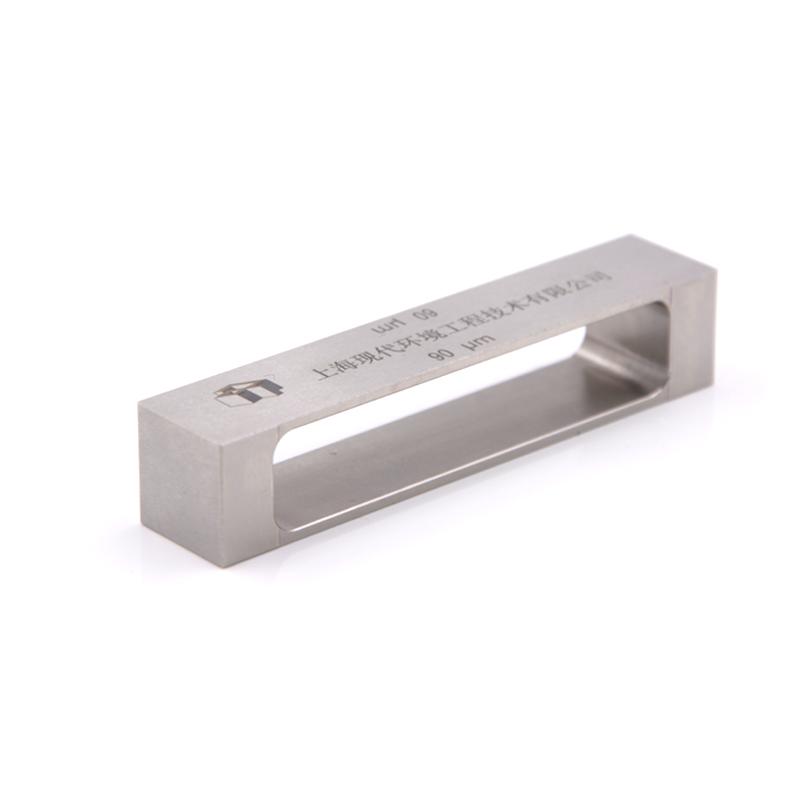

Product actual pictures

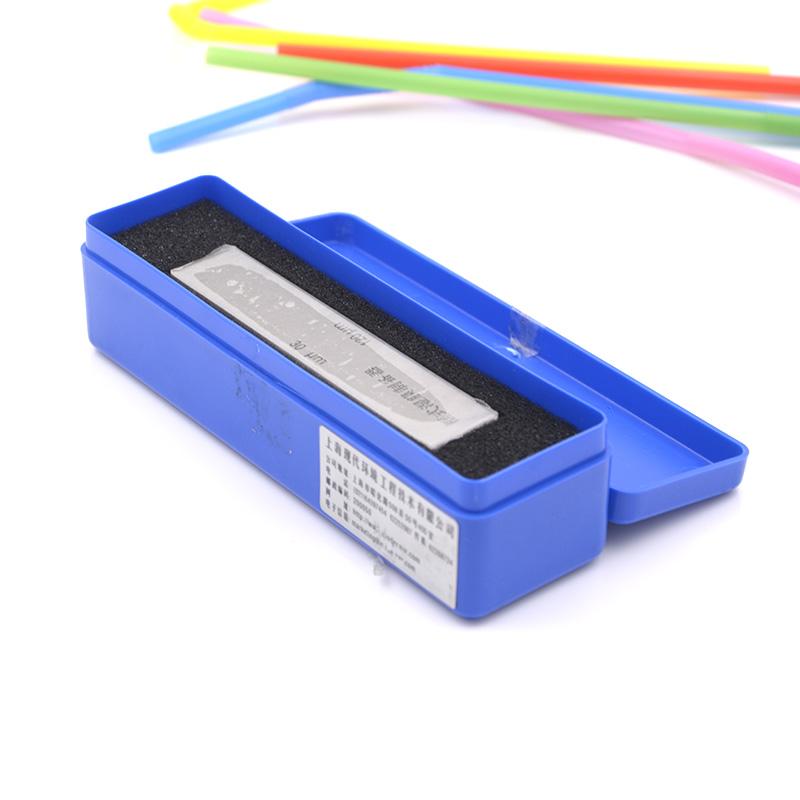

Packing list：Applicator x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
