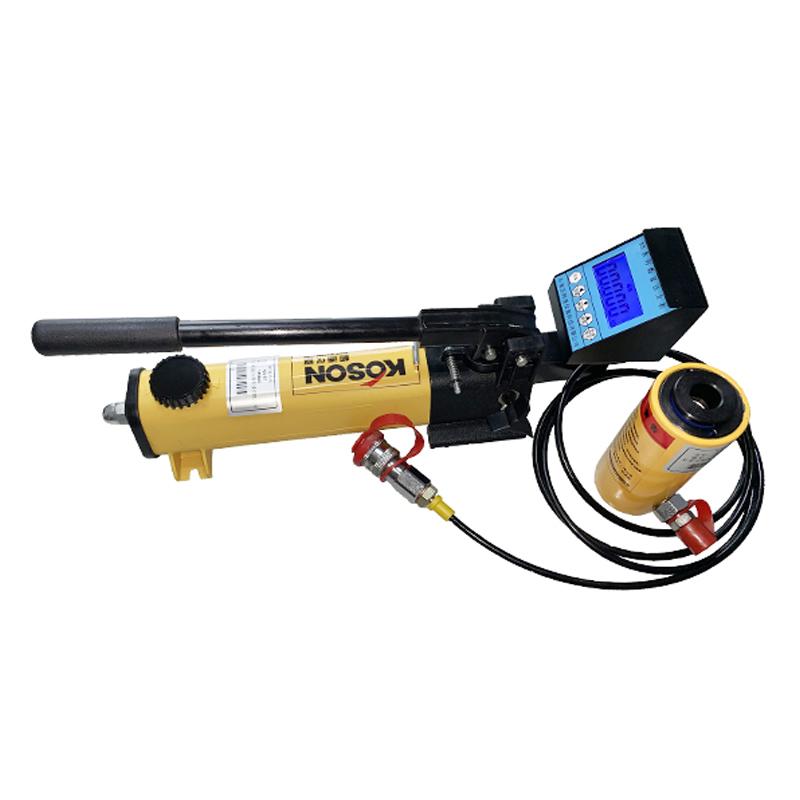

KOSON KS-5T (light) bolt puller Measurement range 0~50KN

KS-5T

Light bolt puller

Introduction

KOSON KS-5T bolt puller is composed of imported light hand pump, small hollow hydraulic cylinder, digital pressure gauge, high-pressure oil pipe with quick connector (2.5 meters), matching options (anchor, conversion head rod) and portable carrying case, the hydraulic cylinder is hollow self-centering, the value display part of this instrument is an integrated multi-function display instrument can directly read the tensile force value (kN) and has automatic calculation, peak holding, storage and query functions, with backlight display.

Features

1. The weight of the whole machine is only 11kg

2. The power supply is a high-capacity rechargeable lithium battery;

3. The numerical 10-segment polyline is corrected to improve the accuracy of the instrument

4. Peak value holding, automatic shutdown without operation, LCD lighting function;

5. Imported sealing ring, durable

6. Ultra-low power consumption design, continuous working time can exceed 200 hours

7. The surface of the hydraulic cylinder is corrosion-resistant electrostatic spraying, nickel-plated piston and sliding sleeve

8. Automatic spring return, simple structure

Model series

Application

KOSON KS-2T planting reinforcement puller is a self-developed product of KOSON, which is mainly used for testing, fine steel bars, expansion bolts, chemical anchors, anchor pull-out force equipment and equipment, and can also be used for on-site pull-out force testing (test) of glass curtain wall. Reinforcement units, supervision units, universities, etc.).

Meets standards

GB50367-2006 Code for Design of Reinforcement of Concrete Structures

JGJ145-2013

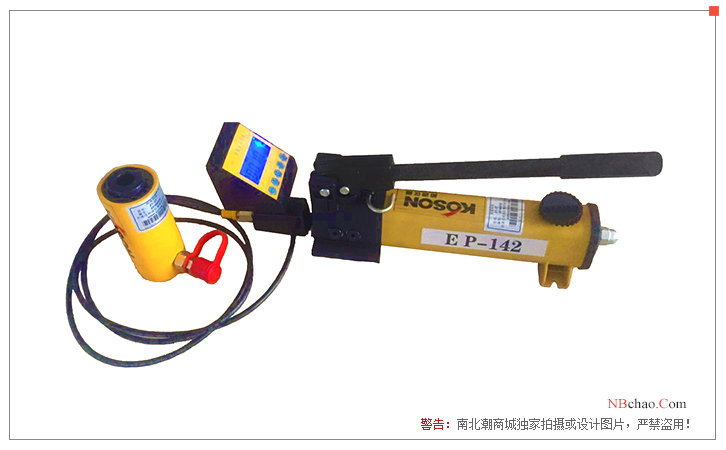

Product display diagram

Packing list：host x1, manual x1, warranty card x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
