KOSON KS-30T Bolt puller Specifications

Search

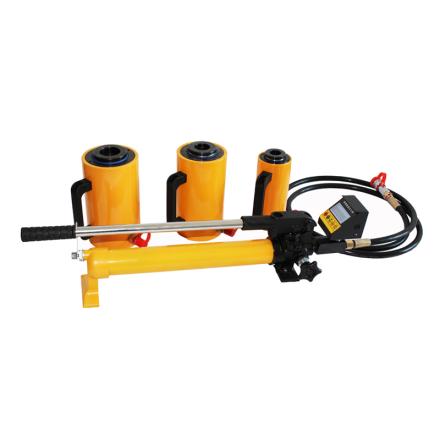

KOSON KS-30T bolt drawing instrument, pulling force range 0~300KN import pump

Brand:KOSON

Model:KS-30T

Name:Bolt puller

DetailsContact
Specifications
Measurement range 0~300KN
Cylinder center hole 45mm
Cylinder stroke 80mm
Cylinder Weight 15kg
Cylinder reset Automatic reset
Manual pump oil storage 0.7L
Working pressure of hand pump 63Mpa
Instrument resolution 0.01KN
Test Accuracy 1%F.S
Power Supply 2000mAh high Capacity rechargeable battery
Screen size 55*21mm
Data storage 500 articles
meet the standard GB50367-2006、GB50330-201、JGJ120-2012、CECS22:2005、GB50007-2011、CECS22:99JGJ145-2013
Packing list
host x1, manual x1, warranty card x1, certificate x1
After-sales instructions

Warranty days: 1095 days

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/8493/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
