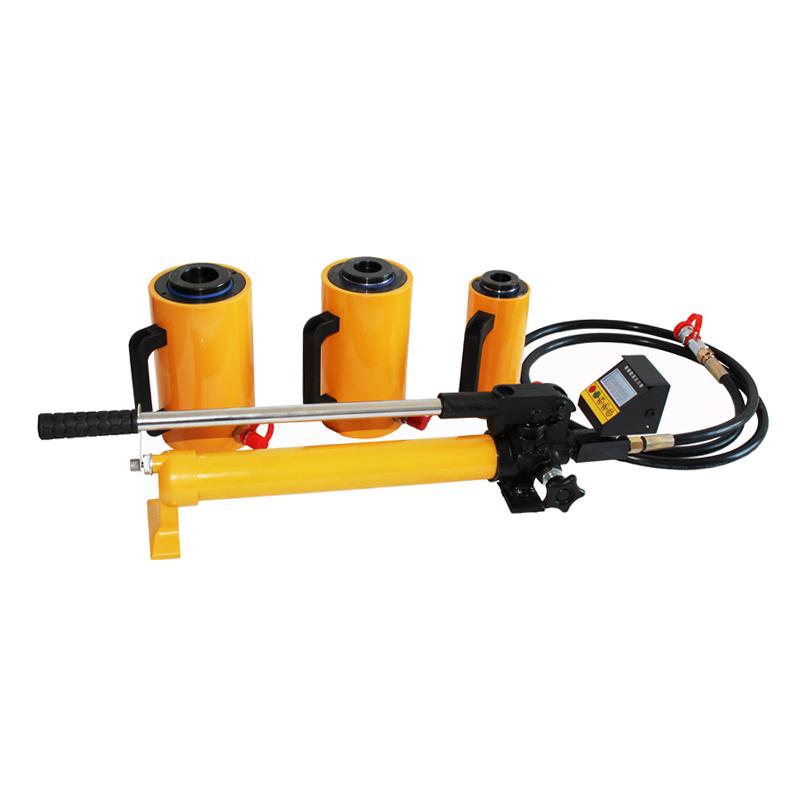

KOSON KS-60T bolt drawing instrument, pulling force range 0~600KN

KS-60T

Bolt puller

　　Model: KS-50T/KS-60T/KS-100T

Application

KS-50-60-100T series bolt puller, also known as (Bolt TensIon Meter), is a product independently developed by Shijiazhuang KOSON Instrument Technology Co., Ltd., suitable for testing all kinds of anchors, anchor cables, steel bars, planting bars, expansion bolts, chemical anchors, railway studs, and various anchor pull-out force instruments and equipment, can also be used for on-site pull-out force testing (test) of glass curtain wall, is the testing instrument required by each (quality inspection unit, reinforcement unit, supervision unit, university, coal mine, etc.......

　　Meets standards

　　1. The digital display table adopts a sensor imported from Switzerland, and the measurement accuracy is 1% F.S

　　2. 500 pieces of data recording, query, LCD lighting function;

　　3. Peak value holding, automatic shutdown without operation;

　　4. The numerical 10-segment polyline is corrected to improve the accuracy of the instrument;

　　5. Power supply mode: 3 No. 5 batteries, ultra-low power consumption design, continuous working time can exceed 200 hours

　　6. Imported sealing ring, durable, automatic spring return, simple structure

　　7. The surface of the hydraulic cylinder is corrosion-resistant electrostatic spraying, nickel-plated piston and sliding sleeve

　　8. The hollow part is equipped with a dust jacket, overload protection, and a quick anti-leakage joint

　　Instrument Introduction

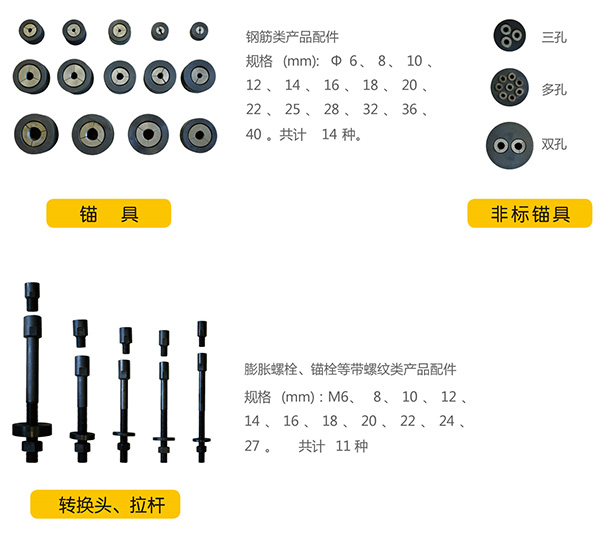

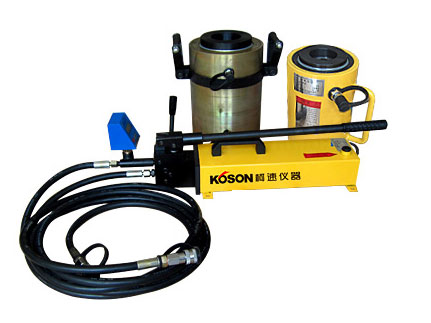

　　KS-10T/20T/30T/50T/60T/100T bolt puller is composed of hand pump, hollow hydraulic cylinder, digital pressure gauge, high-pressure tubing with quick coupling (3 meters), matching options (anchor, adapter, Tie rod) and portable carrying case, 10T~30T ton hydraulic cylinder is hollow self-centering, 50T~100T ton hydraulic cylinder is manual reset type (can be equipped with electric pump), the numerical display part of this instrument is an integrated multi-function display instrument, using Swiss imported sensor with high sensitivity, accurate value can directly read the tensile value (kN) and automatic calculation, peak hold, storage and query functions, with backlight display, The hollow hydraulic cylinder is equipped with a dust-proof system and an imported sealing ring, which has a long service life, especially suitable for laboratory and field use, simple operation, easy to learn and use.

　　Features

　　1. The digital display table adopts a sensor imported from Switzerland, and the measurement accuracy is 1% F.S

　　2. 500 pieces of data recording, query, LCD lighting function;

　　3. Peak value holding, automatic shutdown without operation;

　　4. The numerical 10-segment polyline is corrected to improve the accuracy of the instrument;

　　5. Power supply mode: 3 No. 5 batteries, ultra-low power consumption design, continuous working time can exceed 200 hours

　　6. Imported sealing ring, durable, automatic spring return, simple structure

　　7. The surface of the hydraulic cylinder is corrosion-resistant electrostatic spraying, nickel-plated piston and sliding sleeve

　　8. The hollow part is equipped with a dust jacket, overload protection, and a quick anti-leakage joint

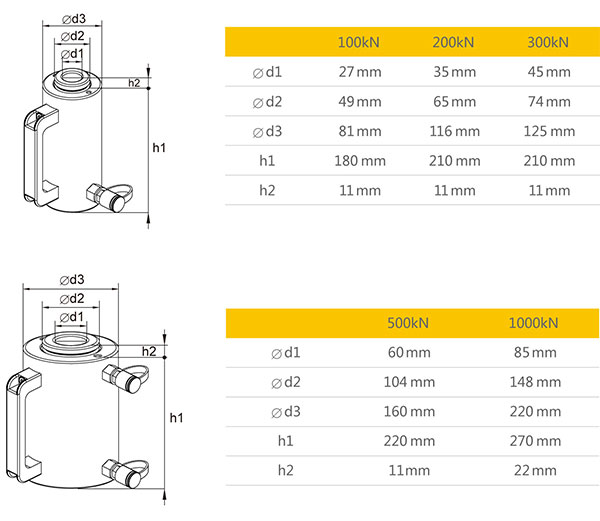

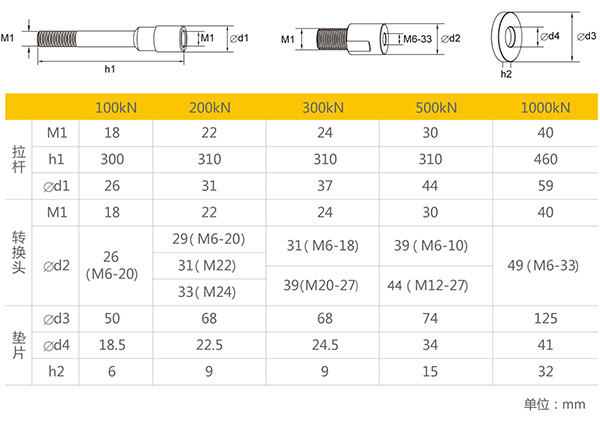

　　Parameters

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
