KOSON KS-60 Anchor Comprehensive Parameter Tester

KOSON KS-60 bolt comprehensive parameter Tester is based on the original bolt puller force measurement, adding displacement parameters and Environmental temperature measurement, according to the gradual change of force value and displacement to draw the measurement Linear dispersion. KS-60 has a powerful Data storage function.

Model：

KS-60

Certificate

KOSON

Manufacturer authorization

Contact

Details SPEC

KOSON KS-60 Anchor comprehensive parameter TesterSPEC

KOSON KS-60 Anchor comprehensive parameter TesterDetails

KOSON KS-60 Anchor comprehensive parameter TesterPacking list

SKU: NB008498

Measurement range: 100KN、200KN、300KN、500KN、600KN、800KN、1000KN

Measurement range: 0-50mm、0-75mm、0-100mm、0-125mm

Measurement Accuracy: 1%

displacement: 0.5%

Resolution: 0.01KN

Displacement resolution: 0.01mm

Data storage: 10000

Interface: USB

Operating language: Chinese

KS-60

Anchor comprehensive parameter Tester

Instrument Introduction

KS-60 bolt comprehensive parameter Tester is based on the force measurement of the original bolt puller, add the measurement of displacement parameters and ambient temperature, and draw the measurement curve according to the gradual change of force value and displacement. The KS-60 has powerful data storage capabilities. In the whole process of the experiment, the displacement, force value and change curve are automatically stored and recorded in the instrument at regular intervals. The instrument can store 30,000 data measurements.

After the experiment, the stored data can be imported into the computer through the USB interface of the instrument. Using the host computer processing software specially developed by our company for this type of pull-out test, the data is edited and processed and automatically generated and printed.

Scope of application

KS-60 bolt comprehensive parameter Tester is an independent product of Shijiazhuang KOSON Instrument Technology Co., Ltd. It is suitable for testing the pull-out resistance, displacement and ambient temperature of various anchors such as anchors, anchor cables, steel bars, expansion bolts, chemical anchors, etc., and can also be used for the detection (test) of on-site pull-out force and displacement of glass curtain walls. This product can be verified or calibrated by trusted testing institutions across the country.

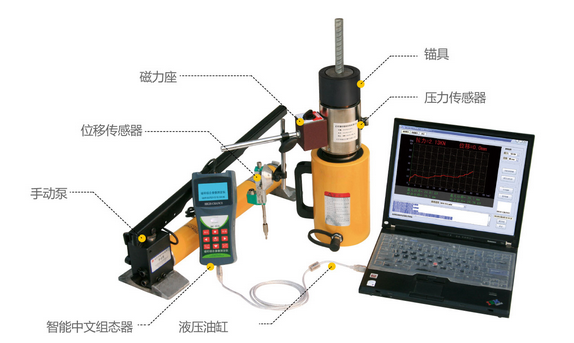

KOSON KS-60 bolt comprehensive parameter Tester structure diagram

KOSON KS-60 bolt comprehensive parameter Tester is a full Chinese operating system, with professional host computer software, automatically generate pressure and displacement test curves and print test reports. It has functions such as peak hold, auto shutdown, backlight, temperature display, date time display, auto storage, etc.

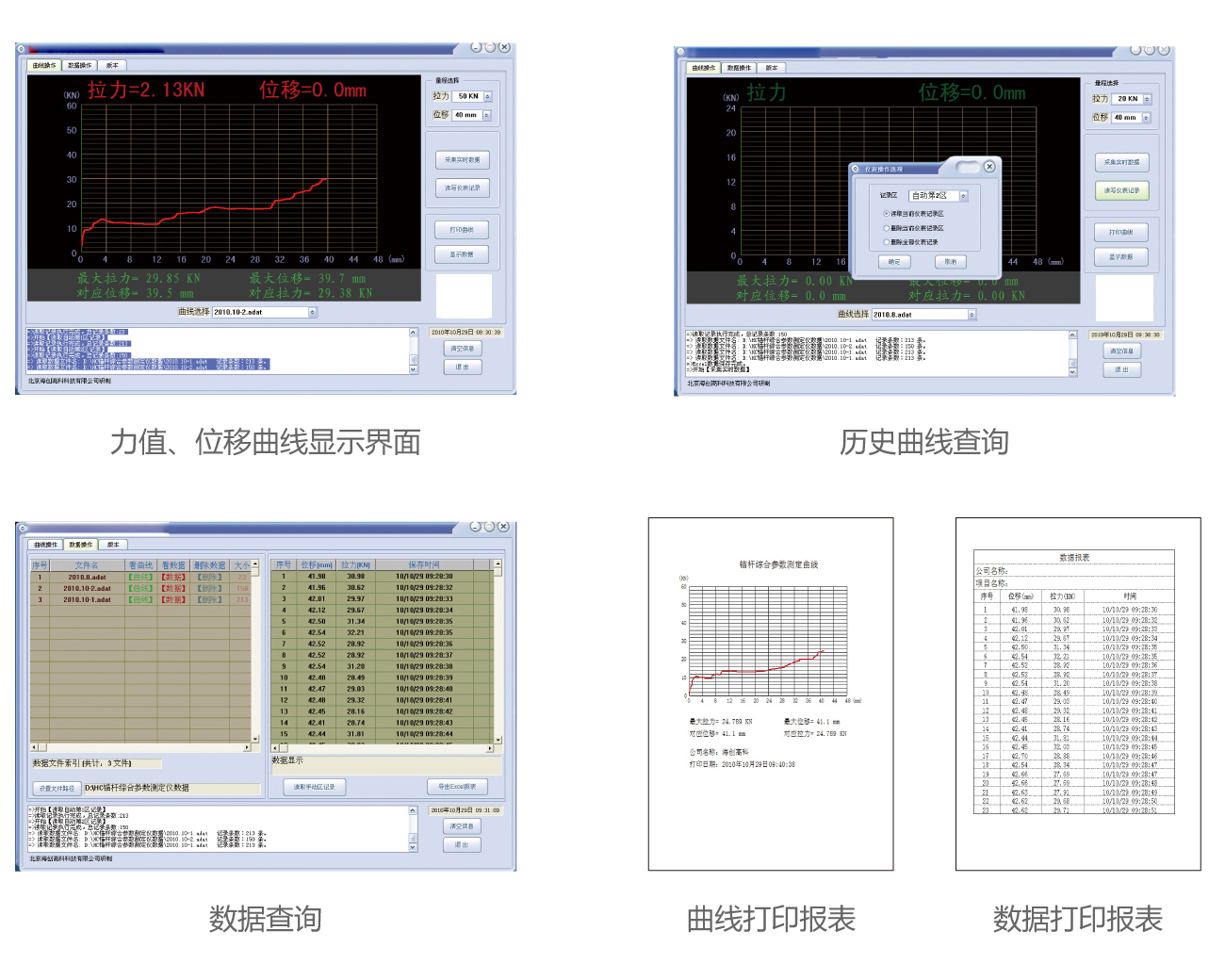

Software interface

KOSON KS-60 bolt comprehensive parameter Tester software interface
