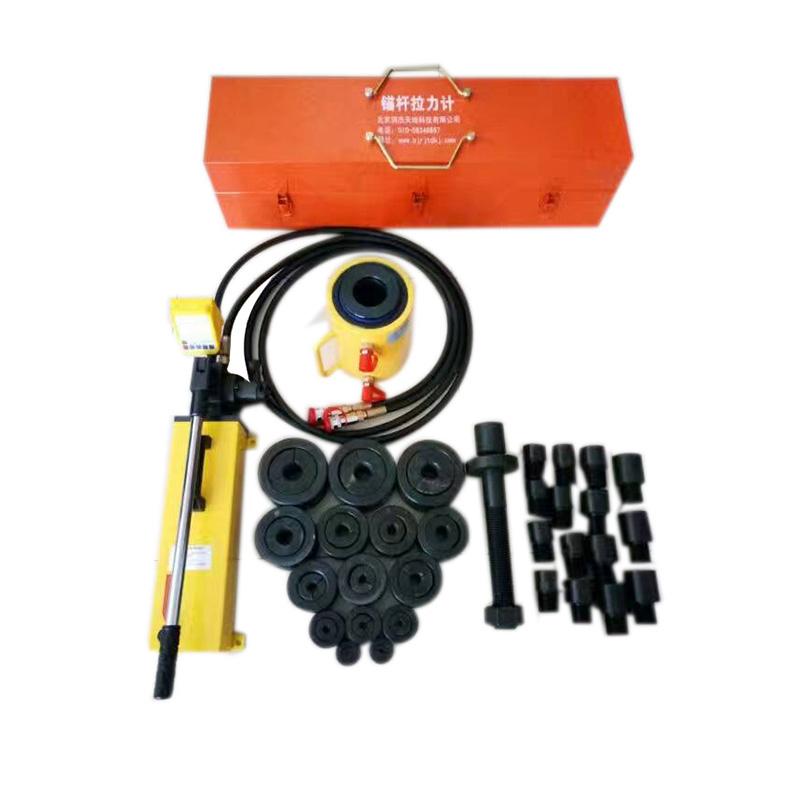

Runjie RJ-50 Anchor TensIon Meter, pulling force range 0~500kN

The cylinder center hole of Runjie RJ-50 Bolt Tension Gauge is 60mm, and the cylinder stroke is 120mm. The RJ-50 bolt tension is used to detect various anchors, anchor cables, anchors, expansion anchors and other anchors. pull out force.

$909.00/set

PromotionLoading...

Coupon

Model：

RJ-50

Certificate

RunJie

Manufacturer authorization

Contact

Details SPEC Con CAT

RunJie RJ-50 Bolt Tension GaugeSPEC

RunJie RJ-50 Bolt Tension GaugeDetails

RunJie RJ-50 Bolt Tension GaugePacking list

SKU: NB008590

error: Less than 1%

resolution: 0.01 kN

Measuring range: 0~500kN

Cylinder center hole: 60mm

Cylinder stroke: 120mm

Weight: 29kg

data storage: 100 pieces of data storage

Power: 9V battery

Standards: GB 50367-2006、GB 50310-2002、GB 50086-2011、GB 50007-2011、CECS 22：2005、CECS 22:99、JGJ 120-2012、JGJ 145-2013

RJ-50

Bolt Tension Gauge

Instrument Introduction

Runjietiandi RJ-50 Bolt Tension Gauge is composed of manual pump or electric pump, hollow hydraulic cylinder, digital display pressure gauge, high-pressure oil pipe with quick connector, anchorage, pull rod, conversion joint and portable case. The hydraulic cylinder is a hollow manual or electric reset type, which can be added with a graded unloading function. The numerical display part of the RJ-50 Anchor TensIon Meter is an integrated multi-function display instrument, which can directly read the anchor tension value (KN), and has automatic calculation, peak value hold, storage and query functions, especially suitable for laboratories and On-site use, simple operation, easy to learn and use.

Note: RJ-50 Bolt TensIon Meter is a single host, and anchors, tie rods and conversion joints need to be purchased separately.

Application

Runjietiandi RJ-50 Bolt TensIon Meter is an instrument and equipment used to detect the pull-out force of anchors such as anchor rods, anchor cables, steel bars, expansion bolts, etc., and can also be used for on-site pull-out force detection (test) of glass curtain walls , is the testing instrument required by each quality inspection unit.

Features

Nickel-plated piston and sleeve	●	Meter data storage function	●
Surface anti-corrosion electrostatic spraying	●	100 pieces of data storage capacity	●
New sealing ring, reliable operation	●	Meter data query and deletion	●
Automatic spring return, simple structure	●	Sensors imported from Switzerland	●
Auto power off function	●	9V battery (easy to buy)	●
peak hold	●	Measuring range	0～500kN
error	less than 1%	Display resolution	0.01 kN

Standards

GB 50367-2006 "Code for Design of Reinforcement of Concrete Structures"

GB 50310-2002 "Technical Code for Building Slope Engineering"

GB 50086-2011 "Technical Specifications for Geotechnical Anchorage and Shotcrete Support Engineering"

GB 50007-2011 "Code for Design of Building Foundations"

CECS 22:2005 "Technical Regulations for Rock and Soil Anchor (Cable)"

CECS 22:99 "Code for Design and Construction of Soil Anchor Bolts"

JGJ 120-2012 "Technical Regulations for Building Foundation Pit Support"

JGJ 145-2013 "Technical Regulations for Post Anchorage of Concrete Structures"

Pictures

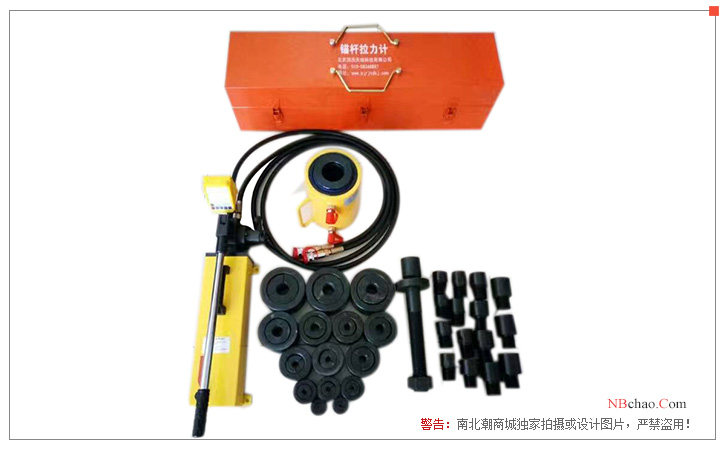

Runjietiandi RJ-50 Bolt Tension Gauge display
