Runjie RJ-100 Bolt TensIon Meter, catenary embedded rod drawing Tester, pulling force 1000kN
SE
RJ-100
RunJie RJ-100 Bolt Tension GaugeSPEC
RunJie RJ-100 Bolt Tension GaugeDetails
RunJie RJ-100 Bolt Tension GaugePacking list
- SKU
- NB008591
- Measuring range
- 0~1000kN
- error
- Less than 1%
- resolution
- 0.01kN
- data storage
- 100 articles
- Power
- 9V battery
- Cylinder center hole
- 90mm
- Cylinder stroke
- 150mm
- Weight
- 65kg
- Standards
- GB 50367-2006、GB 50310-2002、GB 50086-2011、GB 50007-2011、CECS 22：2005、CECS 22:99、JGJ 120-2012、JGJ 145-2013
Instrument Introduction

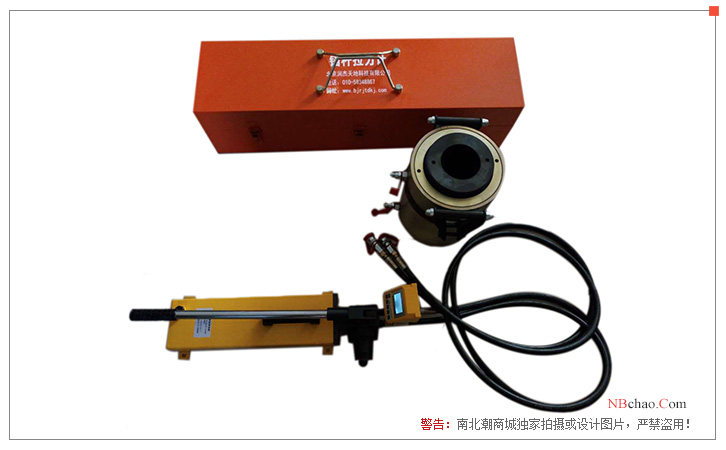

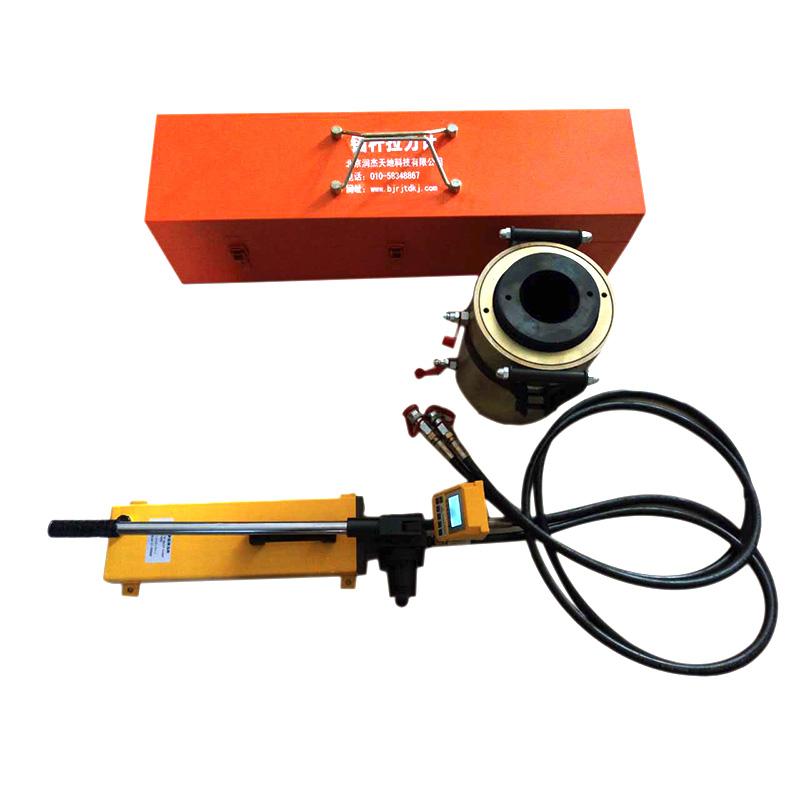

Runjietiandi RJ-100 Bolt Tension Gauge is composed of manual pump or electric pump, hollow hydraulic cylinder, digital display pressure gauge, high-pressure oil pipe with quick connector, anchorage, tie rod, conversion joint and portable case. The hydraulic cylinder is a hollow manual or electric reset type, which can be added with a graded unloading function. The numerical display part of the RJ-100 Anchor TensIon Meter is an integrated multi-function display instrument, which can directly read the anchor tension value (KN), and has automatic calculation, peak value hold, storage and query functions, especially suitable for laboratories and On-site use, simple operation, easy to learn and use.
Note: RJ-100 Bolt TensIon Meter is a single host, and anchors, tie rods and conversion joints need to be purchased separately.
Application
Runjietiandi RJ-100 Anchor TensIon Meter is an instrument and equipment used to detect the pull-out force of anchors such as various anchor rods, anchor cables, steel bars, expansion bolts, etc. It can also be used for on-site pull-out force detection (test) of glass curtain walls , is the testing instrument required by each quality inspection unit.
Features
Nickel-plated piston and sleeve | ● | Meter data storage function | ● |
Surface anti-corrosion electrostatic spraying | ● | 100 pieces of data storage capacity | ● |
New sealing ring, reliable operation | ● | Meter data query and deletion | ● |
Automatic spring return, simple structure | ● | Sensors imported from Switzerland | ● |
Auto power off function | ● | 9V battery (easy to buy) | ● |
peak hold | ● | Measuring range | 0～1000kN |
error | less than 1% | Display resolution | 0.01 kN |
Standards
GB 50367-2006 "Code for Design of Reinforcement of Concrete Structures"
GB 50310-2002 "Technical Code for Building Slope Engineering"
GB 50086-2011 "Technical Specifications for Geotechnical Anchorage and Shotcrete Support Engineering"
GB 50007-2011 "Code for Design of Building Foundations"
CECS 22:2005 "Technical Regulations for Rock and Soil Anchor (Cable)"
CECS 22:99 "Code for Design and Construction of Soil Anchor Bolts"
JGJ 120-2012 "Technical Regulations for Building Foundation Pit Support"
JGJ 145-2013 "Technical Regulations for Post Anchorage of Concrete Structures"
