Runjie RJYL-60 bolt comprehensive parameter Tester, used with Bolt TensIon Meter

RJYL-60

Anchor comprehensive parameter Tester

Introduction

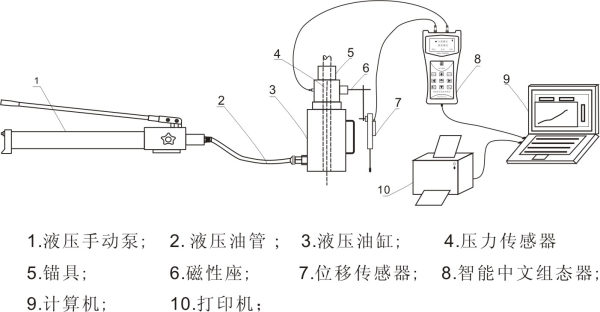

Runjietiandi RJYL-60 bolt comprehensive parameter Tester is mainly composed of manual pump, hydraulic cylinder, ring pressure sensor, displacement sensor, intelligent Chinese configurator and high-pressure oil pipe with quick connector. When in use, first connect the manual pump to the hydraulic cylinder with a quick connector, place the ring pressure sensor on the upper part of the piston of the hydraulic cylinder, the displacement sensor is adsorbed on the outer cylindrical surface of the ring pressure sensor through a magnetic seat, and then connect the The intelligent Chinese configurator can be connected with the ring pressure sensor and the displacement sensor.

RJYL-60 Bolt Comprehensive Parameter Tester is used in conjunction with the Bolt Tension Meter.

Features

● 4 lines full Chinese display

● Peak hold function

● Can manually store 1000 pieces of data, including displacement value, tension value and test time , 5 sets of test process data

● Time and date display

● High-speed USB communication interface, which can be connected to a computer for drawing, printing, exporting EXCEL reports, etc.

● Dedicated upper computer software

● It can simultaneously detect the tensile force, displacement and ambient temperature value of the steel bar under tension

● With overload protection structure, the oil cylinder will not be damaged when the no-load exceeds the range, so you can use it with confidence

Product Structure

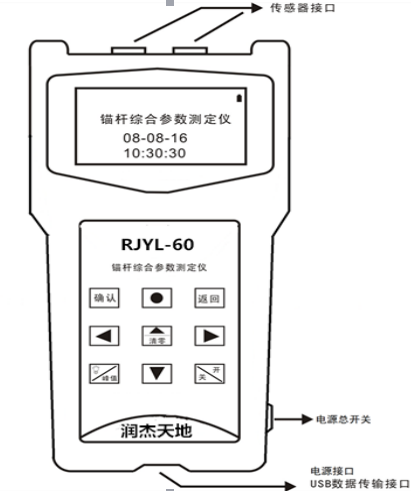

Key panel details

Confirm button : confirm the current operation, which is equivalent to the Enter key.

Solid circle button: Press this button in the main interface to enter the meter setting state.

Return button: Cancel the current option function and return to the previous menu.

Left key: the number moves to the left.

Up/Reset button: Value increase function. In the measurement state, it has the function of clearing the displayed value.

Right key: the number moves to the right.

Bulb/Peak button: Press and hold this button for 3 seconds to turn on/off the backlight display of the meter. There is a peak hold function in the measurement state.

Down button: the function of reducing the value, press and hold this button for about 2 seconds to turn on the automatic recording function.

On/Off: Press and hold this key for about 2 seconds to turn on/off the instrument power.

Standards

National Standard of the People's Republic of CHINA "Code for Design of Strengthening Concrete Structures" GB50367-2006.

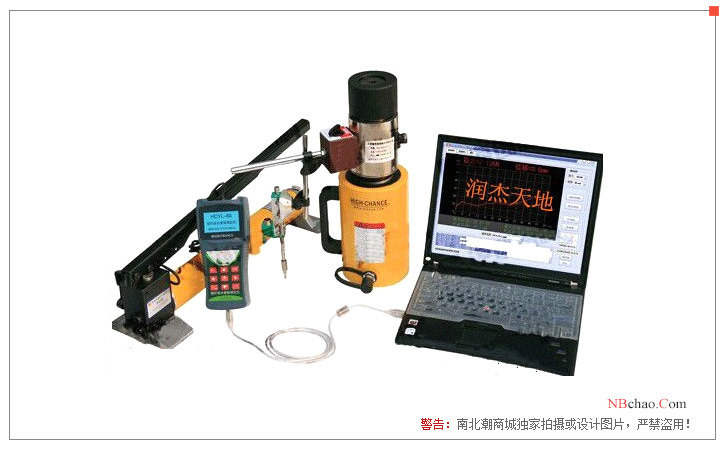

Pictures

Packing list：Host x1, manual x1, warranty card x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
