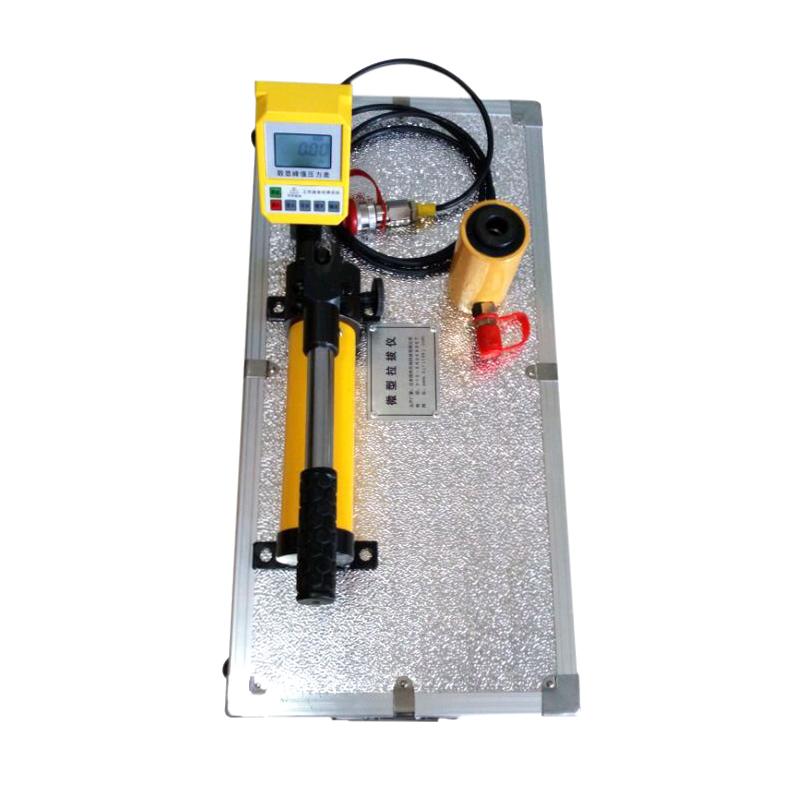

Runjie RJ-5 miniature drawing instrument, pressure measuring range 0~50kN

RJ-5

Miniature puller

Introduction

Runjietiandi RJ-5 Anchor TensIon Meter is suitable for the anchorage force detection of anchors such as anchors, anchor cables, steel bars, and anchor bolts. It is one of the instruments required for the quality inspection of anchor construction and support projects.

RJ-5 Bolt Tension Gauge is composed of manual pump, hydraulic cylinder, digital pressure gauge, high-pressure rubber hose, anchorage, tie rod, conversion joint, portable carrying case and other parts. The pump body is made of precision cast steel with long service life. The hydraulic cylinder is a hollow self-resetting type. The reading of the digital pressure gauge is intuitive, and it can directly read the bolt tension (kn) value, and has automatic calculation, backlight, peak hold, storage and query functions. RJ-5 Bolt Tension Gauge is compact in structure, easy to carry, small in size and light in weight.

Rally gauge manual pump can also be used as a power source for general small flow high pressure oil.

Features

1. Nickel-plated piston and sliding sleeve

2. With data storage function, 100 data storage capacity

3. Surface corrosion-resistant electrostatic spraying

4. New sealing ring, reliable operation

5. Meter data query and deletion

6. Automatic spring return, simple structure

7. Automatic shutdown function

8. Peak hold function

Standards

GB 50367-2006 "Code for Design of Reinforcement of Concrete Structures"

GB 50330-2002 "Technical Code for Building Slope Engineering"

GB 50086-2011 "Technical Specifications for Geotechnical Anchorage and Shotcrete Support Engineering"

GB 50007-2011 "Code for Design of Building Foundations"

CECS 22:2005 "Technical Regulations for Rock and Soil Anchor (Cable)"

CECS 22:99 "Code for Design and Construction of Soil Anchor Bolts"

JGJ 120-2012 "Technical Regulations for Building Foundation Pit Support"

JGJ 145-2013 "Technical Regulations for Post Anchorage of Concrete Structures"

Product Structure

1 oil storage tank; 2 oil filling port; 3 pressure handle; 4 unloading valve; 5 digital display pressure gauge; 6 high pressure oil pipe; 7 quick connector; 8 hydraulic cylinder

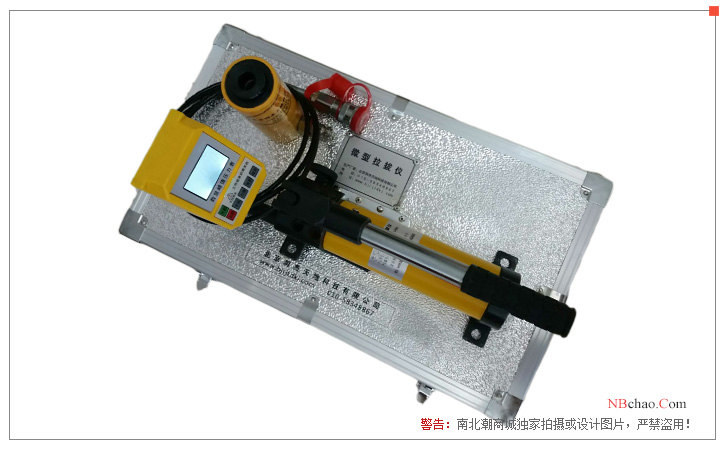

Pictures

Packing list：Host x1, manual x1, warranty card x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
