MODERNER Combo - 30/60/90/120 Quadrilateral Preparation 78x100

Combined - 30/60/90/120

Quadrilateral Preparer 78x100

Spreader width 78mm, material stainless steel, size 78 * 100mm, type 4-sided wet film thickness 30μm, 60μm, 90μm, 120μm

Introduction

MODERNER Combo - 30/60/90/120 Quad Preparator 78x100 wet film thickness 30/60/90/120μm in 78x100mm format. The quadrilateral preparer is a Wet Film Applicator made of stainless steel, which is used to prepare samples, test color and hiding power and other properties, and is suitable for coatings, inks, paints and other industries.

Specifications

operation method

1. Put the model on the platform and fix it well to ensure that the combination-30/60/90/120 quadrilateral preparer 78x100 cannot move when it slides over.

2. Place the quadrilateral preparer 78x100 on the short side of the template, close to parallel or at a specified position.

3. Pour about 5 ml of the sample on the front of the Applicator, press both ends of it with your fingers, and slide at a constant speed of 150 mm/s to obtain a wet film with the required wet film thickness.

4. After using the Wet Film Applicator, it should be cleaned and dried with a suitable solvent immediately, and the surface should be coated with oil or vaseline.

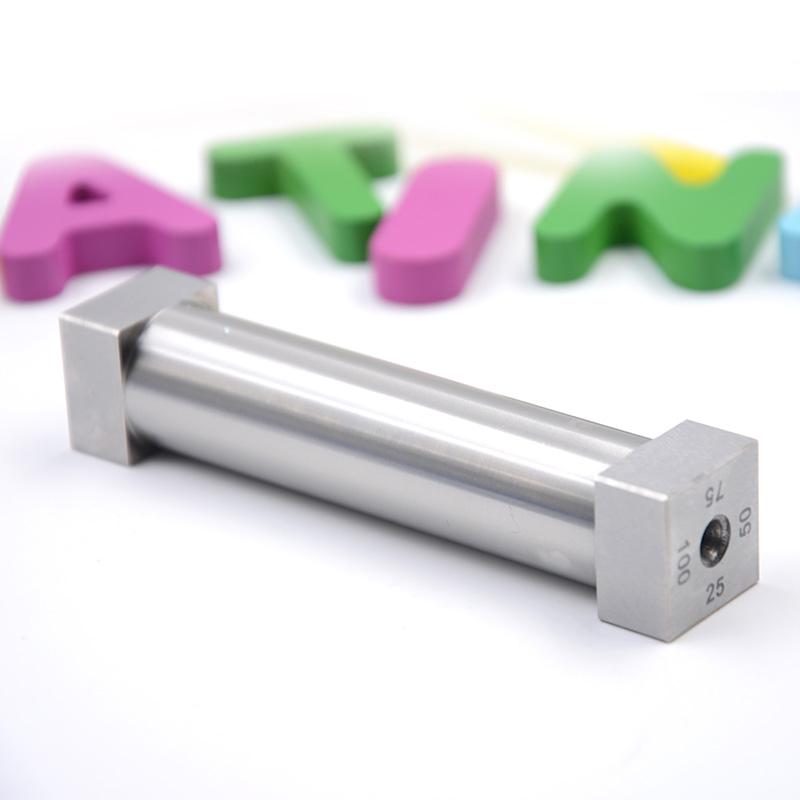

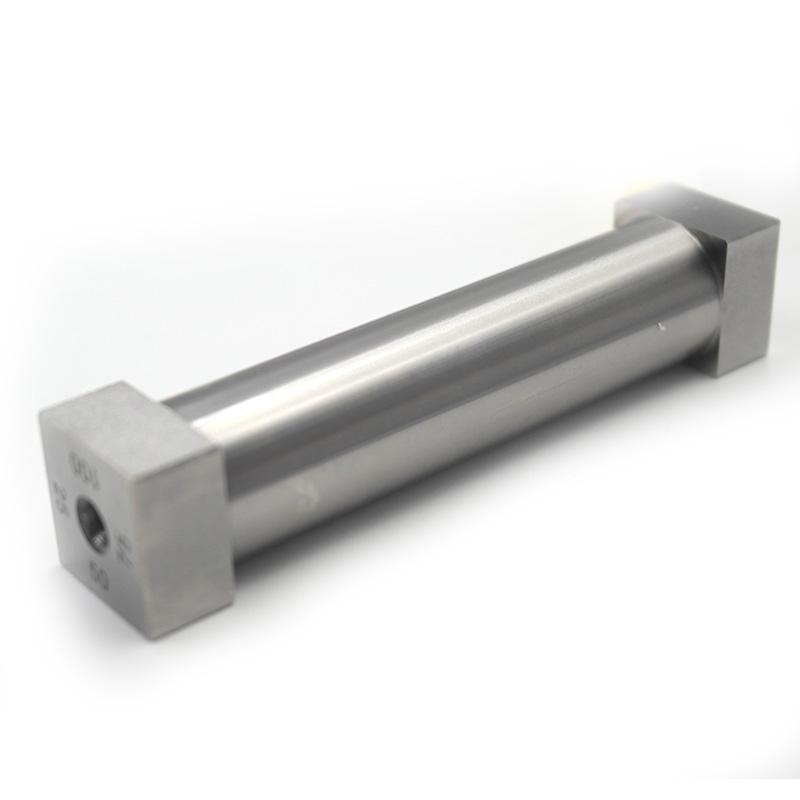

Pictures

Packing list：Applicator x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
