NIRUN NDJ-8S Digital Viscometer 10~2 million mPa • s Viscosity Range

NIRUN NDJ-8S digital Viscometer is an upgraded replacement of the original mechanical NDJ-4 Viscometer. The NDJ-8S Viscosity Detector has a measurement Viscosity range of 10~2 million mPa • s, and the digital viscosity meter is equipped with a variety of rotors.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

NiRun NDJ-8S Digital ViscometerSPEC

NiRun NDJ-8S Digital ViscometerDetails

NiRun NDJ-8S Digital ViscometerPacking list

SKU
NB008739
Display
digital display
Measuring range
10~2000000mPa·s
Rotor Specifications
1#、2#、3#、4#
Rotor speed
0.3/0.6/1.5/3/6/12/30/60rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
AC100-240V，50Hz/60Hz，DC17V1.2A
Data Interface
RS232
Display
Digital LCD liquid crystal with blue backlight
Weight
7kg
Encasement material
Five-layer cardboard
Collection method
continuous acquisition
Capacity
300~400ml
Capacity
400Ml (self-prepared)
Lifting system
PE lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
microcomputer
Encasement
aluminum alloy
NDJ-8S
Digital Viscometer
NIRUN NDJ-8S Digital Viscometer 10~2 million mPa • s Viscosity Range Picture

Technical advantages

  1. Applying NIRUN 's patent, it overcomes the disadvantage of domestic (CN) instruments that can only sample once in one revolution, and realizes the technology of multiple sampling in one revolution.

  2. High subdivision drives the stepper motor to rotate, the speed is accurate and stable, and the frequency change of AC Voltage does not affect the accuracy of viscosity measurement.

  3. For thixotropic non-Newtonian liquids, the timing function of the instrument can ensure good consistency data.

  4. Direct drive by stepping motor, no noise, convenient speed change, clear speed display, good reliability, no jitter phenomenon.

  5. LCD liquid crystal with blue backlight function, directly displays the viscosity, speed, percent torque, and the maximum viscosity value of the rotor that can be measured at the current speed. Viscosity values show a continuous change. There is an alarm sound prompt when the measurement range is exceeded.

  6. Computer full scale linear calibration, measurement accuracy is ±1.0% of full scale.

  7. Switching power adapter, wide power input, good anti-interference.

  8. Optional RTD temperature probe, real-time monitoring of sample temperature.

  9. Optional RS232 interface, real-time printing of sample measurement data through a micro-printer, saving labor.

Application

NDJ-8S digital viscometer is suitable for ink, glue, latex , solvent - based adhesive , polymer solution , petroleum , paint , solvent , cosmetic , milk product , medicine , fruit juice and so on.

Pictures

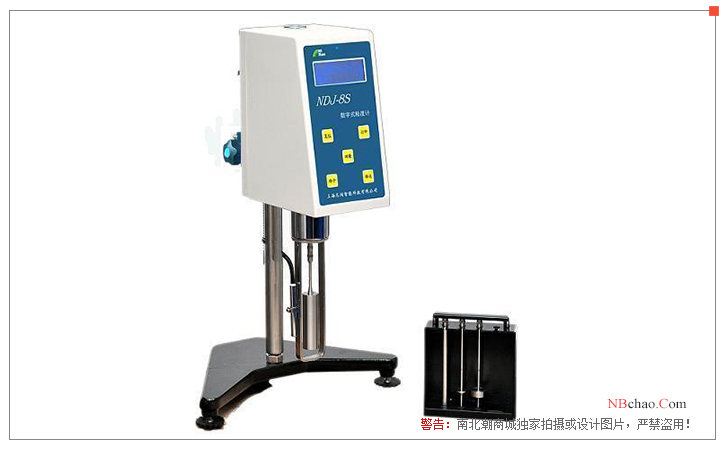

NIRUN NDJ-8S digital viscometer display

Optional

Ultra Low Viscosity Adapter (Spindle 0)

micro printer

Special viscosity constant temperature Water Tank

RTD temperature probe

standard oil

remote control

FAQ
QHow much is the sample volume of this equipment?
A 300-400Ml
QIs this NIRUN NDJ-8S different from the one we bought before?
A Now this Viscometer has been updated, and the old one has been discontinued. At present, the accuracy and Repeatability of this one have been improved.
QCan NIRUN's NDJ-8s series be paired with a small number of sample adapters?
A This one cannot be matched with a small amount of sample adapters, only the SNB series can be used.
QDoes the Digital Viscometer come with a printer?
A Hello, you can connect the printer, but you need to book an additional RS232C interface.
QNDJ-8s Viscometer, can real stone paint work?
A The viscosity of real stone paint is generally around 10w, which is basically OK.
QWhat is the difference between this and snb?
A snb is stepless speed regulation and has software function.
QHow much sample viscosity can the 8s rotational viscometer measure at one time?
A Hello, the sample volume tested is 300~ 400ml.
QIs it feasible to measure the viscosity of wine by Viscometer?
A Hello, it's OK.
QDoes the Digital Viscometer meet the JJG1002 specification?
A Model NDJ-8S Digital Viscometer Compliant
QCan this NDJ-8S Viscometer calculate the shear rate?
A No way.
