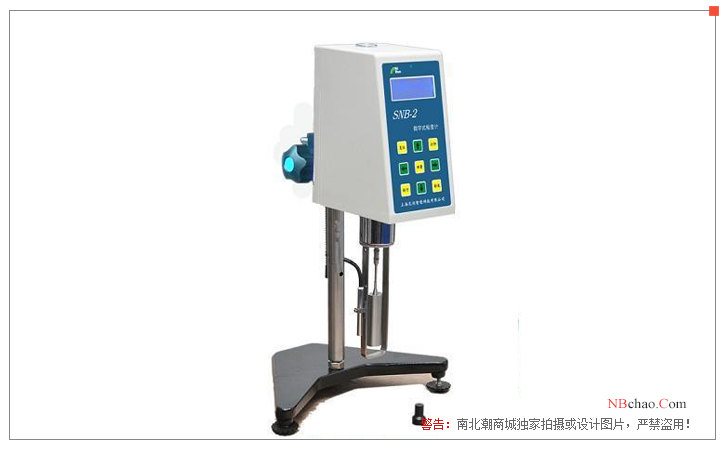

NIRUN SNB-2 Digital Rotational Viscometer Measurement range 10~6 million mPa · s

SNB-2

Digital Viscometer

Digital display, Measurement range 10~6000000mPa · s, Rotor specifications 1 #, 2 #, 3 #, 4 #, Rotor speed 0.1~ 100rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S.

technical features

1. It can be used as a stand-alone machine, or it can be connected to a micro-printer and a computer to realize data collection.

2. High subdivision drives the stepper motor to rotate, the speed is accurate and stable, and the frequency change of AC Voltage does not affect the accuracy of viscosity measurement.

3. For thixotropic non-Newtonian liquids, the timing function of the viscometer can ensure good consistent data.

4.  LCD liquid crystal with blue backlight function, directly display viscosity, speed, percent torque, maximum viscosity value and temperature value of the rotor at the current speed. Viscosity values show a continuous change. There is an alarm sound prompt when the measurement range is exceeded.

5. SNB data collection and drawing software can be purchased to realize data collection and data analysis, and a miniature monochrome printer can also be purchased to realize regular printing of measurement results.

6. The full scale and linearity of each grade of the rotary viscometer are all measured and corrected through the computer interface, and its measurement performance and functions have reached the professional level of the same type abroad.

7. The standard RTD temperature probe monitors the sample temperature in real time with an accuracy of 0.1°C and a temperature range of 0-100°C.

8. Using 16-bit microcomputer processor as the core, high subdivision drive stepper motor, digital LCD with blue backlight function.

9. Different standard rotors can be selected as required.

10. According to the need, you can choose the standard material of the Metrology Bureau to calibrate the viscometer, so that the inspection level can be in line with the international standard.

11. Optional SNB data acquisition and drawing software

Applications

SNB-2 digital viscometer is widely used in ink, glue, latex, solvent-based adhesive, polymer solution, petroleum, paint, solvent, cosmetics, milk products, medicine, fruit juice and so on.

Pictures

Optional

Ultra Low Viscosity Adapter (Spindle 0)

micro printer

Special viscosity constant temperature Water Tank

SNB Data Acquisition and Graphing Software

Small sample adapter (with 21#, 27#, 28#, 29# rotors)

standard oil

remote control

Comparison of SNB parameters

Packing list：host x1, one rotor each for 1 #, 2 #, 3 #, and 4 #, manual x1, warranty card x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
