NIRUN HBDV-3 + Pro Digital Viscometer 160~32 million cP measuring range

SE
NIRUN HBDV-3 + Pro digital Viscometer adopts 16-bit microcomputer processor, and the measurement is stable and accurate. HBDV-3 + Pro can set 7,500 kinds of shear rates steplessly.
$4627.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

NiRun HBDV-3+Pro Digital ViscometerSPEC

NiRun HBDV-3+Pro Digital ViscometerDetails

NiRun HBDV-3+Pro Digital ViscometerPacking list

SKU
NB008751
Display
digital display
Measuring range
160~320000000mPa·s
Rotor Specifications
2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional)
Rotor speed
0.1~750rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
110~220V 50Hz/60Hz，DC17V1.2A
Data Interface
RS232
Weight
7kg
Capacity
600Ml beaker or optional small sample adapter
Encasement material
Five-layer cardboard
Collection method
continuous acquisition
Capacity
300~600ml
Capacity
400 or 800ml (self-provided)
Lifting system
Metal lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
microcomputer
software system
Data collection, programming, analysis
temperature probe
PT100 temperature probe
Encasement
aluminum alloy
Speed control method
Continuously variable speed (no gear drive)
HBDV-3+Pro
Digital Viscometer

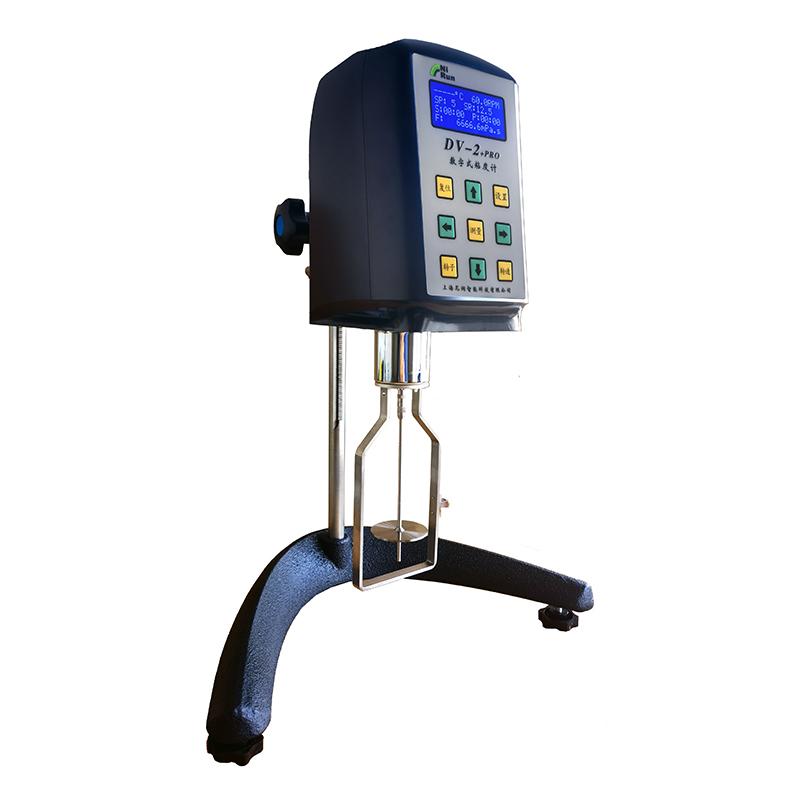

NIRUN HBDV-3 + Pro Digital Viscometer 160~32 million cP measuring range Picture

technical features

  • Optional DV data acquisition and program control software can measure rheological properties

  • Show Shear Rate and Shear Stress

  • Stepper motor direct drive, no gear, accurate speed

  • LCD liquid crystal with blue backlight, displaying a large amount of information

  • It can display the maximum viscosity value that the rotor can measure at the current speed.

  • Viscosity value shows continuous change

  • There is an alarm sound prompt when the measurement range is exceeded

  • Standard RTD temperature probe

  • Standard two-way RS232 or 485 interface

  • Computer full range linear calibration

  • AC power adapter 100V-240V, good anti-interference

Application

Digital viscometers are widely used in inks, glues , latex , solvent-based adhesives , polymer solutions , petroleum , paint coatings , solvents , cosmetics , milk products , medicines , fruit juices, etc.

Pictures

NIRUN HBDV-3+Pro Digital Viscometer Details Figure 1

optional accessories

DV data acquisition and program-controlled analysis software

Special viscosity measurement constant temperature Water Tank

Ultra Low Viscosity Adapter

Small Sample Adapter

standard solution

micro printer

Outer circulation glass beaker

Comparison of DV parameters

modelMeasuring range (mPa.s)Rotor speed
LDVRDVHADVHBDV
DV-1+PRO1-2 million1-13 million2-26 million8-104 million0.3-100
DV-2+PRO1-6 million100-40 million2-80 million800-320 million0.1-200
DV-3+PRO1-6 million20-40 million100-80 million5-320 million0.1-250
DV-E1-2 million1-13 million2-26 million8-104 million0.3-100
Unit: mPa.s, rev/min
Other parameters
Number of rotorsLDV with (1, 2, 3, 4 4 kinds of rotors) (0 rotor is optional)
RDV, HADV, HBDV (6 types of rotors No. 2, 3, 4, 5, 6, 7) (Rotors No. 0 and No. 1 are optional accessories)
measurement accuracy±1.0% (full scale)
repeatability0.50%


FAQ
QDo you have this digital viscosity meter with a temperature probe?
A Hello, this HBDV-3 + Pro digital Viscometer comes standard with a temperature probe with PT100.
QAre all digital Viscometers available for inspection in the GB/T 12009.3 standard?
A Not necessarily, but this HBDV-3 + Pro digital Viscometer can be considered.
QWhat our laboratory wants to test is the high viscosity of the sealing agent. Is this digital Viscometer suitable?
A Hello, HBDV-3 + Pro is an HB series. Most of this series is used in the high viscosity range, but whether it is suitable or not depends on the approximate viscosity range of your sealing agent.
