China

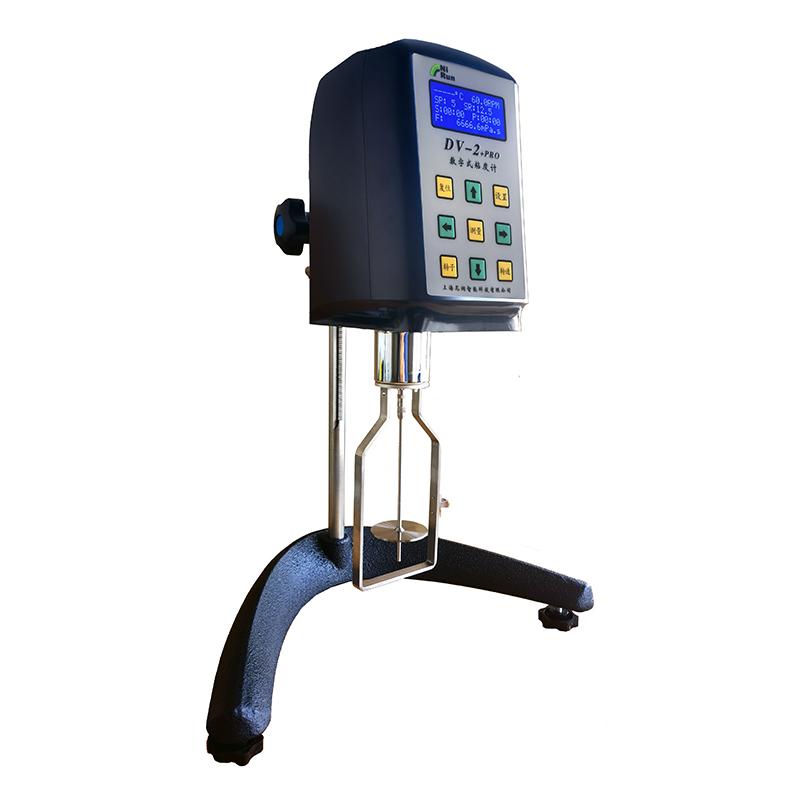

NIRUN RDV-2 + Pro Digital Viscometer Measurement range 20-40 million cP

SE
Digital display, Measurement range 20~40000000mPa · s, Rotor specifications 2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional), Rotor speed 0.1~ 200rpm, reproducibility +/- 0.5% F. S, Measurement accuracy +/- 1% F. S, Power supply Voltage 110~220V 50Hz/60Hz, DC17V1.2A, Interface RS232, weight 7kg.
$3526.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

NiRun RDV-2+Pro Digital ViscometerSPEC

NiRun RDV-2+Pro Digital ViscometerDetails

NiRun RDV-2+Pro Digital ViscometerPacking list

SKU
NB008753
Display
digital display
Measuring range
20~40000000mPa·s
Rotor Specifications
2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional)
Rotor speed
0.1~200rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
110~220V 50Hz/60Hz，DC17V1.2A
Data Interface
RS232
Weight
7kg
Capacity
600Ml beaker or optional small sample adapter
Encasement material
Five-layer cardboard
Collection method
continuous acquisition
Capacity
300~600ml
Capacity
400 or 800ml (self-provided)
Lifting system
Metal lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
microcomputer
software system
Data collection, programming, analysis
temperature probe
PT100 temperature probe
Encasement
aluminum alloy
Speed control method
Continuously variable speed (no gear drive)
RDV-2+Pro
Digital Viscometer
Digital display, Measurement range 20~40000000mPa · s, Rotor specifications 2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional), Rotor speed 0.1~ 200rpm, reproducibility +/- 0.5% F. S, Measurement accuracy +/- 1% F. S, Power supply Voltage 110~220V 50Hz/60Hz, DC17V1.2A, Interface RS232, weight 7kg.

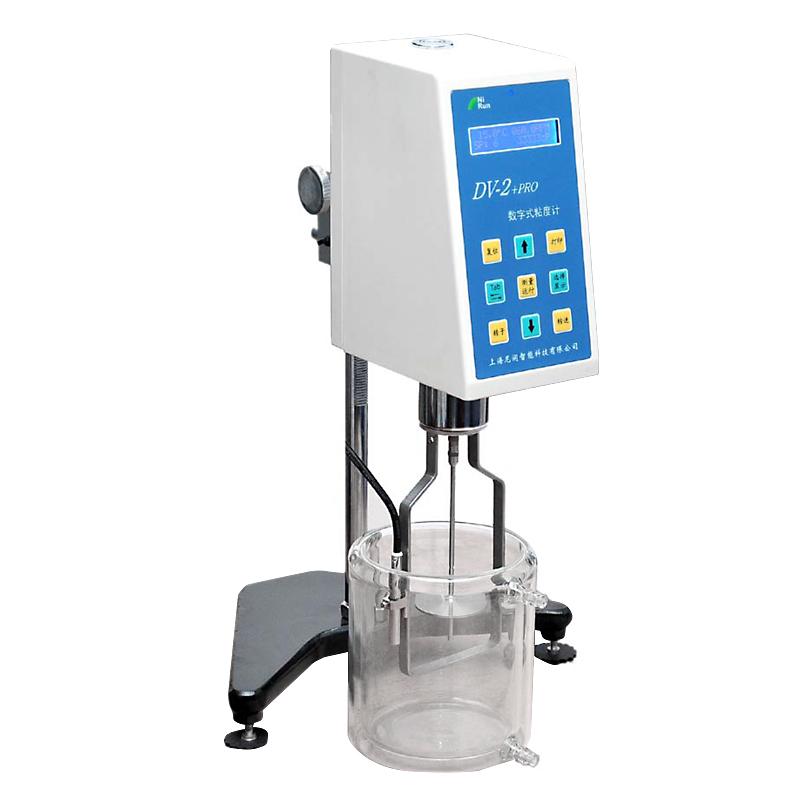

NIRUN RDV-2 + Pro Digital Viscometer Measurement range 20-40 million cP Picture

technical features

  • Optional DV data acquisition and program control software can measure rheological properties

  • Show Shear Rate and Shear Stress

  • Stepper motor direct drive, no gear, accurate speed

  • LCD liquid crystal with blue backlight, displaying a large amount of information

  • It can display the maximum viscosity value that the rotor can measure at the current speed.

  • Viscosity value shows continuous change

  • There is an alarm sound prompt when the measurement range is exceeded

  • Standard RTD temperature probe

  • Standard two-way RS232 or 485 interface

  • Computer full range linear calibration

  • AC power adapter 100V-240V, good anti-interference

Application

RDV-2+Pro digital viscometer is widely used in ink, glue , latex , solvent-based adhesives , polymer solutions , petroleum , paint coatings , solvents , cosmetics , milk products , medicines , fruit juices , etc.

Pictures

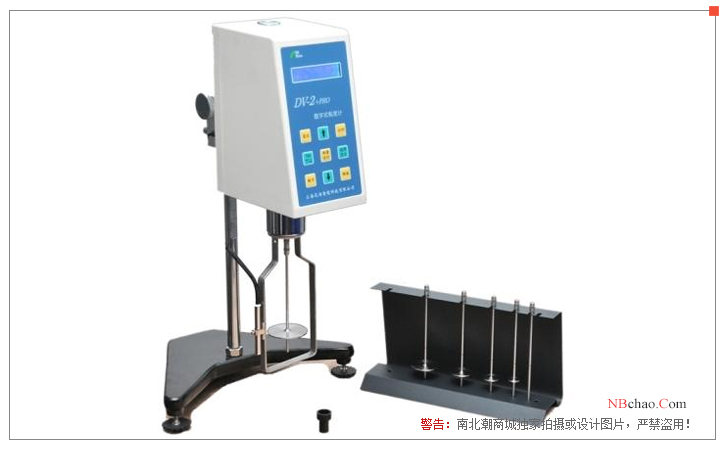

NIRUN RDV-2+Pro digital viscometer display

optional accessories

DV data acquisition and program-controlled analysis software

Special viscosity measurement constant temperature Water Tank

Ultra Low Viscosity Adapter

Small Sample Adapter

standard solution

micro printer

Outer circulation glass beaker

Comparison of DV parameters

modelMeasuring range (mPa.s)Rotor speed
LDVRDVHADVHBDV
DV-1+PRO1-2 million1-13 million2-26 million8-104 million0.3-100
DV-2+PRO1-6 million100-40 million2-80 million800-320 million0.1-200
DV-3+PRO1-6 million20-40 million100-80 million5-320 million0.1-250
DV-E1-2 million1-13 million2-26 million8-104 million0.3-100
Unit: mPa.s, rev/min
Other parameters
Number of rotorsLDV with (1, 2, 3, 4 4 kinds of rotors) (0 rotor is optional)
RDV, HADV, HBDV (6 types of rotors No. 2, 3, 4, 5, 6, 7) (Rotors No. 0 and No. 1 are optional accessories)
measurement accuracy±1.0% (full scale)
repeatability0.50%


FAQ
QDo you have the digital Viscometer involved in JJG1002?
A The RDV-2 + Pro Digital Viscometer will do
QCan this RDV-2 + Pro Viscometer be used for high temperature environment testing?
A Hello, yes, but you need to use high temperature special accessories for matching use, which need to be purchased separately.
QHow does the RDV-2 + Pro Digital Viscometer operate? What is the operation process?
A Hello, the operation instructions of this Viscometer can be viewed by clicking "Operation Manual" on this product page to view the specific operation method.
QExcuse me, there is rust on the rotor, is it still usable?
A Hello, it is not recommended for you to use it, it will affect the measurement accuracy.
