NIRUN HBDV-2 + Pro Digital Viscometer Measurement range 160~32 million cP

SE
Digital display, Measurement range 160~320000000mPa · s, Rotor specifications 2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional), Rotor speed 0.1~ 200rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S.
$3526.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

NiRun HBDV-2+Pro Digital ViscometerSPEC

NiRun HBDV-2+Pro Digital ViscometerDetails

NiRun HBDV-2+Pro Digital ViscometerPacking list

SKU
NB008758
Display
digital display
Measuring range
160~320000000mPa·s
Rotor Specifications
2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional)
Rotor speed
0.1~200rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
AC100-240V，50Hz/60Hz，DC17V1.2A
Data Interface
RS232
Weight
7kg
Encasement material
Five-layer cardboard
Collection method
continuous acquisition
Capacity
300~600ml
Capacity
400 or 800ml (self-provided)
Lifting system
Metal lifting system
Bearing system
ruby
Torque material
beryllium bronze
Control system
microcomputer
software system
Data collection, programming, analysis
temperature probe
PT100 temperature probe
Encasement
aluminum alloy
Speed control method
Continuously variable speed (no gear drive)
HBDV-2+Pro
Digital Viscometer
Digital display, Measurement range 160~320000000mPa · s, Rotor specifications 2 #, 3 #, 4 #, 5 #, 6 #, 7 #(1 #optional), Rotor speed 0.1~ 200rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S.

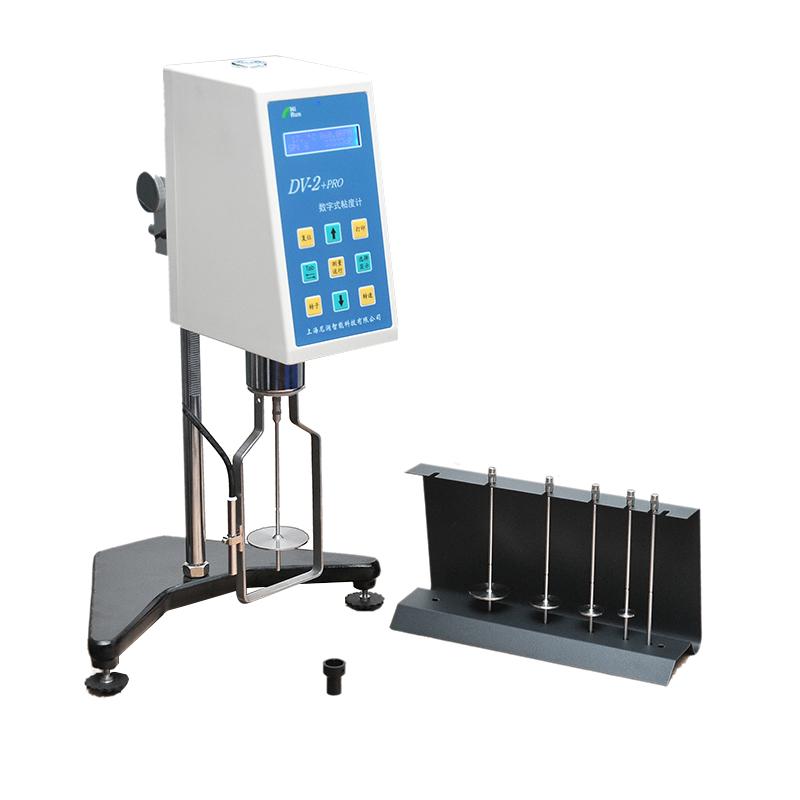

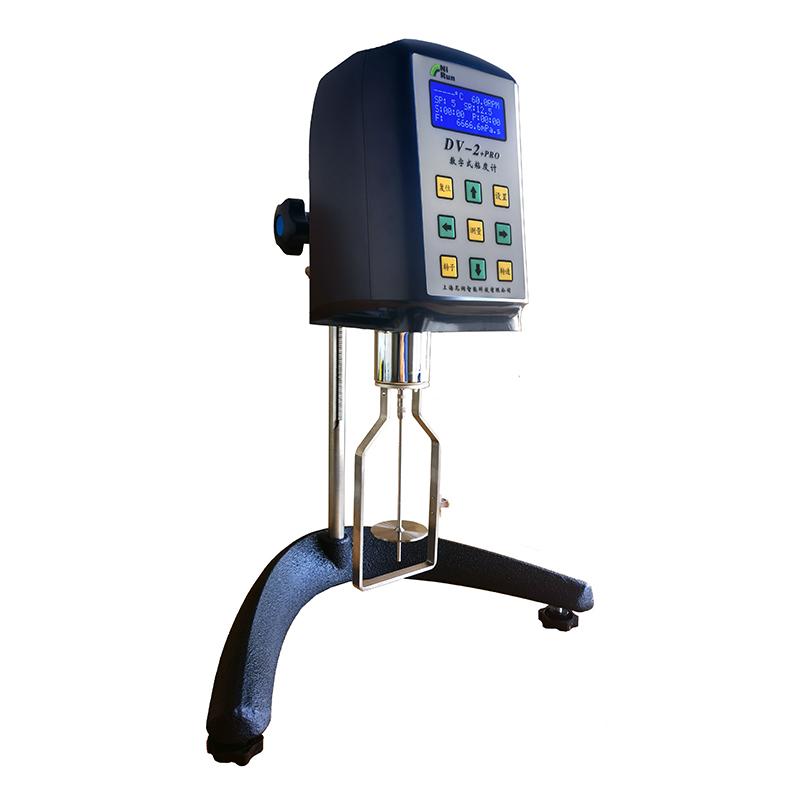

NIRUN HBDV-2 + Pro Digital Viscometer Measurement range 160~32 million cP Picture

technical features

  • Optional DV data acquisition and program control software can measure rheological properties

  • Show Shear Rate and Shear Stress

  • Stepper motor direct drive, no gear, accurate speed

  • LCD liquid crystal with blue backlight, displaying a large amount of information

  • It can display the maximum viscosity value that the rotor can measure at the current speed.

  • Viscosity value shows continuous change

  • There is an alarm sound prompt when the measurement range is exceeded

  • Standard RTD temperature probe

  • Standard two-way RS232 or 485 interface

  • Computer full range linear calibration

  • AC power adapter 100V-240V, good anti-interference

Application

HBDV-2+Pro digital viscometer is widely used in ink, glue , latex , solvent-based adhesives , polymer solutions , petroleum , paint coatings , solvents , cosmetics , milk products , medicines , fruit juices , etc.

Pictures

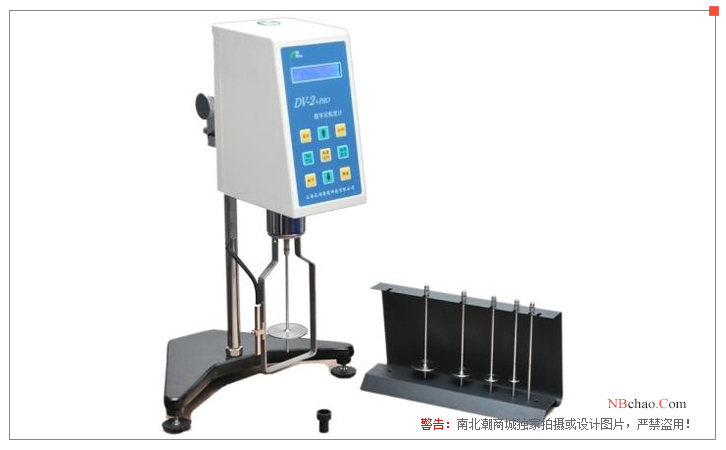

NIRUN HBDV-2+Pro digital viscometer display

optional accessories

DV data acquisition and program-controlled analysis software

Special viscosity measurement constant temperature Water Tank

Ultra Low Viscosity Adapter

Small Sample Adapter

standard solution

micro printer

Outer circulation glass beaker

Comparison of DV parameters

modelMeasuring range (mPa.s)Rotor speed
LDVRDVHADVHBDV
DV-1+PRO1-2 million1-13 million2-26 million8-104 million0.3-100
DV-2+PRO1-6 million100-40 million2-80 million800-320 million0.1-200
DV-3+PRO1-6 million20-40 million100-80 million5-320 million0.1-250
DV-E1-2 million1-13 million2-26 million8-104 million0.3-100
Unit: mPa.s, rev/min
Other parameters
Number of rotorsLDV with (1, 2, 3, 4 4 kinds of rotors) (0 rotor is optional)
RDV, HADV, HBDV (6 types of rotors No. 2, 3, 4, 5, 6, 7) (Rotors No. 0 and No. 1 are optional accessories)
measurement accuracy±1.0% (full scale)
repeatability0.50%


FAQ
QCan the NIRUN HBDV-2 + Pro Digital Viscometer meet the JJG1002 standard?
A Applicable, you can consult the customer service of the mall for details about the JJG1002 standard.
