NIRUN FTV-E Economic Starch Viscosity-Tester Rotor speed 0.1~ 200rpm

SE
Digital display, Measurement range 50~1000000mPa · s, rotor specification 1 F1 rotor, Rotor speed 0.1~ 200rpm, reproducibility +/- 1% F.S, Measurement accuracy +/- 2% F.S, Interface RS232, application standard GB/T2 2427.7 - 2 0 0 8, GB/T 2485.3 - 2 0 0, capacity 10ml, Temperature range -1~ 150 ℃.
$5715.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

NiRun FDV-E Economic Starch Viscosity-TesterSPEC

NiRun FDV-E Economic Starch Viscosity-TesterDetails

NiRun FDV-E Economic Starch Viscosity-TesterPacking list

SKU
NB008763
Display
digital display
Measuring range
50~1000000mPa·s
Rotor Specifications
1 F1 rotor
Rotor speed
0.1~200rpm
Reproducibility
±1%F.S
Measurement Accuracy
±2%
Data Interface
RS232
Application standard
GB/T22427.7-2008、GB/T2485.3-2010
Capacity
10ml
Temperature range
-1~150℃
Speed control method
CVT
temperature Accuracy
±0.1℃
FDV-E
Economic Starch Viscosity-Tester
Digital display, Measurement range 50~1000000mPa · s, rotor specification 1 F1 rotor, Rotor speed 0.1~ 200rpm, reproducibility +/- 1% F.S, Measurement accuracy +/- 2% F.S, Interface RS232, application standard GB/T2 2427.7 - 2 0 0 8, GB/T 2485.3 - 2 0 0, capacity 10ml, Temperature range -1~ 150 ℃.

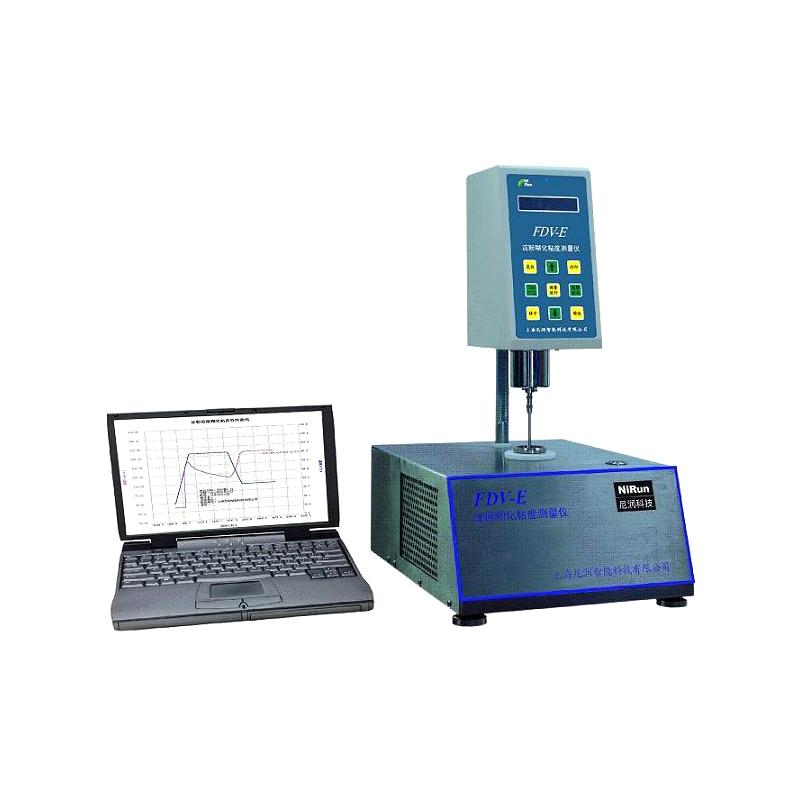

NIRUN FTV-E Economic Starch Viscosity-Tester Rotor speed 0.1~ 200rpm Picture

Features

The viscometer is manually lifted, and the rotor speed of the viscometer is steplessly adjustable (0.1-200 rpm);

Built-in automatic optimization temperature program control (adjustable heating/cooling rate, up to 8 degrees/minute);

One dedicated starch F1 rotor, sample volume 30ml;

Rising/cooling program software control;

Configure DV data acquisition and program-controlled analysis software to manually analyze the evaluation of sample data;

Real-time display: current measured temperature, set temperature, measured viscosity value;

Comply with national standard GB/T22427.7-2008. GB/T2485.3-2010.

Pictures

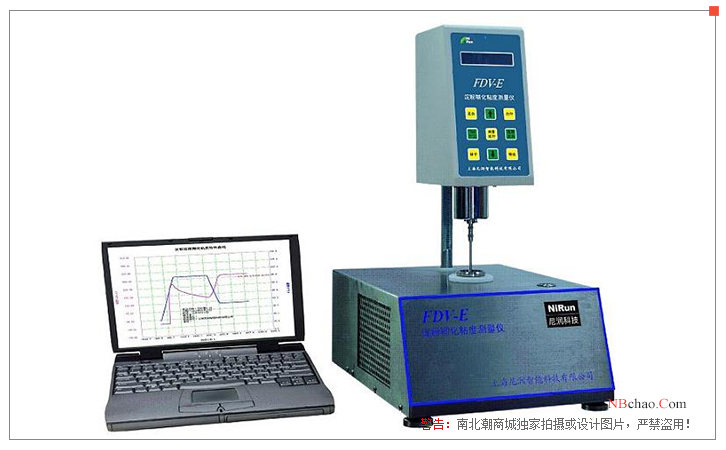

NIRUN FDV-E Economical Starch Viscosity Meter Display

Comparison of parameters of NIRUN starch viscosity measuring instrument series

modelFDV-EFDV-CFDV-T
Measuring range50~1000000mPa·s100~5000mPa·s50~1000000mPa·s
Rotor speed0.1~200 rpm (continuously variable speed)30, 75, 100, 150 rpm (continuously variable speed)0.1~300 rpm (continuously variable speed)
sample size10ml10ml10ml
Number of rotors1 F1 rotor1 F1 rotor1 F1 rotor


FAQ
QIs this economical starch viscosity measurement instrument manually lifted or automatically lifted?
A Hello, this FDV-E starch viscosity measurement instrument is manually lifted.
QCan all economical starch viscosity measurements be used for testing in the GB/T22427.7 standard?
A Not necessarily, but this FDV-E economical starch viscosity measurement instrument can be considered.
QWhat is the difference between FDV-E and FDV-T viscosity measurement instruments?
A Hello, the main difference between the FDV-E and the FDV-T is the rotor speed. The Rotor velocity of the FDV-E is 0.1 to 200 rpm, while the speed of the FDV-T is 0.1 to 300 rpm.
