NIRUN FDV-C simple starch Viscosity Measurement Instrument Viscosity range 100~5000mPa.s

NIRUN FDV-C simple starch Viscosity Measurement Instrument is suitable for the measurement of starch Viscosity value at a single point temperature. The FDV-C simple starch Viscosity Measurement Instrument is equipped with a special starch F1 rotor.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

NiRun FDV-C Viscosity Measurement InstrumentSPEC

NiRun FDV-C Viscosity Measurement InstrumentDetails

NiRun FDV-C Viscosity Measurement InstrumentPacking list

SKU
NB008764
Display
digital display
Measuring range
100~5000mPa·s
Rotor Specifications
1 F1 rotor
Rotor speed
30/75/100/150rpm
Reproducibility
±1%F.S
Measurement Accuracy
±2%
Application standard
GB/T 12098-89
Capacity
10ml
Temperature range
Constant temperature sink control
FDV-C
Viscosity Measurement Instrument

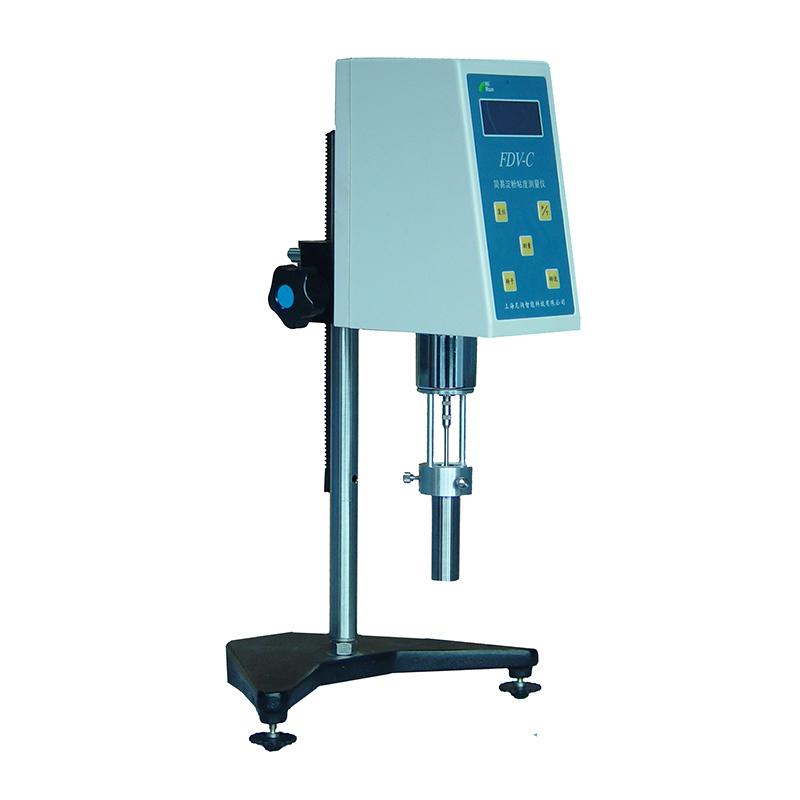

NIRUN FDV-C simple starch Viscosity Measurement Instrument Viscosity range 100~5000mPa.s Picture

Introduction

NIRUN FDV-C simple starch viscosity measuring instrument conforms to the national standard GB/T 12098-89, and is equipped with a special starch F1 rotor, and the temperature is controlled by an optional constant temperature Water Tank.

Features

The starch viscosity value is measured at a single point temperature.

Rotor speed: 30, 75, 100, 150 rpm, 4 gears

Configuration: One dedicated starch F1 rotor, sample volume 10ml, one host, measuring cylinder (SSR system with PT100 temperature probe).

Optional: special constant temperature Water Tank CH-1006N, micro printer.

Pictures

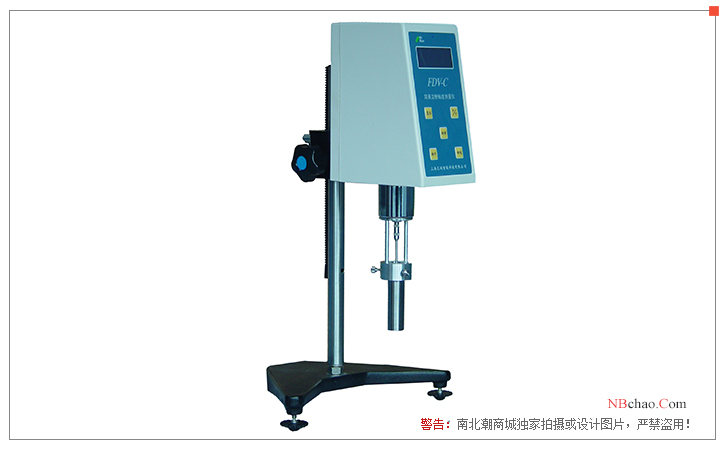

NIRUN FDV-C Simple Starch Viscosity Meter Display

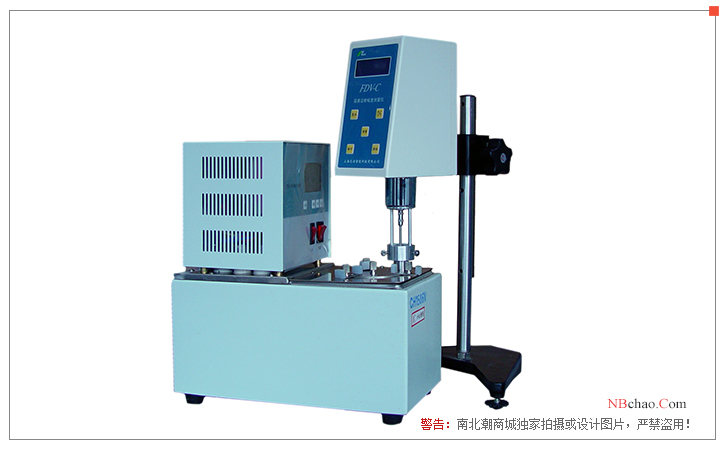

NIRUN FDV-C simple starch viscosity measuring instrument with constant temperature Water Tank display

Comparison of parameters of NIRUN starch viscosity measuring instrument series

modelFDV-EFDV-CFDV-T
Measuring range50~1000000mPa·s100~5000mPa·s50~1000000mPa·s
Rotor speed0.1~200 rpm (continuously variable speed)30, 75, 100, 150 rpm (continuously variable speed)0.1~300 rpm (continuously variable speed)
sample size10ml10ml10ml
Number of rotors1 F1 rotor1 F1 rotor1 F1 rotor
FAQ
QIs this starch Viscometer detecting gelatinization?
A This one is matched with a Thermostatic bath to detect the data after gelatinization.
QTo meet the GB/T22427.7 simple starch viscosity measurement instrument
A FDV-C simple starch viscosity measurement instrument, please refer to it.
QIs the printer with this simple starch viscosity measurement instrument standard or do I need to buy it myself?
A Hello, the micro printer used with the instrument is not a standard product and needs to be purchased separately.
QWhat Thermostat should this FDV-C starch viscosity measurement instrument be equipped with?
A Hello, this Thermostat is a special Thermostat CH-1006N.
