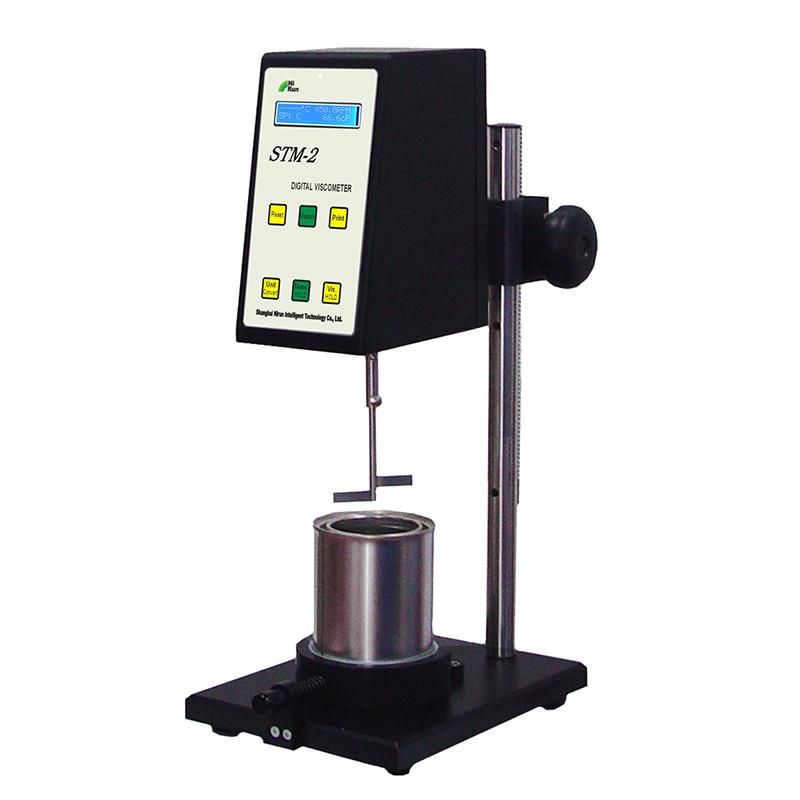

NIRUN STM-2 Digital Stormer Viscometer Viscosity Range 40KU~ 141KU

STM-2

Digital Stormer Viscometer

Digital display type, with KU, g, cP three display units, using knob lift mode, in line with standard ASTM D562, Speed accuracy +/- 0.01rpm.

Introduction

NIRUN STM-2 digital Stormer viscometer is specially used to measure the viscosity of paints, coatings, inks and other testing instruments expressed by KU value) (the technical indicators of this instrument model cover STM-1 to STM-4 Storr on the existing market The technical index of Momo viscometer complies with the international standard ASTMD562.

Technical advantages

1. STM-2 Digital Stormer Viscometer covers the indicators of STM-1 to STM-4 in the existing market

2. Eliminates the need for weights and pulleys, simplifying test procedures

3. The structure design of the manual lifting frame reduces the requirements for the control of the test liquid level

4. Conform to coating industry standard ASTM D562, GB9269

5. Stepper motor direct drive, no gear, accurate speed

6. LCD liquid crystal with blue backlight, displaying a large amount of information

7. Can lock viscosity value, KU value, load value, temperature value

8. Viscosity value shows continuous change

9. There is an alarm sound prompt when the measurement range is exceeded

10. Standard RTD temperature probe

11. Print port with automatic test data output

12. Computer full range linear calibration

13. AC power adapter 100V-240V, good anti-interference

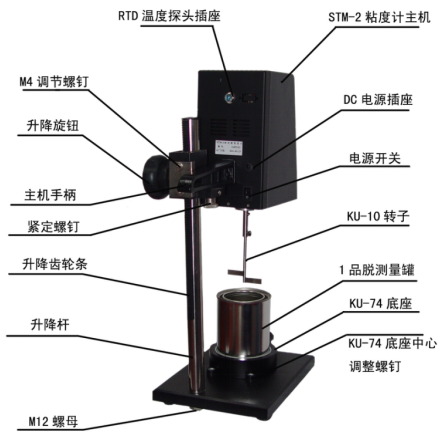

structure diagram

Optional

Special viscosity constant temperature Water Tank

micro printer

SNB Data Acquisition and Graphing Software

standard oil

plan

Packing list：host x1, rotor x1, manual x1, warranty card x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
