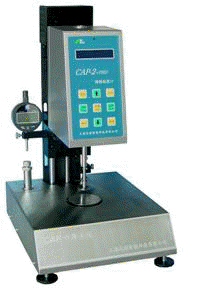

NIRUN CAP-2 + PRO cone-plate viscometer Measurement range 20cP~ 1500000cP

CAP-2+PRO

cone-plate viscometer

Digital display, viscosity range 20~1500000 mPa · s, Rotor speed 5~ 1000rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 2%, Power supply Voltage 110V/220V 50Hz/60Hz, Rotation speed Control mode stepless speed change.

Technical Indicators

A conical rotor is optionally available for the user.

The CAP-1 is a single-speed measurement with user-specifier speed or the CAP-2 can be continuously variable from 5 to 1000 rpm.

Measurement range: 20 cP to 1500,000 cP.

Accuracy: ±2%.

Reproducibility: 0.5% (full scale).

Input Voltage: 110V/220V.

Input frequency: 50Hz/60Hz.

Optional

Micro printer, special viscosity constant temperature Water Tank, standard oil, DV data acquisition and program-controlled analysis software.

Technical advantages:

• Easy-to-use cone plate positioning system.

• Samples are easy to clean.

• Single-speed or continuously variable speed is optional.

• Accurate control of sample temperature.

• Very small amount of sample.

• High shear rate.

• The DV software automatically obtains the rheological curves quickly and easily.

Packing list：host x1, manual x1, warranty card x1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
