NIRUN DV-79 + Pro Digital Viscometer Measurement range 1~ 75 million cP

SE
Display mode: Digital display, Measurement range 1~ 75000000mPa · s, Rotor size 3 (E, F, G rotors) for medium and high viscosity or 4 (A, B, C, D rotors) for low viscosity, Rotor speed 0.1~ 750rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S
$2588.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

NiRun DV-79+Pro Digital ViscometerSPEC

NiRun DV-79+Pro Digital ViscometerDetails

NiRun DV-79+Pro Digital ViscometerPacking list

SKU
NB008770
Display
digital display
Measuring range
1~75000000mPa·s
Rotor Specifications
3 (E, F, G rotors) for medium and high Viscosity or 4 (A, B, C, D rotors) for low Viscosity
Rotor speed
0.1~750rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
110~220V 50Hz/60Hz
Data Interface
RS232
Measurement container
B container
Optional accessories
Microprinter, Viscosity Tank, DV data collection and programmable analysis software, Standard Oil
temperature probe
RTD temperature probe
Temperature range
0~120℃
Speed control method
Continuously variable speed (no gear drive)
DV-79+Pro
Digital Viscometer
Display mode: Digital display, Measurement range 1~ 75000000mPa · s, Rotor size 3 (E, F, G rotors) for medium and high viscosity or 4 (A, B, C, D rotors) for low viscosity, Rotor speed 0.1~ 750rpm, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S

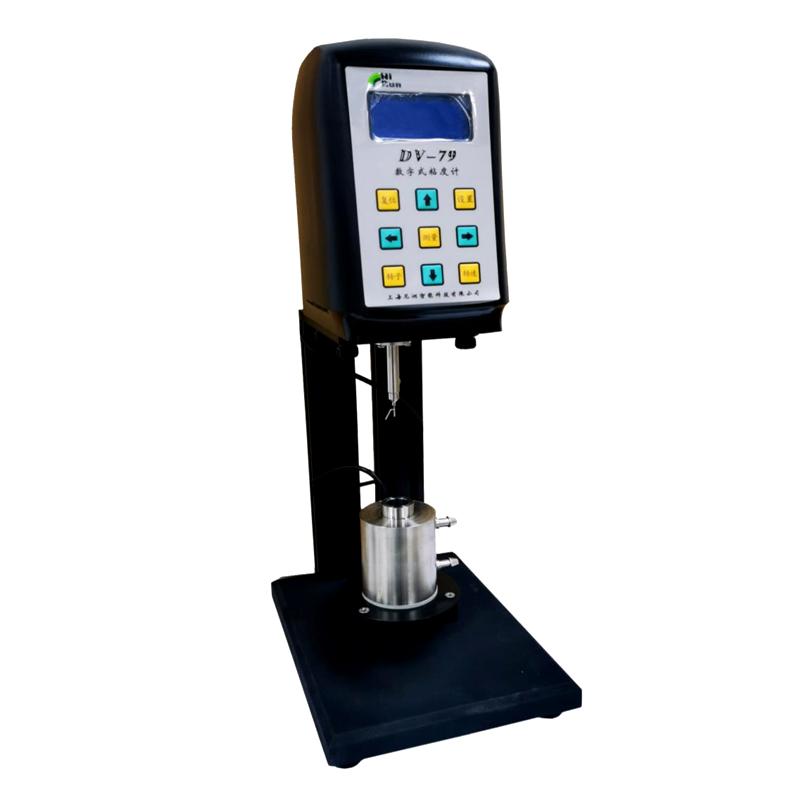

NIRUN DV-79 + Pro Digital Viscometer Measurement range 1~ 75 million cP Picture

Technical advantages

  • Stepper motor direct drive, no gear, accurate speed

  • LCD liquid crystal with blue backlight, displaying a large amount of information

  • It can display the maximum viscosity value that the rotor can measure at the current speed.

  • Measurement Timing Function

  • Viscosity value shows continuous change

  • There is an alarm sound prompt when the measurement range is exceeded

  • Standard RTD temperature probe

  • Computer full range linear calibration

  • AC power adapter 100V-240V, good anti-interference

Applications

DV-79+Pro digital viscometer is widely used in starch, glue , latex , solvent-based adhesives , polymer solutions , petroleum , paint coatings , solvents , cosmetics , milk products , medicines , fruit juices, etc.

Pictures

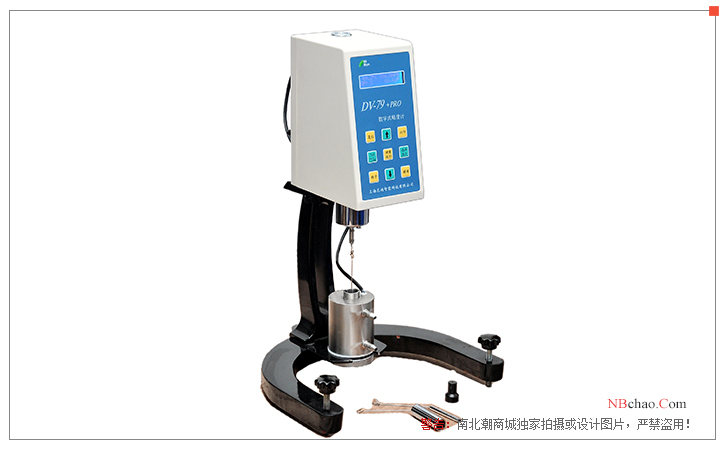

NIRUN DV-79+Pro Rotational Viscometer display

Optional

DV data acquisition and program-controlled analysis software

Special viscosity measurement constant temperature Water Tank

standard solution

micro printer

A container

A, B, C, D rotors

FAQ
QThe difference between container A and container B
A The two viscosities are different Viscosity less than 10mPa.s A container Use B containers beyond this viscosity range
QThis DV-79 + Pro Viscometer can get viscosity-shear rate Linear dispersion
A Yes, it needs to be equipped with DV software.
QHello, I read that your product introduction contains three rotors, E.F.G. What is the viscosity range of these three rotors for measurement?
A Hello! E rotor 10-75 million mPa.s; F Rotor 1-7.5 million mPa.s, G rotor 1000-75 million mPa.s.
QDoes the digital viscosity meter of Nirun DV-79 + Pro have an interface to connect to the printer?
A Hello, yes, it comes standard with RS232 interface, which can be connected to printers and computers.
QCan this Digital Viscometer be applied to JJG1002?
A OK
QWhat rotor does the Digital Viscometer DV-79 + Pro come standard with?
A Hello, Nirun's DV-79 + Pro comes with three rotors, E/F/G.
