YIHENG IT-09C10 Magnetic Stirrer 10L

IT-09C10

Magnetic Stirrer

Max. stirring Capacity 10L, stirring speed 200~1800rpm, Input Power 50w, working disc size 180 * 180mm

Introduction

One constantIT-09C10The maximum stirring capacity of the magnetic stirrer (non-heated) is 10 liters, and the stirring speed is 200~1800rpm. The magnetic stirrer is driven by a micromotor to rotate a high-temperature-resistant strong magnet to generate a rotating magnetic field to drive the stir bar in the container to rotate, so as to stir, mix or assist in heating the liquid in the container, while the solution is fully mixed at the set temperature.IT-09C10Magnetic stirrers are widely used in the fields of chemistry, biology and so on.

Features and advantages

● LCD screen, menu-type operation interface, temperature, speed and countdown and other parameters are displayed on one screen, which is simple and easy to understand, easy to observe and operate.

● With microcomputer control technology, it ensures that the speed of stirring viscosity is kept constant under the condition of changing viscosity.

● Aluminum alloy die-cast shell, with high temperature resistance, corrosion resistance and easy cleaning.

● The table top is made of aluminum alloy material, and the external spray enamel material has good thermal conductivity effect, but also has corrosion resistance, and the smooth mixing table is easy to clean without contaminants staying.

● The output torque is large, which is suitable for stirring solutions with low viscosity and large capacity or high viscosity and small capacity. (Different models and different volumes)

● The top of the control panel is designed with an anti-corrosion liquid guide tank, which will not cause damage to the electronic components in the IT-09C10 stirrer even if the liquid overflows during the stirring process.

Classification of agitators

Magnetic stirrers are divided into three categories: constant temperature magnetic stirrer, heated magnetic stirrer, and magnetic stirrer, among which IT-09C10A magnetic stirrer is a type of magnetic stirrer.

Magnetic Stirrer: IT-09C has no heating function.

Constant temperature magnetic stirrer: IT-07A, IT-09A series of external temperature sensors, which can directly measure and control the temperature of the liquid in the container, and control the temperature accurately and reliably.

Heating magnetic stirrer: IT-07B, IT-09B series heating table can reach a maximum temperature of 450°C.

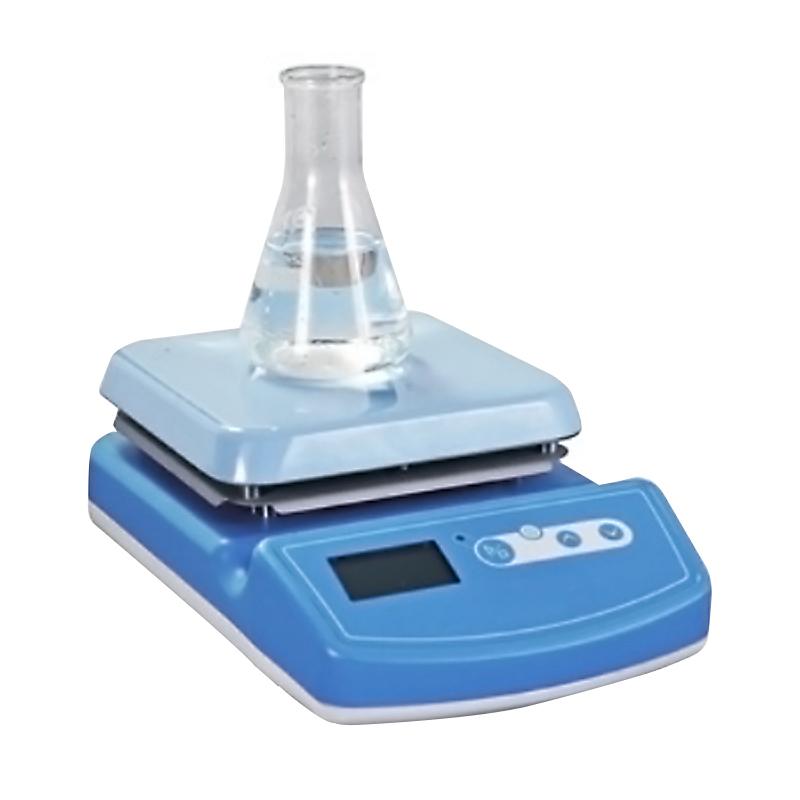

Actual picture of the product

Packing list：host x1, power cord x1, outer thermostat x1, bracket rod x1, connecting rod x1, adjusting rod x1, locking screw x2, extension rod x1, bolt x1, stirrer x1, fuse x2, instruction manual x1, warranty x1, warranty card x1, packing list x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
